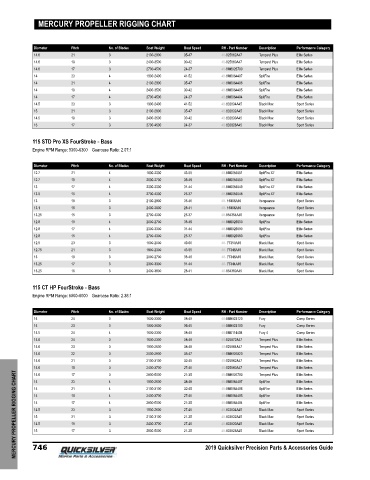

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 21 3 2100-2900 35-47 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2400-3500 30-42 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2700-4500 24-37 48-8M8026790 Tempest Plus Elite Series
14 23 4 1900-2400 41-52 48-8M0084497 SpitFire Elite Series
14 21 4 2100-2900 35-47 48-8M0084496 SpitFire Elite Series
14 19 4 2400-3500 30-42 48-8M0084495 SpitFire Elite Series
14 17 4 2700-4500 24-37 48-8M0084494 SpitFire Elite Series
14.5 23 3 1900-2400 41-52 48-832834A45 Black Max Sport Series
15 21 3 2100-2900 35-47 48-832832A45 Black Max Sport Series
14.5 19 3 2400-3500 30-42 48-832830A45 Black Max Sport Series
15 17 3 2700-4500 24-37 48-832828A45 Black Max Sport Series

115 STD Pro XS FourStroke ‑ Bass
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2300 43-55 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 2000-2700 38-49 48-8M0055550 SpitFire X7 Elite Series
13 17 4 2300-3300 31-44 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2700-4300 25-37 48-8M0055548 SpitFire X7 Elite Series
13 18 3 2100-2900 35-46 48- 16988A46 Vengeance Sport Series
13.1 16 3 2400-3800 28-41 48- 16986A46 Vengeance Sport Series
13.25 15 3 2700-4300 25-37 48-854354A46 Vengeance Sport Series
12.8 19 4 2000-2700 38-49 48-8M8026600 SpitFire Elite Series
12.8 17 4 2300-3300 31-44 48-8M8026590 SpitFire Elite Series
12.8 15 4 2700-4300 25-37 48-8M8026580 SpitFire Elite Series
12.5 23 3 1600-2000 49-60 48- 77350A45 Black Max Sport Series
12.75 21 3 1800-2300 43-55 48- 77348A45 Black Max Sport Series
13 19 3 2000-2700 38-49 48- 77346A45 Black Max Sport Series
13.25 17 3 2300-3300 31-44 48- 77344A45 Black Max Sport Series
13.25 16 3 2400-3800 28-41 48-854360A45 Black Max Sport Series

115 CT HP FourStroke ‑ Bass
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 24 3 1600-2300 38-49 48-8M8023120 Fury Comp Series
14 23 3 1900-2600 36-45 48-8M8023100 Fury Comp Series
14.5 24 4 1600-2300 38-49 48-8M0114408 Fury 4 Comp Series
14.6 24 3 1600-2300 38-49 48-825872A47 Tempest Plus Elite Series
14.6 23 3 1900-2600 38-49 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2000-2800 35-47 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2100-3100 32-45 48-825862A47 Tempest Plus Elite Series
14.6 19 3 3 4 4 2400-3700 27-40 48-825860A47 Tempest Plus Elite Series
MERCURY PROPELLER RIGGING CHART 746 19 4 4 3 3 3 3 2400-3700 27-40 2019 Quicksilver Precision Parts & Accessories Guide
Elite Series
17
14.6
2800-5000
48-8M8026790
21-35
Tempest Plus
1900-2600
14
Elite Series
23
38-49
SpitFire
48-8M0084497
SpitFire
32-45
2100-3100
14
Elite Series
21
48-8M0084496
14
Elite Series
48-8M0084495
SpitFire
48-8M0084494
21-35
SpitFire
17
Elite Series
14
2800-5000
Sport Series
48-832834A45
Black Max
27-40
14.5
23
1900-2600
Black Max
21
2100-3100
21-35
Sport Series
48-832832A45
15
Sport Series
Black Max
14.5
27-40
2400-3700
19
48-832830A45
Sport Series
21-35
48-832828A45
17
Black Max
2800-5000
15
