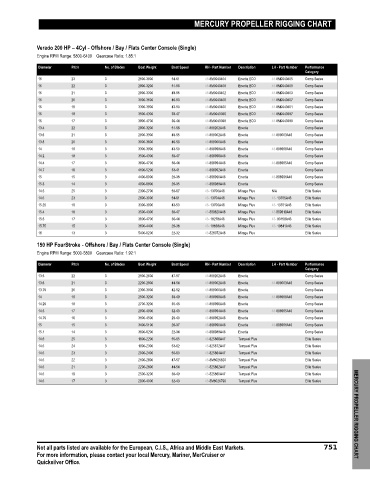

Page 758 - Quicksilver Accesories Guide 2019

MERCURY PROPELLER RIGGING CHART

Verado 200 HP – 4Cyl ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
16 23 3 2600-3000 54-61 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16 22 3 2800-3200 51-58 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16 21 3 2900-3300 49-55 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16 20 3 3000-3600 46-53 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16 19 3 3300-3900 43-50 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16 18 3 3500-4300 39-47 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16 17 3 3800-4700 36-44 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
13.4 22 3 2800-3200 51-58 48-899202A46 Enertia Comp Series
13.6 21 3 2900-3300 49-55 48-899002A46 Enertia 48-899003A46 Comp Series
13.8 20 3 3000-3600 46-53 48-899000A46 Enertia Comp Series
14 19 3 3300-3900 43-50 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 3500-4300 39-47 48-898996A46 Enertia Comp Series
14.4 17 3 3800-4700 36-44 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 4100-5200 33-41 48-898992A46 Enertia Comp Series
15 15 3 4400-6000 29-38 48-898990A46 Enertia 48-898991A46 Comp Series
15.3 14 3 4900-6800 26-35 48-898988A46 Enertia Comp Series
14.5 25 3 2300-2700 59-67 48- 13706A46 Mirage Plus N/A Elite Series
14.6 23 3 2600-3000 54-61 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
15.25 19 3 3300-3900 43-50 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.4 18 3 3500-4300 39-47 48-889620A46 Mirage Plus 48-889619A46 Elite Series
15.5 17 3 3800-4700 36-44 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75 15 3 3600-4400 29-38 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
16 13 3 5400-8200 22-32 48-826072A46 Mirage Plus Elite Series
150 HP FourStroke ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.5 22 3 2100-2600 47-57 48-899202A46 Enertia Comp Series
13.6 21 3 2200-2800 44-54 48-899002A46 Enertia 48-899003A46 Comp Series
13.75 20 3 2300-3000 42-52 48-899000A46 Enertia Comp Series
14 19 3 2500-3200 39-49 48-898998A46 Enertia 48-898999A46 Comp Series
14.25 18 3 2700-3200 35-46 48-898996A46 Enertia Comp Series
14.5 17 3 2900-4000 32-43 48-898994A46 Enertia 48-898995A46 Comp Series
14.75 16 3 3100-4500 29-40 48-898992A46 Enertia Comp Series
15 15 3 3400-5100 26-37 48-898990A46 Enertia 48-898991A46 Comp Series
15.1 14 3 3800-6200 22-34 48-898988A46 Enertia Comp Series
14.6 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.6 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.6 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 751 MERCURY PROPELLER RIGGING CHART
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
