Page 755 - Quicksilver Accesories Guide 2019

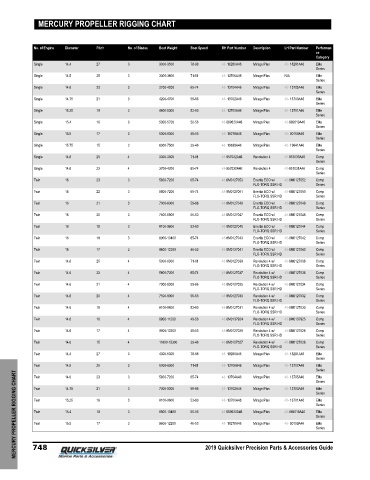

MERCURY PROPELLER RIGGING CHART

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performan
ce
Category
Single 14.4 27 3 3000-3500 78-88 48- 18280A46 Mirage Plus 48- 18281A46 Elite
Series
Single 14.5 25 3 3300-3800 71-81 48- 13706A46 Mirage Plus N/A Elite
Series
Single 14.6 23 3 3700-4200 65-74 48- 13704A46 Mirage Plus 48- 13705A46 Elite
Series
Single 14.75 21 3 4200-4700 59-66 48- 13702A46 Mirage Plus 48- 13703A46 Elite
Series
Single 15.25 19 3 4600-5300 53-60 48- 13700A46 Mirage Plus 48- 13701A46 Elite
Series
Single 15.4 18 3 5000-5700 50-56 48-889620A46 Mirage Plus 48-889619A46 Elite
Series
Single 15.5 17 3 5300-6300 46-53 48- 18278A46 Mirage Plus 48- 90159A46 Elite
Series
Single 15.75 15 3 6300-7500 39-46 48- 19838A46 Mirage Plus 48- 19841A46 Elite
Series
Single 14.6 25 4 3300-3800 71-81 48-857032A46 Revolution 4 48-857033A46 Comp
Series
Single 14.6 23 4 3700-4200 65-74 48-857030A46 Revolution 4 48-857031A46 Comp
Series
Twin 16 23 3 5800-7200 65-74 48-8M0127053 Enertia ECO w/ 48-8M0127052 Comp
FLO-TORQ SSR HD Series
Twin 16 22 3 5800-7200 65-74 48-8M0127051 Enertia ECO w/ 48-8M0127050 Comp
FLO-TORQ SSR HD Series
Twin 16 21 3 7000-8300 59-66 48-8M0127049 Enertia ECO w/ 48-8M0127048 Comp
FLO-TORQ SSR HD Series
Twin 16 20 3 7500-8900 56-63 48-8M0127047 Enertia ECO w/ 48-8M0127046 Comp
FLO-TORQ SSR HD Series
Twin 16 19 3 8100-9600 53-60 48-8M0127045 Enertia ECO w/ 48-8M0127044 Comp
FLO-TORQ SSR HD Series
Twin 16 18 3 8900-10400 65-74 48-8M0127043 Enertia ECO w/ 48-8M0127042 Comp
FLO-TORQ SSR HD Series
Twin 16 17 3 9600-12200 46-53 48-8M0127041 Enertia ECO w/ 48-8M0127040 Comp
FLO-TORQ SSR HD Series
Twin 14.6 25 4 5000-6300 71-81 48-8M0127039 Revolution 4 w/ 48-8M0127038 Comp
FLO-TORQ SSR HD Series
Twin 14.6 23 4 5800-7200 65-74 48-8M0127037 Revolution 4 w/ 48-8M0127036 Comp
FLO-TORQ SSR HD Series
Twin 14.6 21 4 7000-8300 59-66 48-8M0127035 Revolution 4 w/ 48-8M0127034 Comp
FLO-TORQ SSR HD Series
Twin 14.6 20 4 7500-8900 56-63 48-8M0127033 Revolution 4 w/ 48-8M0127032 Comp
FLO-TORQ SSR HD Series
Twin 14.6 19 4 8100-9600 53-60 48-8M0127031 Revolution 4 w/ 48-8M0127030 Comp
FLO-TORQ SSR HD Series
Twin 14.6 18 4 8900-11200 49-56 48-8M0137924 Revolution 4 w/ 48-8M0137925 Comp
FLO-TORQ SSR HD Series
Twin 14.6 17 4 9600-12200 46-53 48-8M0127029 Revolution 4 w/ 48-8M0127028 Comp
FLO-TORQ SSR HD Series
Twin 14.6 15 4 11600-15300 39-46 48-8M0127027 Revolution 4 w/ 48-8M0127026 Comp
FLO-TORQ SSR HD Series
Twin 14.4 27 3 4300-5300 78-88 48- 18280A46 Mirage Plus 48- 18281A46 Elite
Series
Twin 14.5 25 3 5000-6300 71-81 48- 13706A46 Mirage Plus 48- 13707A46 Elite
Series
MERCURY PROPELLER RIGGING CHART 748 15.25 19 3 3 3 8100-9600 53-60 2019 Quicksilver Precision Parts & Accessories Guide
Elite
48- 13705A46
Mirage Plus
3
5800-7200
65-74
Twin
14.6
23
48- 13704A46
Series
48- 13702A46
3
48- 13703A46
Twin
Elite
21
14.75
Mirage Plus
7000-8300
59-66
Series
Mirage Plus
48- 13700A46
Elite
Twin
48- 13701A46
Series
50-56
Twin
48-889620A46
15.4
Mirage Plus
48-889619A46
Elite
8900-10400
18
Series
Elite
17
15.5
Mirage Plus
48- 90159A46
46-53
48- 18278A46
9600-12200
Twin
Series
