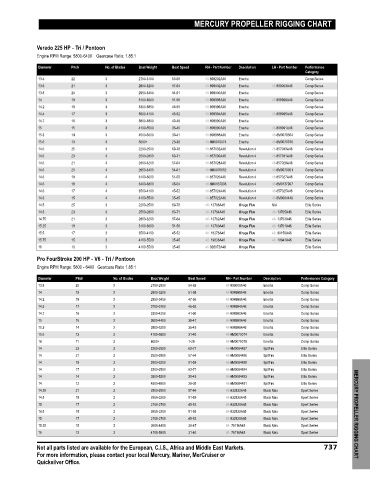

MERCURY PROPELLER RIGGING CHART

Verado 225 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.4 22 3 2700-3100 60-68 48-899202A46 Enertia Comp Series
13.6 21 3 2800-3200 57-64 48-899002A46 Enertia 48-899003A46 Comp Series
13.8 20 3 2950-3400 54-61 48-899000A46 Enertia Comp Series
14 19 3 3100-3600 51-58 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 3300-3850 48-55 48-898996A46 Enertia Comp Series
14.4 17 3 3500-4100 45-52 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 3800-4800 40-49 48-898990A46 Enertia Comp Series
15 15 3 4100-5500 35-45 48-898990A46 Enertia 48-898991A46 Comp Series
15.3 14 3 4500-6000 30-41 48-898988A46 Enertia 48-8M0079504 Comp Series
15.6 13 3 5000+ 25-38 48-8M0070074 Enertia 48-8M0070076 Comp Series
14.6 25 4 2200-2500 69-78 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.6 23 4 2500-2800 63-71 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.6 21 4 2800-3200 57-64 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.6 20 4 2950-3400 54-61 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.6 19 4 3100-3600 51-58 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.6 18 4 3400-3800 48-54 48-8M0137906 Revolution 4 48-8M0137907 Comp Series
14.6 17 4 3500-4100 45-52 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.6 15 4 4100-5500 35-45 48-857022A46 Revolution 4 48-8M0064449 Comp Series
14.5 25 3 2200-2500 69-78 48- 13706A46 Mirage Plus N/A Elite Series
14.6 23 3 2500-2800 63-71 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
14.75 21 3 2800-3200 57-64 48- 13702A46 Mirage Plus 48- 13703A46 Elite Series
15.25 19 3 3100-3600 51-58 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.5 17 3 3500-4100 45-52 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75 15 3 4100-5500 35-45 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
16 13 3 4100-5500 35-45 48-826072A46 Mirage Plus Elite Series

Pro FourStroke 200 HP ‑ V6 ‑ Tri / Pontoon
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.8 20 3 2750-2950 54-63 48-899000A46 Enertia Comp Series
14 19 3 2800-3200 51-58 48-898998A46 Enertia Comp Series
14.2 18 3 2950-3450 47-55 48-898996A46 Enertia Comp Series
14.5 17 3 3100-3700 45-52 48-898994A46 Enertia Comp Series
14.7 16 3 3350-4250 41-50 48-898992A46 Enertia Comp Series
15 15 3 3600-4400 38-47 48-898990A46 Enertia Comp Series
15.3 14 3 3900-5200 35-43 48-898988A46 Enertia Comp Series
15.6 13 3 4100-5800 31-40 48-8M0070074 Enertia Comp Series
16 11 3 6000+ 1-29 48-8M0070079 Enertia Comp Series
14 23 3 2200-2500 63-71 48-8M0084497 SpitFire Elite Series
14 21 3 2500-2800 57-64 48-8M0084496 SpitFire Elite Series
14 19 3 2800-3200 51-58 48-8M0084495 SpitFire Elite Series
14 17 3 2200-2500 63-71 48-8M0084494 SpitFire Elite Series
14 14 3 3900-5200 35-43 48-8M0084493 SpitFire Elite Series
14 12 3 4900-6800 26-35 48-8M0084491 SpitFire Elite Series
14.25 21 3 2500-2800 57-64 48-832832A45 Black Max Sport Series
14.5 19 3 2800-3200 51-58 48-832830A45 Black Max Sport Series
15 17 3 3100-3700 45-52 48-832828A45 Black Max Sport Series
14.5 19 3 2800-3200 51-58 48-832830A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
15 17 3 3100-3700 45-52 48-832828A45 Black Max Sport Series
15.25 15 3 3600-4400 38-47 48- 78116A45 Black Max Sport Series
16 13 3 4100-5800 31-40 48- 78114A45 Black Max Sport Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 737
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
