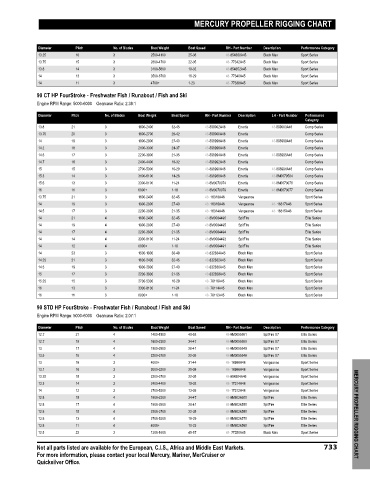

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.25 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series
13.75 15 3 2800-4700 22-35 48- 77342A45 Black Max Sport Series
13.8 14 3 3100-5600 19-32 48-854352A45 Black Max Sport Series
14 13 3 3500-6700 16-29 48- 77340A45 Black Max Sport Series
14 11 3 4700+ 1-23 48- 77338A45 Black Max Sport Series
90 CT HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.8 21 3 1600-2400 32-45 48-899002A46 Enertia 48-899003A46 Comp Series
13.75 20 3 1800-2700 29-42 48-899000A46 Enertia Comp Series
14 19 3 1900-2900 27-40 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 2100-3300 24-37 48-898996A46 Enertia Comp Series
14.5 17 3 2200-3900 21-35 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 2400-4400 19-32 48-898992A46 Enertia Comp Series
15 15 3 2700-5300 16-29 48-898990A46 Enertia 48-898991A46 Comp Series
15.3 14 3 3100-6100 14-26 48-898988A46 Enertia 48-8M0079504 Comp Series
15.6 13 3 3300-8100 11-24 48-8M0070074 Enertia 48-8M0070076 Comp Series
16 11 3 6000+ 1-18 48-8M0070079 Enertia 48-8M0070077 Comp Series
13.75 21 3 1600-2400 32-45 48- 16318A46 Vengeance Sport Series
14 19 3 1900-2900 27-40 48- 16316A46 Vengeance 48- 16317A46 Sport Series
14.5 17 3 2200-3900 21-35 48- 16314A46 Vengeance 48- 16315A46 Sport Series
14 21 4 1600-2400 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 1900-2900 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2200-3900 21-35 48-8M0084494 SpitFire Elite Series
14 14 4 3300-8100 11-24 48-8M0084493 SpitFire Elite Series
14 12 4 6000+ 1-18 48-8M0084491 SpitFire Elite Series
14 23 3 1500-1900 38-49 48-832834A45 Black Max Sport Series
14.25 21 3 1600-2400 32-45 48-832832A45 Black Max Sport Series
14.5 19 3 1900-2900 27-40 48-832830A45 Black Max Sport Series
15 17 3 2200-3900 21-35 48-832828A45 Black Max Sport Series
15.25 15 3 2700-5300 16-29 48- 78116A45 Black Max Sport Series
16 13 3 3300-8100 11-24 48- 78114A45 Black Max Sport Series
16 11 3 6000+ 1-18 48- 78112A45 Black Max Sport Series

90 STD HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1400-1900 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 1600-2300 34-47 48-8M0055550 SpitFire X7 Elite Series
13 17 4 1800-2800 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2200-3700 22-35 48-8M0055548 SpitFire X7 Elite Series
13 18 3 4000+ 31-44 48- 16988A46 Vengeance Sport Series
13.1 16 3 2000-3200 25-38 48- 16986A46 Vengeance Sport Series
13.25 15 3 2200-3700 22-35 48-854354A46 Vengeance Sport Series
13.3 14 3 2400-4400 19-32 48- 17314A46 Vengeance Sport Series
14 12 3 2700-5300 13-26 48- 17312A46 Vengeance Sport Series
12.8 19 4 1600-2300 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 1800-2800 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 2200-3700 22-35 48-8M8026580 SpitFire Elite Series MERCURY PROPELLER RIGGING CHART
13.8 13 4 2700-5300 16-29 48-8M8026570 SpitFire Elite Series
13.8 11 4 4000+ 10-23 48-8M8026560 SpitFire Elite Series
12.5 23 3 1300-1600 45-57 48- 77350A45 Black Max Sport Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 733
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
