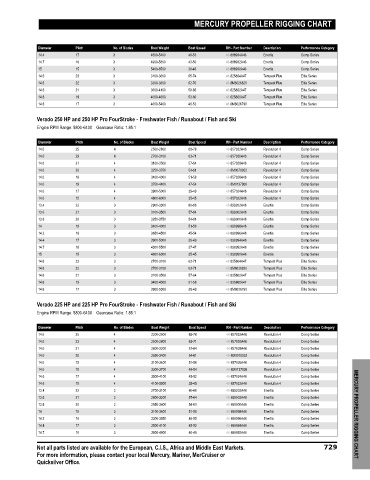

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.4 17 3 4600-5400 46-53 48-898994A46 Enertia Comp Series
14.7 16 3 4900-5800 43-50 48-898992A46 Enertia Comp Series
15 15 3 5400-6500 39-46 48-898990A46 Enertia Comp Series
14.6 23 3 3100-3600 65-74 48-825864A47 Tempest Plus Elite Series
14.6 22 3 3300-3800 62-70 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 3600-4100 59-66 48-825862A47 Tempest Plus Elite Series
14.6 19 3 4000-4600 53-60 48-825860A47 Tempest Plus Elite Series
14.6 17 3 4600-5400 46-53 48-8M8026790 Tempest Plus Elite Series

Verado 250 HP and 250 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 25 4 2500-2800 69-78 48-857032A46 Revolution 4 Comp Series
14.6 23 4 2700-3100 63-71 48-857030A46 Revolution 4 Comp Series
14.6 21 4 3100-3500 57-64 48-857028A46 Revolution 4 Comp Series
14.6 20 4 3250-3750 54-61 48-8M0070052 Revolution 4 Comp Series
14.6 19 4 3400-4000 51-58 48-857026A46 Revolution 4 Comp Series
14.6 18 4 3750-4400 47-54 48-8M0137906 Revolution 4 Comp Series
14.6 17 4 3900-5000 39-49 48-857024A46 Revolution 4 Comp Series
14.6 15 4 4600-6000 35-45 48-857022A46 Revolution 4 Comp Series
13.4 22 3 2900-3300 60-68 48-899202A46 Enertia Comp Series
13.6 21 3 3100-3500 57-64 48-899002A46 Enertia Comp Series
13.8 20 3 3250-3750 54-61 48-899000A46 Enertia Comp Series
14 19 3 3400-4000 51-58 48-898998A46 Enertia Comp Series
14.2 18 3 3650-4500 45-54 48-898996A46 Enertia Comp Series
14.4 17 3 3900-5000 39-49 48-898994A46 Enertia Comp Series
14.7 16 3 4300-5500 37-47 48-898992A46 Enertia Comp Series
15 15 3 4600-6000 35-45 48-898990A46 Enertia Comp Series
14.6 23 3 2700-3100 63-71 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2700-3100 63-71 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 3100-3500 57-64 48-825862A47 Tempest Plus Elite Series
14.6 19 3 3400-4000 51-58 48-825860A47 Tempest Plus Elite Series
14.6 17 3 3900-5000 39-49 48-8M8026790 Tempest Plus Elite Series

Verado 225 HP and 225 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 25 4 2200-2500 69-78 48-857032A46 Revolution 4 Comp Series
14.6 23 4 2500-2800 63-71 48-857030A46 Revolution 4 Comp Series
14.6 21 4 2800-3200 57-64 48-857028A46 Revolution 4 Comp Series
14.6 20 4 2950-3400 54-61 48-8M0070052 Revolution 4 Comp Series
14.6 19 4 3100-3600 51-58 48-857026A46 Revolution 4 Comp Series
14.6 18 4 3300-3700 48-54 48-8M0137906 Revolution 4 Comp Series
14.6 17 4 3500-4100 45-52 48-857024A46 Revolution 4 Comp Series
14.6 15 4 4100-5500 35-45 48-857022A46 Revolution 4 Comp Series
13.4 22 3 2700-3100 60-68 48-899202A46 Enertia Comp Series
13.6 21 3 2800-3200 57-64 48-899002A46 Enertia Comp Series
13.8 20 3 2950-3400 54-61 48-899000A46 Enertia Comp Series
14 19 3 3100-3600 51-58 48-898998A46 Enertia Comp Series MERCURY PROPELLER RIGGING CHART
14.2 18 3 3300-3850 48-55 48-898996A46 Enertia Comp Series
14.4 17 3 3500-4100 45-52 48-898994A46 Enertia Comp Series
14.7 16 3 3800-4800 40-49 48-898992A46 Enertia Comp Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 729
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
