Page 739 - Quicksilver Accesories Guide 2019

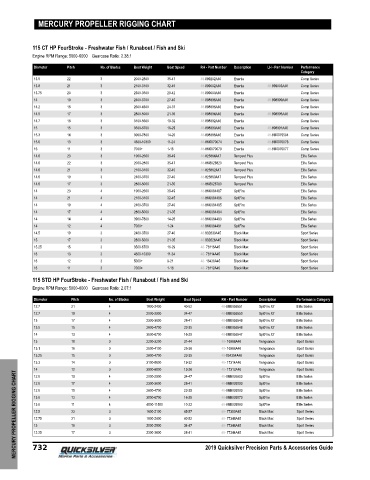

MERCURY PROPELLER RIGGING CHART

115 CT HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.5 22 3 2000-2800 35-47 48-899202A46 Enertia Comp Series
13.8 21 3 2100-3100 32-45 48-899002A46 Enertia 48-899003A46 Comp Series
13.75 20 3 2300-3500 29-42 48-899000A46 Enertia Comp Series
14 19 3 2400-3700 27-40 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 2600-4300 24-37 48-898996A46 Enertia Comp Series
14.5 17 3 2800-5000 21-35 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 3100-5600 19-32 48-898992A46 Enertia Comp Series
15 15 3 3500-6700 16-29 48-898990A46 Enertia 48-898991A46 Comp Series
15.3 14 3 3900-7800 14-26 48-898988A46 Enertia 48-8M0079504 Comp Series
15.6 13 3 4300-10300 11-24 48-8M0070074 Enertia 48-8M0070076 Comp Series
16 11 3 7000+ 1-18 48-8M0070079 Enertia 48-8M0070077 Comp Series
14.6 23 3 1900-2600 38-49 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2000-2800 35-47 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2100-3100 32-45 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2400-3700 27-40 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2800-5000 21-35 48-8M8026790 Tempest Plus Elite Series
14 23 4 1900-2600 38-49 48-8M0084497 SpitFire Elite Series
14 21 4 2100-3100 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 2400-3700 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2800-5000 21-35 48-8M0084494 SpitFire Elite Series
14 14 4 3900-7800 14-26 48-8M0084493 SpitFire Elite Series
14 12 4 7000+ 1-24 48-8M0084491 SpitFire Elite Series
14.5 19 3 2400-3700 27-40 48-832830A45 Black Max Sport Series
15 17 3 2800-5000 21-35 48-832828A45 Black Max Sport Series
15.25 15 3 3500-6700 16-29 48- 78116A45 Black Max Sport Series
16 13 3 4300-10300 11-24 48- 78114A45 Black Max Sport Series
16 12 3 5000+ 9-21 48- 16436A45 Black Max Sport Series
16 11 3 7000+ 1-18 48- 78112A45 Black Max Sport Series
115 STD HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2400 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 2000-2900 34-47 48-8M0055550 SpitFire X7 Elite Series
13 17 4 2300-3600 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2800-4700 22-35 48-8M0055548 SpitFire X7 Elite Series
14 13 4 3500-6700 16-29 48-8M0055547 SpitFire X7 Elite Series
13 18 3 2200-3200 31-44 48- 16988A46 Vengeance Sport Series
13.1 16 3 2500-4100 25-38 48- 16986A46 Vengeance Sport Series
13.25 15 3 2800-4700 22-35 48-854354A46 Vengeance Sport Series
13.3 14 3 3100-5600 19-32 48- 17314A46 Vengeance Sport Series
14 12 3 4 4 4 3900-8500 13-26 48- 17312A46 Vengeance Sport Series
MERCURY PROPELLER RIGGING CHART 732 13 4 4 3 3 3 3 3500-6700 16-29 2019 Quicksilver Precision Parts & Accessories Guide
Elite Series
19
34-47
48-8M8026600
2000-2900
SpitFire
12.8
12.8
28-41
2300-3600
SpitFire
48-8M8026590
Elite Series
17
2800-4700
22-35
12.8
SpitFire
48-8M8026580
Elite Series
15
Elite Series
13.8
48-8M8026570
SpitFire
48-8M8026560
10-23
SpitFire
4500-11500
Elite Series
11
13.8
Black Max
Sport Series
48- 77350A45
1600-2100
45-57
12.5
23
40-52
1800-2400
Black Max
21
48- 77348A45
12.75
Sport Series
13
34-47
Black Max
Sport Series
48- 77346A45
2000-2900
19
Sport Series
2300-3600
17
13.25
Black Max
48- 77344A45
28-41
