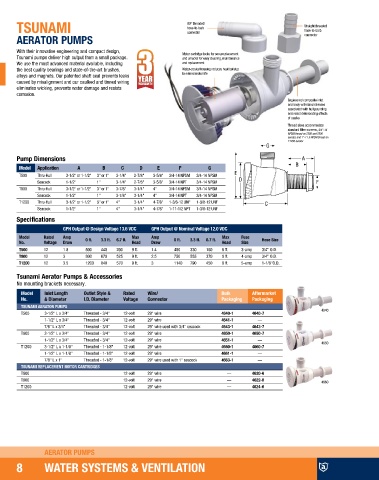

Page 10 - Attwood Marine Products Collection 2020

TSUNAMI 90° threaded Straight threaded
hose-to-barb
hose-to-barb
connector
AERATOR PUMPS connector
With their innovative engineering and compact design, Motor cartridge locks for secure placement
Tsunami pumps deliver high output from a small package. and unlocks for easy cleaning, maintenance
We use the most advanced material available, including and replacement
the best quality bearings and state-of-the-art brushes, Water-cooled housing reduces heat buildup
alloys and magnets. Our patented shaft seal prevents leaks to extend motor life
caused by misalignment and our caulked and tinned wiring
eliminates wicking, prevents water damage and resists
corrosion.
Engineered composite inlet
and body withstand stresses
associated with hull pounding
and resist deteriorating effects
of caulks
Thread sizes accommodate
standard filter screens, 3/4”-14
NPSM thread on T500 and T800
aerator, and 1”-11.5 NPSM thread on
T1200 aerator
Pump Dimensions
Model Application A B C D E F G
T500 Thru-Hull 3-1/2" or 1-1/2" 3" or 1" 3-1/4" 2-7/8" 3-5/8" 3/4-14 NPSM 3/4-14 NPSM
Seacock 1-1/2" 1" 3-1/4" 2-7/8" 3-5/8" 3/4-14 NPT 3/4-14 NPSM
T800 Thru-Hull 3-1/2" or 1-1/2" 3" or 1" 3-7/8" 3-1/4" 4" 3/4-14 NPSM 3/4-14 NPSM
Seacock 1-1/2" 1" 3-7/8" 3-1/4" 4" 3/4-14 NPT 3/4-14 NPSM
T1200 Thru-Hull 3-1/2" or 1-1/2" 3" or 1" 4" 3-1/4" 4-7/8" 1-3/8-12 UNF 1-3/8-12 UNF
Seacock 1-1/2" 1" 4" 3-1/4" 4-7/8" 1-11-1/2 NPT 1-3/8-12 UNF
Specifications

GPH Output @ Design Voltage 13.6 VDC GPH Output @ Nominal Voltage 12.0 VDC
Model Rated Amp 0 ft. 3.3 ft. 6.7 ft. Max Amp 0 ft. 3.3 ft. 6.7 ft. Max Fuse Hose Size
No. Voltage Draw Head Draw Head Size
T500 12 1.8 500 440 260 9 ft. 1.4 450 330 160 8 ft. 3-amp 3/4" O.D.
T800 12 3 800 670 525 9 ft. 2.5 750 555 370 8 ft. 4-amp 3/4" O.D.
T1200 12 3.5 1200 840 570 9 ft. 3 1140 790 450 8 ft. 5-amp 1-1/8"O.D.

Tsunami Aerator Pumps & Accessories
No mounting brackets necessary.
Model Inlet Length Outlet Style & Rated Wire/ Bulk Aftermarket
No. & Diameter I.D. Diameter Voltage Connector Packaging Packaging
TSUNAMI AERATOR PUMPS
4640
T500 3-1/2" L x 3/4" Threaded - 3/4" 12-volt 29" wire 4640-1 4640-7
1-1/2" L x 3/4" Threaded - 3/4" 12-volt 29" wire 4641-1 —
7/8" L x 3/4" Threaded - 3/4" 12-volt 29" wire used with 3/4" seacock 4643-1 4643-7
T800 3-1/2" L x 3/4" Threaded - 3/4" 12-volt 29" wire 4650-1 4650-7
1-1/2" L x 3/4" Threaded - 3/4" 12-volt 29" wire 4651-1 — 4650
T1200 3-1/2" L x 1-1/8" Threaded - 1-1/8" 12-volt 29" wire 4660-1 4660-7
1-1/2" L x 1-1/8" Threaded - 1-1/8" 12-volt 29" wire 4661-1 —
7/8" L x 1" Threaded - 1-1/8" 12-volt 29" wire used with 1" seacock 4663-1 —
TSUNAMI REPLACEMENT MOTOR CARTRIDGES
T500 12-volt 29" wire — 4620-6
T800 12-volt 29" wire — 4622-6 4660
T1200 12-volt 29" wire — 4624-6

AERATOR PUMPS
