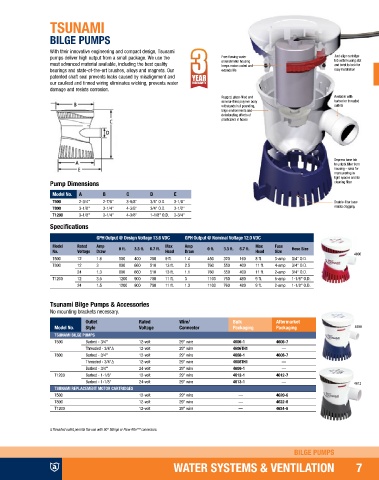

Page 9 - Attwood Marine Products Collection 2020

TSUNAMI

BILGE PUMPS

With their innovative engineering and compact design, Tsunami
pumps deliver high output from a small package. We use the Free-flowing water Just align cartridge
tab with housing slot
most advanced material available, including the best quality around motor housing and twist to lock for
keeps motor cooled and
bearings and state-of-the-art brushes, alloys and magnets. Our extends life easy installation
patented shaft seal prevents leaks caused by misalignment and
our caulked and tinned wiring eliminates wicking, prevents water
damage and resists corrosion.
Rugged, glass-filled and Available with
mineral-filled polymer body barbed or threaded
withstands hull pounding, outlets
bilge environments and
deteriorating effects of
plasticizers in hoses

Depress base tab
to unlock filter from
housing – ideal for
maneuvering in
tight spaces and for
Pump Dimensions cleaning filter
Model No. A B C D E
T500 2-3/4" 2-7/8" 3-5/8" 3/4" O.D. 3-1/8" Double-filter base
T800 3-1/8" 3-1/4" 4-3/8" 3/4" O.D. 3-1/2" resists clogging
T1200 3-1/8" 3-1/4" 4-3/8" 1-1/8" O.D. 3-3/4"
Specifications
GPH Output @ Design Voltage 13.6 VDC GPH Output @ Nominal Voltage 12.0 VDC
Model Rated Amp Max Amp Max Fuse
No. Voltage Draw 0 ft. 3.3 ft. 6.7 ft. Head Draw 0 ft. 3.3 ft. 6.7 ft. Head Size Hose Size
4606
T500 12 1.8 500 400 250 9 ft. 1.4 450 320 160 8 ft. 3-amp 3/4" O.D.
T800 12 3 800 660 510 13 ft. 2.5 760 550 400 11 ft. 4-amp 3/4" O.D.
24 1.3 800 660 510 13 ft. 1.1 760 550 400 11 ft. 2-amp 3/4" O.D.
T1200 12 3.5 1200 900 700 11 ft. 3 1100 760 480 9 ft. 5-amp 1-1/8" O.D.
24 1.5 1200 900 700 11 ft. 1.3 1100 760 480 9 ft. 2-amp 1-1/8" O.D.

Tsunami Bilge Pumps & Accessories
No mounting brackets necessary.
Outlet Rated Wire/ Bulk Aftermarket
Model No. Style Voltage Connector Packaging Packaging 4608
TSUNAMI BILGE PUMPS
T500 Barbed - 3/4" 12-volt 29" wire 4606-1 4606-7
Threaded - 3/4"∆ 12-volt 29" wire 4606TH1 —
T800 Barbed - 3/4" 12-volt 29" wire 4608-1 4608-7
Threaded - 3/4"∆ 12-volt 29" wire 4608TH1 —
Barbed - 3/4" 24-volt 29" wire 4609-1 —
T1200 Barbed - 1-1/8" 12-volt 29" wire 4612-1 4612-7
Barbed - 1-1/8" 24-volt 29" wire 4613-1 — 4612
TSUNAMI REPLACEMENT MOTOR CARTRIDGES
T500 12-volt 29" wire — 4620-6
T800 12-volt 29" wire — 4622-6
T1200 12-volt 29" wire — 4624-6

∆Threaded outlet permits the use with 90° fittings or Flow-Rite™ connectors.

BILGE PUMPS

WATER SYSTEMS & VENTILATION 7
