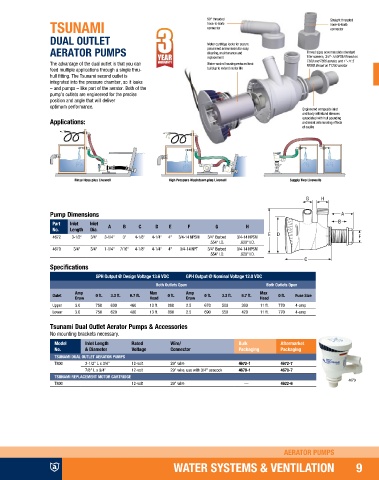

Page 11 - Attwood Marine Products Collection 2020

TSUNAMI 90° threaded Straight threaded
hose-to-barb
hose-to-barb
connector
connector
DUAL OUTLET Motor cartridge locks for secure
AERATOR PUMPS placement and unlocks for easy Thread sizes accommodate standard
cleaning, maintenance and
replacement filter screens, 3/4"-14 NPSM thread on
The advantage of the dual outlet is that you can Water-cooled housing reduces heat T500 and T800 aerator, and 1"-11.5
NPSM thread on T1200 aerator
feed multiple applications through a single thru- buildup to extend motor life
hull fitting. The Tsunami second outlet is
integrated into the pressure chamber, so it looks
– and pumps – like part of the aerator. Both of the
pump’s outlets are engineered for the precise
position and angle that will deliver
optimum performance. Engineered composite inlet
and body withstand stresses
associated with hull pounding
Applications: and resist deteriorating effects
of caulks

Rinse Hose plus Livewell High Pressure Washdown plus Livewell Supply Two Livewells

Pump Dimensions
Part Inlet Inlet
No. Length Dia. A B C D E F G H
4672 3-1/2" 3/4" 3-1/4" 3" 4-1/8" 4-1/4" 4" 3/4-14 NPSM 3/4" Barbed 3/4-14 NPSM
.554" I.D. .620" I.D.
4670 3/4" 3/4" 1-1/4" 7/16" 4-1/8" 4-1/4" 4" 3/4-14 NPT 3/4" Barbed 3/4-14 NPSM
.554" I.D. .620" I.D.
Specifications
GPH Output @ Design Voltage 13.6 VDC GPH Output @ Nominal Voltage 12.0 VDC
Both Outlets Open Both Outlets Open
Amp Max Amp Max
Oulet 0 ft. 3.3 ft. 6.7 ft. 0 ft. 0 ft. 3.3 ft. 6.7 ft. 0 ft. Fuse Size
Draw Head Draw Head
Upper 3.0 750 600 460 13 ft. 880 2.5 670 500 390 11 ft. 770 4-amp
Lower 3.0 750 620 480 13 ft. 880 2.5 690 550 420 11 ft. 770 4-amp

Tsunami Dual Outlet Aerator Pumps & Accessories
No mounting brackets necessary.
Model Inlet Length Rated Wire/ Bulk Aftermarket
No. & Diameter Voltage Connector Packaging Packaging
TSUNAMI DUAL OUTLET AERATOR PUMPS
T800 3-1/2" L x 3/4" 12-volt 29" wire 4672-1 4672-7
7/8" L x 3/4" 12-volt 29" wire, use with 3/4" seacock 4670-1 4670-7
TSUNAMI REPLACEMENT MOTOR CARTRIDGE
4670
T800 12-volt 29" wire — 4622-6

AERATOR PUMPS

WATER SYSTEMS & VENTILATION 9
