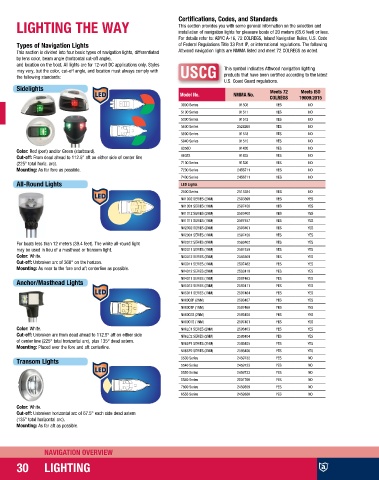

Page 32 - Attwood Marine Products Collection 2020

Certifications, Codes, and Standards
LIGHTING THE WAY This section provides you with some general information on the selection and
installation of navigation lights for pleasure boats of 20 meters (65.6 feet) or less.
For details refer to: ABYC A-16, 72 COLREGS, Inland Navigation Rules, U.S. Code
Types of Navigation Lights of Federal Regulations Title 33 Part IP, or international regulations. The following
This section is divided into four basic types of navigation lights, differentiated Attwood navigation lights are NMMA listed and meet 72 COLREGS as noted.
by lens color, beam angle (horizontal cut-off angle),
and location on the boat. All lights are for 12-volt DC applications only. Styles
may vary, but the color, cut-off angle, and location must always comply with This symbol indicates Attwood navigation lighting
the following standards: products that have been certified according to the latest
U.S. Coast Guard regulations.
Sidelights Meets 72 Meets ISO
Model No. NMMA No. COLREGS 19009:2015
3900 Series 91508 YES NO
5100 Series 91511 YES NO
5300 Series 91512 YES NO
5600 Series 2528266 YES NO
5900 Series 91518 YES NO
5940 Series 91515 YES NO
6356D 91420 YES NO
Color: Red (port) and/or Green (starboard).
Cut-off: From dead ahead to 112.5° aft on either side of center line 66382 91425 YES NO
(225° total horiz. arc). 7100 Series 91520 YES NO
Mounting: As far fore as possible. 7200 Series 2456711 YES NO
7400 Series 2456711 YES NO
All-Round Lights LED Lights
2500 Series 2515284 YES NO
NV1002 SERIES (2NM) 2593399 YES YES
NV1001 SERIES (1NM) 2597456 YES YES
NV1012 SERIES (2NM) 2593400 YES YES
NV1011 SERIES (1NM) 2597457 YES YES
NV2002 SERIES (2NM) 2593401 YES YES
NV2001 SERIES (1NM) 2597458 YES YES
For boats less than 12 meters (39.4 feet). The white all-round light NV2012 SERIES (2NM) 2593402 YES YES
may be used in lieu of a masthead or transom light. NV2011 SERIES (1NM) 2597459 YES YES
Color: White. NV3012 SERIES (2NM) 2593409 YES YES
Cut-off: Unbroken arc of 360° on the horizon. NV3011 SERIES (1NM) 2597462 YES YES
Mounting: As near to the fore and aft centerline as possible.
NV4012 SERIES (2NM) 2593410 YES YES
NV4011 SERIES (1NM) 2597463 YES YES
Anchor/Masthead Lights NV5012 SERIES (2NM) 2593411 YES YES
NV5011 SERIES (1NM) 2597464 YES YES
NV0002P (2NM) 2593407 YES YES
NV0001P (1NM) 2597460 YES YES
NV0002S (2NM) 2593408 YES YES
NV0001S (1NM) 2597461 YES YES
Color: White. NV6LC1 SERIES (2NM) 2593403 YES YES
Cut-off: Unbroken arc from dead ahead to 112.5° aft on either side NV6LC2 SERIES (2NM) 2593404 YES YES
of center line (225° total horizontal arc), plus 135° dead astern. NV6SP1 SERIES (2NM) 2593405 YES YES
Mounting: Placed over the fore and aft centerline.
NV6SP2 SERIES (2NM) 2593406 YES YES
Transom Lights 5530 Series 2459732 YES NO
5540 Series 2459733 YES NO
5550 Series 2459733 YES NO
5580 Series 2501760 YES NO
7800 Series 2459859 YES NO
6556 Series 2459860 YES NO

Color: White.
Cut-off: Unbroken horizontal arc of 67.5° each side dead astern
(135° total horizontal arc).
Mounting: As far aft as possible.
