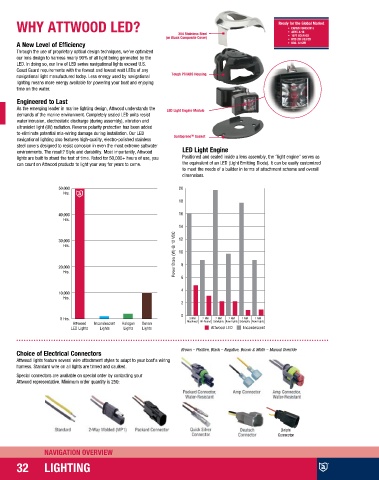

WHY ATTWOOD LED? Ready for the Global Market
• EN/ISO 19009:2015
304 Stainless Steel • ABYC A-16
• 1972 COLREGS
(or Black Composite Cover) • RCD 2013/53/EU
A New Level of Efficiency • USG 33 CFR
Through the use of proprietary optical design techniques, we’ve optimized
our lens design to harness nearly 90% of all light being generated by the
LED. In doing so, our line of LED series navigational lights exceed U.S.
Coast Guard requirements with the fewest and lowest watt LEDs of any
navigational light manufactured today. Less energy used by navigational Tough PC/ABS Housing
lighting means more energy available for powering your boat and enjoying
time on the water.

Engineered to Last
As the emerging leader in marine lighting design, Attwood understands the LED Light Engine Module
demands of the marine environment. Completely sealed LED units resist
water intrusion, electrostatic discharge (during assembly), vibration and
ultraviolet light (UV) radiation. Reverse polarity protection has been added
to eliminate potential mis-wiring damage during installation. Our LED Santoprene Gasket
TM
navigational lighting also features high-quality, electro-polished stainless
steel covers designed to resist corrosion in even the most extreme saltwater
environments. The result? Style and durability. Most importantly, Attwood LED Light Engine
lights are built to stand the test of time. Rated for 50,000+ hours of use, you Positioned and sealed inside a lens assembly, the “light engine” serves as
can count on Attwood products to light your way for years to come. the equivalent of an LED (Light Emitting Diode). It can be easily customized
to meet the needs of a builder in terms of attachment scheme and overall
dimensions.

50,000 20
Hrs.
18

40,000 16
Hrs.
14
Power Draw (W) @ 12 VDC 10
30,000 12
Hrs.

20,000 8
Hrs. 6

4
10,000
Hrs.
2
0
0 Hrs. 3-NM 2-NM 2-NM 2-NM 1-NM 1-NM
Attwood Incandescent Halogen Xenon Masthead All-Round Sidelights Bow Lights Sidelights Bow Lights
LED Lights Lights Lights Lights Attwood LED Incandescent

Choice of Electrical Connectors Brown – Positive, Black – Negative, Brown & White – Manual Override
Attwood lights feature several wire attachment styles to adapt to your boat’s wiring
harness. Standard wire on all lights are tinned and caulked.
Special connectors are available on special order by contacting your
Attwood representative. Minimum order quantity is 250:

Delphi
Connector

NAVIGATION OVERVIEW

32 LIGHTING
