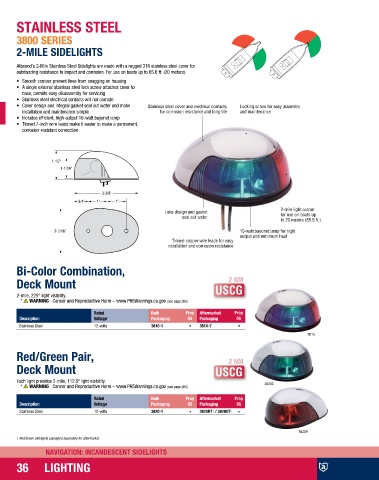

Page 38 - Attwood Marine Products Collection 2020

STAINLESS STEEL

3800 SERIES
2-MILE SIDELIGHTS

Attwood’s 2-Mile Stainless Steel Sidelights are made with a rugged 316 stainless steel cover for
outstanding resistance to impact and corrosion. For use on boats up to 65.6 ft. (20 meters).
• Smooth contour prevent lines from snagging on housing
• A single external stainless steel lock screw attaches cover to
base, permits easy disassembly for servicing
• Stainless steel electrical contacts will not corrode
• Cover design and integral gasket seal out water and make Stainless steel cover and electrical contacts Locking screw for easy assembly
installation and maintenance simple for corrosion resistance and long life and maintenance
• Includes efficient, high-output 10-watt bayonet lamp
• Tinned 7-inch wire leads make it easier to make a permanent,
corrosion-resistant connection

1-1/2"
1-1/16"

3-3/8"
3/4" 1" 1"
2-mile light output
Lens design and gasket for use on boats up
seal out water
to 20 meters (65.6 ft.)
2-7/16" 10-watt bayonet lamp for high
output and minimum heat
Tinned-copper wire leads for easy
installation and corrosion resistance

Bi-Color Combination,

Deck Mount

2-mile, 225° light visibility.

Rated Bulk Prop Aftermarket Prop
Description Voltage Packaging 65 Packaging 65
Stainless Steel 12-volts 3810-1 3810-7
3810

Red/Green Pair,

Deck Mount

Each light provides 2-mile, 112.5º light visibility. 3820G

Rated Bulk Prop Aftermarket Prop
Description Voltage Packaging 65 Packaging 65
Stainless Steel 12-volts 3820-1 3820R7† / 3820G7†

3820R
† Red/Green Sidelights packaged separately for aftermarket.
NAVIGATION: INCANDESCENT SIDELIGHTS

36 LIGHTING
