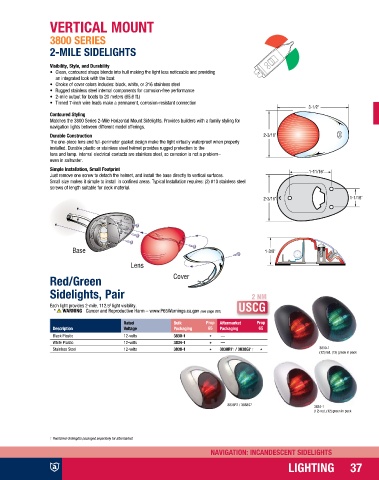

VERTICAL MOUNT

3800 SERIES
2-MILE SIDELIGHTS

Visibility, Style, and Durability
• Clean, contoured shape blends into hull making the light less noticeable and providing
an integrated look with the boat
• Choice of cover colors includes: black, white, or 316 stainless steel
• Rugged stainless steel internal components for corrosion-free performance
• 2-mile output for boats to 20 meters (65.6 ft.)
• Tinned 7-inch wire leads make a permanent, corrosion-resistant connection
Contoured Styling
Matches the 3800 Series 2-Mile Horizontal Mount Sidelights. Provides builders with a family styling for
navigation lights between different model offerings.
Durable Construction
The one-piece lens and full-perimeter gasket design make the light virtually waterproof when properly
installed. Durable plastic or stainless steel helmet provides rugged protection to the
lens and lamp. Internal electrical contacts are stainless steel, so corrosion is not a problem–
even in saltwater.
Simple Installation, Small Footprint
Just remove one screw to detach the helmet, and install the base directly to vertical surfaces.
Small size makes it simple to install in confined areas. Typical Installation requires: (3) #10 stainless steel
screws of length suitable for deck material.

Base

Lens
Red/Green Cover

Sidelights, Pair

Each light provides 2-mile, 112.5º light visibility.

Rated Bulk Prop Aftermarket Prop
Description Voltage Packaging 65 Packaging 65
Black Plastic 12-volts 3830-1 —
White Plastic 12-volts 3834-1 —
Stainless Steel 12-volts 3838-1 3838R7† / 3838G7 † 3830-1
(12) red, (12) green in pack

3838R7 / 3838G7 3834-1
(12) red, (12) green in pack

† Red/Green Sidelights packaged separately for aftermarket.
NAVIGATION: INCANDESCENT SIDELIGHTS
