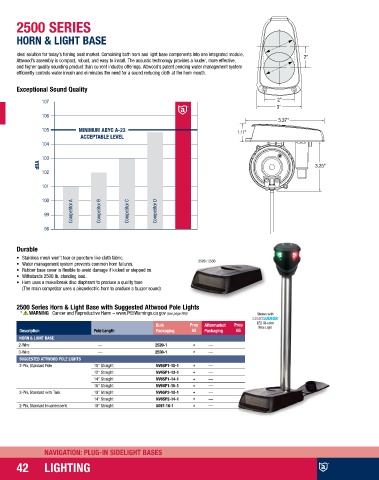

Page 44 - Attwood Marine Products Collection 2020

2500 SERIES

HORN & LIGHT BASE

Ideal solution for today’s fishing boat market. Combining both horn and light base components into one integrated module, 2"
Attwood’s assembly is compact, robust, and easy to install. The acoustic technology provides a louder, more effective,
and higher quality sounding product than current industry offerings. Attwood’s patent pending water management system
efficiently controls water inrush and eliminates the need for a sound reducing cloth at the horn mouth.

Exceptional Sound Quality

107 2"
3"
106
5.37"
105 MINIMUM ABYC A-23 1.17"
ACCEPTABLE LEVEL
104

103
dBA 3.25"
102

101

100
Competitor A Competitor B Competitor C Competitor D
99

98

Durable
• Stainless mesh won’t tear or puncture like cloth fabric. 2520 / 2530
• Water management system prevents common horn failures.
• Rubber base cover is flexible to avoid damage if kicked or stepped on.
• Withstands 2500 lb. standing load.
• Horn uses a make/break disc diaphram to produce a quality tone
(The main competitor uses a piezoelectric horn to produce a buzzer sound).

2500 Series Horn & Light Base with Suggested Attwood Pole Lights
Shown with
Bulk Prop Aftermarket Prop LED Bi-color
Pole Light
Description Pole Length Packaging 65 Packaging 65
HORN & LIGHT BASE
2-Wire — 2520-1 —
3-Wire — 2530-1 —
SUGGESTED ATTWOOD POLE LIGHTS
2-Pin, Standard Pole 10" Straight NV6SP1-10-1 —
12" Straight NV6SP1-12-1 —
14" Straight NV6SP1-14-1 —
16" Straight NV6SP1-16-1 —
3-Pin, Standard with Task 10" Straight NV6SP2-10-1 —
14" Straight NV6SP2-14-1 —
2-Pin, Standard Incandescent 10" Straight 5097-10-1 —

NAVIGATION: PLUG-IN SIDELIGHT BASES

42 LIGHTING
