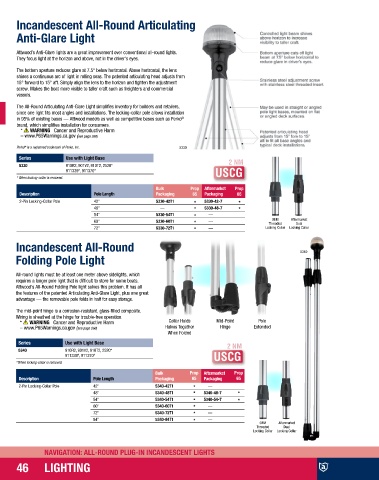

Page 48 - Attwood Marine Products Collection 2020

Incandescent All-Round Articulating
Anti-Glare Light

Attwood’s Anti-Glare lights are a great improvement over conventional all-round lights.
They focus light at the horizon and above, not in the driver’s eyes.

The bottom aperture reduces glare at 7.5° below horizontal. Above horizontal, the lens
shines a continuous arc of light in rolling seas. The patented articulating head adjusts from
15° forward to 15° aft. Simply align the lens to the horizon and tighten the adjustment .
screw. Makes the boat more visible to taller craft such as freighters and commercial
vessels.

The All-Round Articulating Anti-Glare Light simplifies inventory for builders and retailers,
since one light fits most angles and installations. The locking-collar pole allows installation .
in 95% of existing bases — Attwood models as well as competitive bases such as Perko
®
brand, which simplifies installation for consumers.

.
Perko ® is a registered trademark of Perko, Inc. 5330
Series Use with Light Base
5330 910R2, 901V2, 910T2, 2520*
911339*, 911370*
* When locking-collar is removed.
Bulk Prop Aftermarket Prop
Description Pole Length Packaging 65 Packaging 65
2-Pin Locking-Collar Pole 42" 5330-42T1 5330-42-7
48" — 5330-48-7
54" 5330-54T1 —
60" 5330-60T1 — OEM Aftermarket
Threaded Dual
72" 5330-72T1 — Locking Collar Locking Collar
Incandescent All-Round 5340

Folding Pole Light

All-round lights must be at least one meter above sidelights, which
requires a longer pole light that is difficult to store for some boats.
Attwood’s All-Round Folding Pole light solves this problem. It has all
the features of the patented Articulating Anti-Glare Light, plus one great
advantage — the removable pole folds in half for easy storage.
The mid-point hinge is a corrosion-resistant, glass-filled composite.
Wiring is sheathed at the hinge for trouble-free operation.
Collar Holds Mid-Point Pole
Halves Together Hinge Extended
When Folded
Series Use with Light Base
5340 910R2, 901V2, 910T2, 2520*
911339*, 911370*
* When locking-collar is removed.
Bulk Prop Aftermarket Prop
Description Pole Length Packaging 65 Packaging 65
2-Pin Locking-Collar Pole 42" 5340-42T1 —
48" 5340-48T1 5340-48-7
54" 5340-54T1 5340-54-7
60" 5340-60T1 —
72" 5340-72T1 —
84" 5340-84T1 —
OEM Aftermarket
Threaded Dual
Locking Collar Locking Collar

NAVIGATION: ALL-ROUND PLUG-IN INCANDESCENT LIGHTS

46 LIGHTING
