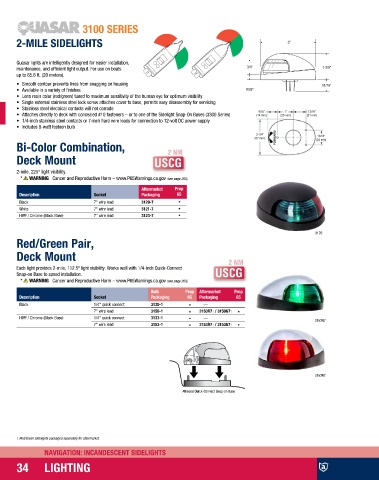

Page 36 - Attwood Marine Products Collection 2020

3100 SERIES
2-MILE SIDELIGHTS 3"

Quasar lights are intelligently designed for easier installation,
maintenance, and efficient light output. For use on boats 3/4" 1-3/8"
up to 65.6 ft. (20 meters).
• Smooth contour prevents lines from snagging on housing 11/16"
• Available in a variety of finishes 9/32"
• Lens resin color (red/green) tuned to maximum sensitivity of the human eye for optimum visibility
• Single external stainless steel lock screw attaches cover to base, permits easy disassembly for servicing
• Stainless steel electrical contacts will not corrode 9/16" 1" 13/16"
• Attaches directly to deck with concealed #10 fasteners – or to one of the Sidelight Snap-On Bases (3300 Series) (14 mm) (25 mm) (21 mm)
• 1/4-inch stainless steel contacts or 7-inch hard wire leads for connection to 12-volt DC power supply
• Includes 8-watt festoon bulb
2-1/4" 15/16"
(57 mm) (24 mm)
Bi-Color Combination,
Deck Mount

2-mile, 225° light visibility.

Aftermarket Prop
Description Socket Packaging 65
Black k 7" wire lead 3120-7
White 7" wire lead 3121-7
HIPP / Chrome (Black Base) 7" wire lead 3123-7

3120
Red/Green Pair,
Deck Mount

Each light provides 2-mile, 112.5º light visibility. Works well with 1/4-inch Quick-Connect
Snap-on Base to speed installation.

Bulk Prop Aftermarket Prop
Description Socket Packaging 65 Packaging 65
Black 1/4" quick connect 3130-1 —
7" wire lead 3150-1 3150R7† / 3150G7†
HIPP / Chrome (Black Base) 1/4" quick connect 3133-1 — 3153G7
7" wire lead 3153-1 3153R7† / 3153G7†

3153R7

Attwood Quick-Connect Snap-on Base

† Red/Green Sidelights packaged separately for aftermarket.
NAVIGATION: INCANDESCENT SIDELIGHTS

34 LIGHTING
