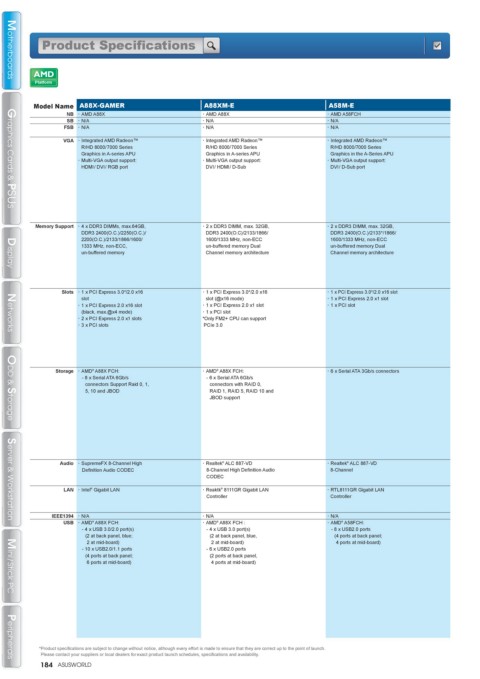

Product Specifications

Motherboards
Platform
Motherboards
．
．
Model Name A88X-GAMER A88XM-E A58M-E
NB ．AMD A88X ．AMD A88X ．AMD A58FCH
SB ．N/A ．N/A ．N/A
FSB ．N/A ．N/A ．N/A
VGA ．Integrated AMD Radeon™ ．Integrated AMD Radeon™ ．Integrated AMD Radeon™
R/HD 8000/ 7000 Series R/HD 8000/ 7000 Series R/HD 8000/7000 Series
Graphics in A-series APU Graphics in A-series APU Graphics in the A-Series APU
．Multi-VGA output support: ．Multi-VGA output support: ．Multi-VGA output support:
HDMI / DVI / RGB port DVI / HDMI / D-Sub DVI / D-Sub port

Graphics Cards & PSUS
Graphics Cards & PSUS
Memory Support ．4 x DDR3 DIMMs, max.64GB, ．2 x DDR3 DIMM, max. 32GB, ．2 x DDR3 DIMM, max. 32GB,
DDR3 2400(O.C.)/2250(O.C.)/ DDR3 2400(O.C)/2133/1866/ DDR3 2400(O.C.)/2133*/1866/
2200(O.C.)/2133/1866/1600/ 1600/1333 MHz, non-ECC 1600/1333 MHz, non-ECC
1333 MHz, non-ECC, un-buffered memory Dual un-buffered memory Dual
un-buffered memory Channel memory architecture Channel memory architecture

Display
Display
Slots ．1 x PCI Express 3.0*/2.0 x16 ．1 x PCI Express 3.0*/2.0 x16 ．1 x PCI Express 3.0*/2.0 x16 slot
slot slot (@x16 mode) ．1 x PCI Express 2.0 x1 slot
．1 x PCI Express 2.0 x16 slot ．1 x PCI Express 2.0 x1 slot ．1 x PCI slot
(black, max.@x4 mode) ．1 x PCI slot
．2 x PCI Express 2.0 x1 slots *Only FM2+ CPU can support
．3 x PCI slots PCIe 3.0
Networks
Networks

Storage ．AMD A88X FCH: ．AMD A88X FCH: ．6 x Serial ATA 3Gb/s connectors
®
®
- 8 x Serial ATA 6Gb/s - 6 x Serial ATA 6Gb/s
connectors Support Raid 0, 1, connectors with RAID 0,
5, 10 and JBOD RAID 1, RAID 5, RAID 10 and
JBOD support
ODD & Storage
ODD & Storage

®
®
Audio ．SupremeFX 8-Channel High ．Realtek ALC 887-VD ．Realtek ALC 887-VD
Definition Audio CODEC 8-Channel High Definition Audio 8-Channel
CODEC
LAN ．Intel Gigabit LAN ．Reaktk 8111GR Gigabit LAN ．RTL8111GR Gigabit LAN
®
®
Controller Controller
IEEE1394 ．N/A ．N/A ．N/A
USB ．AMD A88X FCH: ．AMD A88X FCH : ．AMD A58FCH:
®
Server & Workstation
Server & Workstation
®
®
- 4 x USB 3.0/2.0 port(s) - 4 x USB 3.0 port(s) - 8 x USB2.0 ports
(2 at back panel, blue; (2 at back panel, blue, (4 ports at back panel;
2 at mid-board) 2 at mid-board) 4 ports at mid-board)
- 10 x USB2.0/1.1 ports - 6 x USB2.0 ports
(4 ports at back panel; (2 ports at back panel,
6 ports at mid-board) 4 ports at mid-board)
Mini / Stick PC
Mini / Stick PC

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
