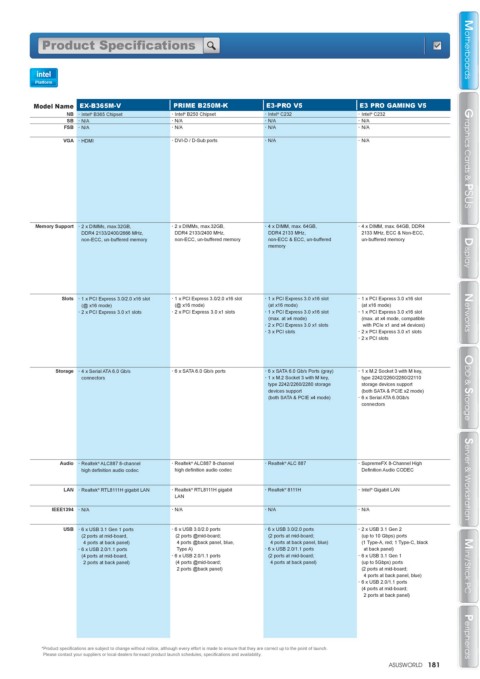

Product Specifications Motherboards Motherboards

Platform

Model Name EX-B365M-V PRIME B250M-K E3-PRO V5 E3 PRO GAMING V5
NB ．Intel ® B365 Chipset ．Intel ® B250 Chipset ．Intel ® C232 ．Intel ® C232
SB ．N/A ．N/A ．N/A ．N/A
FSB ．N/A ．N/A ．N/A ．N/A
VGA ．HDMI ．DVI-D / D-Sub ports ．N/A ．N/A Graphics Cards & PSUS

Graphics Cards & PSUS

Memory Support ．2 x DIMMs, max.32GB, ．2 x DIMMs, max.32GB, ．4 x DIMM, max. 64GB, ．4 x DIMM, max. 64GB, DDR4
DDR4 2133/2400/2666 MHz, DDR4 2133/2400 MHz, DDR4 2133 MHz, 2133 MHz, ECC & Non-ECC,
non-ECC, un-buffered memory non-ECC, un-buffered memory non-ECC & ECC, un-buffered un-buffered memory
memory Display Display

Slots ．1 x PCI Express 3.0/2.0 x16 slot ．1 x PCI Express 3.0/2.0 x16 slot ．1 x PCI Express 3.0 x16 slot ．1 x PCI Express 3.0 x16 slot
(@ x16 mode) (@ x16 mode) (at x16 mode) (at x16 mode)
．2 x PCI Express 3.0 x1 slots ．2 x PCI Express 3.0 x1 slots ．1 x PCI Express 3.0 x16 slot ．1 x PCI Express 3.0 x16 slot Networks
(max. at x4 mode) (max. at x4 mode, compatible
．2 x PCI Express 3.0 x1 slots with PCIe x1 and x4 devices)
．3 x PCI slots ．2 x PCI Express 3.0 x1 slots
Networks
．2 x PCI slots

Storage ．4 x Serial ATA 6.0 Gb/s ．6 x SATA 6.0 Gb/s ports ．6 x SATA 6.0 Gb/s Ports (gray) ．1 x M.2 Socket 3 with M key,
connectors ．1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110
type 2242/2260/2280 storage storage devices support
devices support (both SATA & PCIE x2 mode) ODD & Storage
(both SATA & PCIE x4 mode) ．6 x Serial ATA 6.0Gb/s
connectors

ODD & Storage

Audio ．Realtek ® ALC887 8-channel ．Realtek ® ALC887 8-channel ．Realtek ® ALC 887 ．SupremeFX 8-Channel High
high definition audio codec high definition audio codec Definition Audio CODEC Server & Workstation

LAN ．Realtek ® RTL8111H gigabit LAN ．Realtek ® RTL8111H gigabit ．Realtek ® 8111H ．Intel ® Gigabit LAN
LAN
IEEE1394 ．N/A ．N/A ．N/A ．N/A

Server & Workstation
USB ．6 x USB 3.1 Gen 1 ports ．6 x USB 3.0/2.0 ports ．6 x USB 3.0/2.0 ports ．2 x USB 3.1 Gen 2
(2 ports at mid-board, (2 ports @mid-board; (2 ports at mid-board; (up to 10 Gbps) ports
4 ports at back panel) 4 ports @back panel, blue, 4 ports at back panel, blue) (1 Type-A, red; 1 Type-C, black
．6 x USB 2.0/1.1 ports Type A) ．6 x USB 2.0/1.1 ports at back panel)
(4 ports at mid-board, ．6 x USB 2.0/1.1 ports (2 ports at mid-board; ．6 x USB 3.1 Gen 1
2 ports at back panel) (4 ports @mid-board; 4 ports at back panel) (up to 5Gbps) ports
2 ports @back panel) (2 ports at mid-board; Mini / Stick PC
4 ports at back panel, blue)
．6 x USB 2.0/1.1 ports
(4 ports at mid-board;
2 ports at back panel)
Mini / Stick PC

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch. Peripherals Peripherals
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
