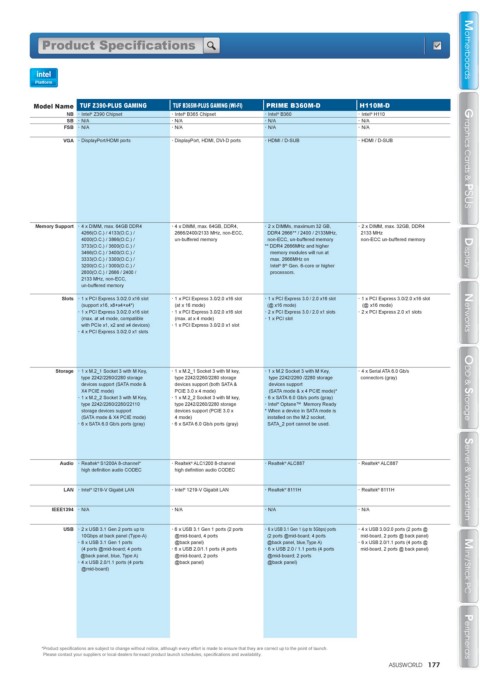

Product Specifications Motherboards Motherboards

Platform

Model Name TUF Z390-PLUS GAMING TUF B365M-PLUS GAMING (WI-FI) PRIME B360M-D H110M-D
NB ．Intel ® Z390 Chipset ．Intel ® B365 Chipset ．Intel ® B360 ．Intel ® H110
SB ．N/A ．N/A ．N/A ．N/A
FSB ．N/A ．N/A ．N/A ．N/A
VGA ．DisplayPort/HDMI ports ．DisplayPort, HDMI, DVI-D ports ．HDMI / D-SUB ．HDMI / D-SUB Graphics Cards & PSUS

Graphics Cards & PSUS
Memory Support ．4 x DIMM, max. 64GB DDR4 ．4 x DIMM, max. 64GB, DDR4, ．2 x DIMMs, maximum 32 GB, ．2 x DIMM, max. 32GB, DDR4
4266(O.C.) / 4133(O.C.) / 2666/2400/2133 MHz, non-ECC, DDR4 2666** / 2400 / 2133MHz, 2133 MHz
4000(O.C.) / 3866(O.C.) / un-buffered memory non-ECC, un-buffered memory non-ECC un-buffered memory
3733(O.C.) / 3600(O.C.) / ** DDR4 2666MHz and higher
3466(O.C.) / 3400(O.C.) / memory modules will run at Display Display
3333(O.C.) / 3300(O.C.) / max. 2666MHz on
3200(O.C.) / 3000(O.C.) / Intel 8 th Gen. 6-core or higher
®
2800(O.C.) / 2666 / 2400 / processors.
2133 MHz, non-ECC,
un-buffered memory
Slots ．1 x PCI Express 3.0/2.0 x16 slot ．1 x PCI Express 3.0/2.0 x16 slot ．1 x PCI Express 3.0 / 2.0 x16 slot ．1 x PCI Express 3.0/2.0 x16 slot
(support x16, x8+x4+x4*) (at x 16 mode) (@ x16 mode) (@ x16 mode)
．1 x PCI Express 3.0/2.0 x16 slot ．1 x PCI Express 3.0/2.0 x16 slot ．2 x PCI Express 3.0 / 2.0 x1 slots ．2 x PCI Express 2.0 x1 slots Networks
(max. at x4 mode, compatible (max. at x 4 mode) ．1 x PCI slot
with PCIe x1, x2 and x4 devices) ．1 x PCI Express 3.0/2.0 x1 slot
．4 x PCI Express 3.0/2.0 x1 slots
Networks

Storage ．1 x M.2_1 Socket 3 with M Key, ．1 x M.2_1 Socket 3 with M key, ．1 x M.2 Socket 3 with M Key, ．4 x Serial ATA 6.0 Gb/s
type 2242/2260/2280 storage type 2242/2260/2280 storage type 2242/2260 /2280 storage connectors (gray)
devices support (SATA mode & devices support (both SATA & devices support
X4 PCIE mode) PCIE 3.0 x 4 mode) (SATA mode & x 4 PCIE mode)* ODD & Storage ODD & Storage
．1 x M.2_2 Socket 3 with M Key, ．1 x M.2_2 Socket 3 with M key, ．6 x SATA 6.0 Gb/s ports (gray)
type 2242/2260/2280/22110 type 2242/2260/2280 storage ．Intel ® Optane™ Memory Ready
storage devices support devices support (PCIE 3.0 x * When a device in SATA mode is
(SATA mode & X4 PCIE mode) 4 mode) installed on the M.2 socket,
．6 x SATA 6.0 Gb/s ports (gray) ．6 x SATA 6.0 Gb/s ports (gray) SATA_2 port cannot be used.

Audio ．Realtek ® S1200A 8-channel* ．Realtek ® ALC1200 8-channel ．Realtek ® ALC887 ．Realtek ® ALC887
high definition audio CODEC high definition audio CODEC Server & Workstation Server & Workstation

LAN ．Intel ® I219-V Gigabit LAN ．Intel ® 1219-V Gigabit LAN ．Realtek ® 8111H ．Realtek ® 8111H

IEEE1394 ．N/A ．N/A ．N/A ．N/A

USB ．2 x USB 3.1 Gen 2 ports up to ．6 x USB 3.1 Gen 1 ports (2 ports ．6 x USB 3.1 Gen 1 (up to 5Gbps) ports ．4 x USB 3.0/2.0 ports (2 ports @
10Gbps at back panel (Type-A) @mid-board, 4 ports (2 ports @mid-board; 4 ports mid-board, 2 ports @ back panel)
．8 x USB 3.1 Gen 1 ports @back panel) @back panel, blue,Type A) ．6 x USB 2.0/1.1 ports (4 ports @
(4 ports @mid-board; 4 ports ．6 x USB 2.0/1.1 ports (4 ports ．6 x USB 2.0 / 1.1 ports (4 ports mid-board, 2 ports @ back panel)
@back panel, blue, Type A) @mid-board, 2 ports @mid-board; 2 ports
．4 x USB 2.0/1.1 ports (4 ports @back panel) @back panel)
@mid-board) Mini / Stick PC Mini / Stick PC

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch. Peripherals Peripherals
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
