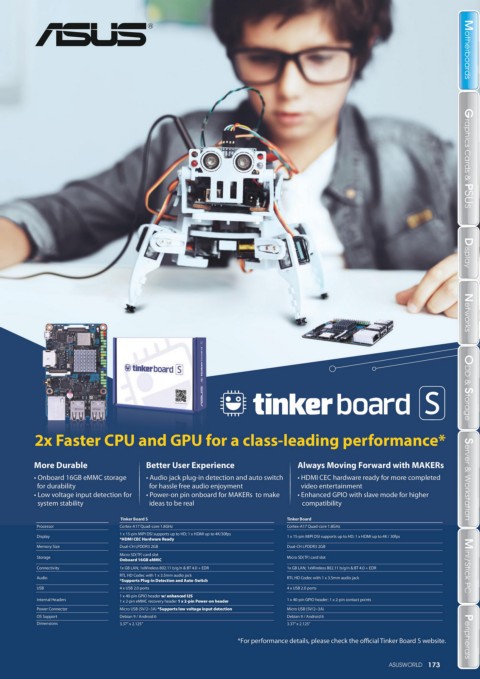

2x Faster CPU and GPU for a class-leading performance* Motherboards

More Durable Better User Experience Always Moving Forward with MAKERs
• Onboard 16GB eMMC storage • Audio jack plug-in detection and auto switch • HDMI CEC hardware ready for more completed Server & Workstation
for durability for hassle free audio enjoyment video entertainment
• Low voltage input detection for • Power-on pin onboard for MAKERs to make • Enhanced GPIO with slave mode for higher
system stability ideas to be real compatibility

Tinker Board S Tinker Board
Server & Workstation
Processor Cortex-A17 Quad-core 1.8GHz Cortex-A17 Quad-core 1.8GHz
1 x 15-pin MIPI DSI supports up to HD; 1 x HDMI up to 4K/30fps
Display 1 x 15-pin MIPI DSI supports up to HD; 1 x HDMI up to 4K / 30fps
*HDMI CEC Hardware Ready
Memory Size Dual-CH LPDDR3 2GB Dual-CH LPDDR3 2GB
Micro SD(TF) card slot
Storage Micro SD(TF) card slot
Onboard 16GB eMMC
Connectivity 1x GB LAN; 1xWireless 802.11 b/g/n & BT 4.0 + EDR 1x GB LAN; 1xWireless 802.11 b/g/n & BT 4.0 + EDR Mini / Stick PC
RTL HD Codec with 1 x 3.5mm audio jack
Audio RTL HD Codec with 1 x 3.5mm audio jack
*Supports Plug-in Detection and Auto-Switch
USB 4 x USB 2.0 ports 4 x USB 2.0 ports
Mini / Stick PC
1 x 40-pin GPIO header w/ enhanced I2S
Internal Headers 1 x 2-pin eMMC recovery header 1 x 2-pin Power-on header 1 x 40-pin GPIO header; 1 x 2-pin contact points

Power Connector Micro USB (5V/2~3A) *Supports low voltage input detection Micro USB (5V/2~3A)
OS Support Debian 9 / Android 6 Debian 9 / Android 6
Dimensions 3.37” x 2.125” 3.37” x 2.125”
*For performance details, please check the o cial Tinker Board S website. Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
