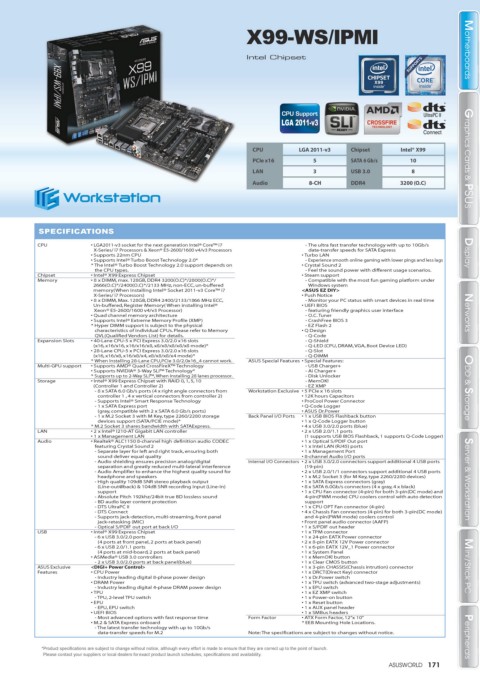

X99-WS/IPMI

Intel Chipset Motherboards Motherboards

CPU LGA 2011-v3 Chipset Intel® X99
PCIe x16 5 SATA 6 Gb/s 10 Graphics Cards & PSUS
LAN 3 USB 3.0 8
Audio 8-CH DDR4 3200 (O.C)

Graphics Cards & PSUS

SPECIFICATIONS

CPU • LGA2011-v3 socket for the next generation Intel® Core™ i7 - The ultra fast transfer technology with up to 10Gb/s
X-Series/ i7 Processors & Xeon® E5-2600/1600 v4/v3 Processors data-transfer speeds for SATA Express
• Supports 22nm CPU • Turbo LAN Display Display
• Supports Intel® Turbo Boost Technology 2.0* - Experience smooth online gaming with lower pings and less lags
* The Intel® Turbo Boost Technology 2.0 support depends on • Crystal Sound 2
the CPU types. - Feel the sound power with different usage scenarios.
Chipset • Intel® X99 Express Chipset • Steam support
Memory • 8 x DIMM, max. 128GB, DDR4 3200(O.C)*/2800(O.C)*/ - Compatible with the most fun gaming platform under

2666(O.C)*/2400(O.C)*/2133 MHz, non-ECC, un-buffered Windows system
memory(When installing Intel® Socket 2011-v3 Core™ i7 <ASUS EZ DIY>
X-Series/ i7 Processors) • Push Notice
• 8 x DIMM, Max. 128GB, DDR4 2400/2133/1866 MHz ECC, - Monitor your PC status with smart devices in real time
Un-buffered, Register Memory( When installing Intel® • UEFI BIOS
Xeon® E5-2600/1600 v4/v3 Processor) - featuring friendly graphics user interface Networks
• Quad channel memory architecture - O.C. Tuner
• Supports Intel® Extreme Memory Profile (XMP) - CrashFree BIOS 3
* Hyper DIMM support is subject to the physical - EZ Flash 2
characteristics of individual CPUs. Please refer to Memory • Q Design
Networks
QVL(Qualified Vendors List) for details. - Q-Code
Expansion Slots • 40-Lane CPU-5 x PCI Express 3.0/2.0 x16 slots - Q-Shield
(x16, x16/x16, x16/x16/x8, x8/x8/x8/x8/x8 mode)* - Q-LED (CPU, DRAM, VGA, Boot Device LED)
• 28-Lane CPU-5 x PCI Express 3.0/2.0 x16 slots - Q-Slot
(x16, x16/x8, x16/x8/x4, x8/x8/x8/x4 mode)* - Q-DIMM
* When installing 28-Lane CPU,PCIe 3.0/2.0x16_4 cannot work. ASUS Special Features • Special Features:
Multi-GPU support • Supports AMD® Quad CrossFireX™ Technology - USB Charger+
• Supports NVIDIA® 3-Way SLI™ Technology* - Ai Charger+
* Supports up to 2-Way SLI™, When installing 28 lanes processor. - Disk Unlocker
Storage • Intel® X99 Express Chipset with RAID 0, 1, 5, 10 - MemOK!
(Controller 1 and Controller 2) - EZ XMP ODD & Storage ODD & Storage
- 8 x SATA 6.0 Gb/s ports (4 x right angle connectors from Workstation Exclusive • 5 PCIe x 16 slots
controller 1 , 4 x vertical connectors from controller 2) • 12K hours Capacitors
- Supports Intel® Smart Response Technology • ProCool Power Connector
- 1 x SATA Express port • Q-Code Logger
(gray, compatible with 2 x SATA 6.0 Gb/s ports) • ASUS Dr.Power
- 1 x M.2 Socket 3 with M Key, type 2260/2280 storage Back Panel I/O Ports • 1 x USB BIOS Flashback button
devices support (SATA/PCIE mode)* • 1 x Q-Code Logger button
* M.2 Socket 3 shares bandwidth with SATAExpress. • 4 x USB 3.0/2.0 ports (blue)
LAN • 2 x Intel® I210-AT Gigabit LAN controller • 2 x USB 2.0/1.1 ports
• 1 x Management LAN (1 supports USB BIOS Flashback, 1 supports Q-Code Logger)
Audio • Realtek® ALC1150 8-channel high definition audio CODEC • 1 x Optical S/PDIF Out port
featuring Crystal Sound 2 • 1 x Intel LAN (RJ45) ports
- Separate layer for left and right track, ensuring both • 1 x Management Port
sound deliver equal quality • 8-channel Audio I/O ports
- Audio shielding ensures precision analog/digital Internal I/O Connectors • 2 x USB 3.0/2.0 connectors support additional 4 USB ports
separation and greatly reduced multi-lateral interference (19-pin)
- Audio Amplifier to enhance the highest quality sound for • 2 x USB 2.0/1/1 connectors support additional 4 USB ports
headphone and speakers • 1 x M.2 Socket 3 (for M Key, type 2260/2280 devices)
- High quality 109dB SNR stereo playback output • 1 x SATA Express connectors (gray) Server & Workstation
(Line-out@back) & 104dB SNR recording input (Line-in) • 8 x SATA 6.0Gb/s connectors (4 x gray, 4 x black)
support • 1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and
- Absolute Pitch 192khz/24bit true BD lossless sound 4-pin(PWM mode) CPU coolers control with auto detection
- BD audio layer content protection support
- DTS UltraPC II • 1 x CPU OPT Fan connector (4-pin)
- DTS Connect • 4 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode)
- Supports jack-detection, multi-streaming, front panel and 4-pin(PWM mode) coolers control
jack-retasking (MIC) • Front panel audio connector (AAFP)
Server & Workstation
- Optical S/PDIF out port at back I/O • 1 x S/PDIF out header
USB • Intel® X99 Express Chipset • 1 x TPM connector
- 6 x USB 3.0/2.0 ports • 1 x 24-pin EATX Power connector
(4 ports at front panel, 2 ports at back panel) • 2 x 8-pin EATX 12V Power connector
- 6 x USB 2.0/1.1 ports • 1 x 6-pin EATX 12V_1 Power connector
(4 ports at mid-board, 2 ports at back panel) • 1 x System Panel
• ASMedia® USB 3.0 controllers • 1 x MemOK! button
- 2 x USB 3.0/2.0 ports at back panel(blue) • 1 x Clear CMOS button
ASUS Exclusive <DIGI+ Power Control> • 1 x 3-pin CHASSIS(Chassis intrution) connector Mini / Stick PC
Features • CPU Power • 1 x DRCT(Direct Key) connector
- Industry leading digital 8-phase power design • 1 x Dr.Power switch
• DRAM Power • 1 x TPU switch (advanced two-stage adjustments)
- Industry leading digital 4-phase DRAM power design • 1 x EPU switch
• TPU • 1 x EZ XMP switch
Mini / Stick PC
- TPU, 2-level TPU switch • 1 x Power-on button
• EPU • 1 x Reset button
- EPU, EPU switch • 1 x AUX panel header
• UEFI BIOS • 1 x SMBus headers
- Most advanced options with fast response time Form Factor • ATX Form Factor, 12”x 10”
• M.2 & SATA Express onboard * EEB Mounting Hole Locations.
- The latest transfer technology with up to 10Gb/s
data-transfer speeds for M.2 Note: The specifications are subject to changes without notice. Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
