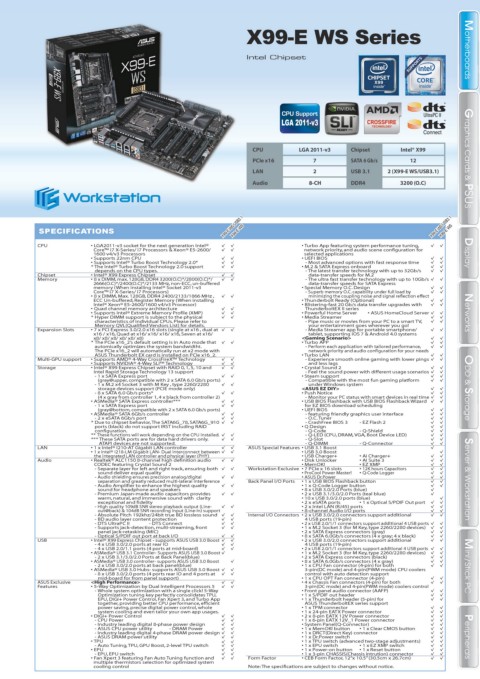

X99-E WS Series

Intel Chipset Motherboards Motherboards

CPU LGA 2011-v3 Chipset Intel® X99
PCIe x16 7 SATA 6 Gb/s 12 Graphics Cards & PSUS
LAN 2 USB 3.1 2 (X99-E WS/USB3.1)
Audio 8-CH DDR4 3200 (O.C)

Graphics Cards & PSUS
X99-E WS/USB3.1 X99-E WS/USB3.1
SPECIFICATIONS
X99-E WS X99-E WS
CPU • LGA2011-v3 socket for the next generation Intel® • Turbo App featuring system performance tuning,
Core™ i7 X-Series/ i7 Processors & Xeon® E5-2600/ network priority, and audio scene configuration for
1600 v4/v3 Processors selected applications Display Display
• Supports 22nm CPU • UEFI BIOS
• Supports Intel® Turbo Boost Technology 2.0* - Most advanced options with fast response time
* The Intel® Turbo Boost Technology 2.0 support • M.2 & SATA Express onboard
depends on the CPU types. - The latest transfer technology with up to 32Gb/s
Chipset • Intel® X99 Express Chipset data-transfer speeds for M.2
Memory • 8 x DIMM, max. 128GB, DDR4 3200(O.C)*/2800(O.C)*/ - The ultra fast transfer technology with up to 10Gb/s

2666(O.C)*/2400(O.C)*/2133 MHz, non-ECC, un-buffered data-transfer speeds for SATA Express
memory (When installing Intel® Socket 2011-v3 • Special Memory O.C. Design
Core™ i7 X-Series/ i7 Processors) - Superb memory O.C. capability under full load by
• 8 x DIMM, Max. 128GB, DDR4 2400/2133/1866 MHz , minimizing the coupling noise and signal reflection effect
ECC Un-buffered, Register Memory (When installing • Thunderbolt Ready (Optional)
Intel® Xeon® E5-2600/1600 v4/v3 Processor) • Blistering-fast 20 Gb/s data transfer upgrades with
• Quad channel memory architecture ThunderboltEX II series
• Supports Intel® Extreme Memory Profile (XMP) • Powerful Home Server • ASUS HomeCloud Server Networks
* Hyper DIMM support is subject to the physical • Media Streamer
characteristics of individual CPUs. Please refer to - Pipe music or movies from your PC to a smart TV,
Memory QVL(Qualified Vendors List) for details. your entertainment goes wherever you go!
Expansion Slots • 7 x PCI Express 3.0/2.0 x16 slots (single at x16 , dual at - Media Streamer app for portable smartphone/
Networks
x16 / x16, Quad at x16/ x16/ x16/ x16, Seven at x16/ tablet, supporting iOS 7 & Android 4.0 systems
x8/ x8/ x8/ x8/ x8/ x8) <Gaming Scenario>
* The PCIe x16_2’s default setting is in Auto mode that • Turbo APP
automically optimizes the system bandwidtht. - Perform each application with tailored performance,
The PCIe x16_2 will automatically run at x2 mode with network priority and audio configuration for your needs
ASUS Thunderbolt EX card is installed on PCIe x16_2. • Turbo LAN
Multi-GPU support • Supports AMD® 4-Way CrossFireX™ Technology - Experience smooth online gaming with lower pings
• Supports NVIDIA® 4-Way SLI™ Technology and less lags
Storage • Intel® X99 Express Chipset with RAID 0, 1, 5, 10 and • Crystal Sound 2
Intel Rapid Storage Technology 13 support - Feel the sound power with different usage scenarios
- 1 x SATA Express port • Steam support
(gray@upper, compatible with 2 x SATA 6.0 Gb/s ports) - Compatible with the most fun gaming platform
- 1 x M.2 x4 Socket 3 with M Key , type 2260/2280 under Windows system
storage devices support (PCIE mode only) <ASUS EZ DIY> ODD & Storage ODD & Storage
- 8 x SATA 6.0 Gb/s ports* • Push Notice
(4 x gray from controller 1, 4 x black from controller 2) - Monitor your PC status with smart devices in real time
• ASMedia® SATA Express controller*** • USB BIOS Flashback with USB BIOS Flashback Wizard
- 1 x SATA Express port for EZ BIOS download scheduling
(gray@bottom, compatible with 2 x SATA 6.0 Gb/s ports) • UEFI BIOS
• ASMedia® SATA 6Gb/s controller - featuring friendly graphics user interface
- 2 x eSATA 6Gb/s port - O.C. Tuner
* Due to chipset behavior, The SATA6G_78, SATA6G_910 - CrashFree BIOS 3 - EZ Flash 2
ports (black) do not support IRST including RAID • Q Design
configuration. - Q-Code - Q-Shield
** These functions will work depending on the CPU installed. - Q-LED (CPU, DRAM, VGA, Boot Device LED)
*** These SATA ports are for data hard drivers only. - Q-Slot
ATAPI devices are not supported. - Q-DIMM - Q-Connector
LAN • 1 x Intel® I210-AT Gigabit LAN controller ASUS Special Features • USB 3.1 Boost
• 1 x Intel® I218-LM Gigabit LAN- Dual interconnect between • USB 3.0 Boost
the integrated LAN controller and physical layer (PHY) • USB Charger+ • Ai Charger+
Audio • Realtek® ALC1150 8-channel high definition audio • Disk Unlocker • AI Suite 3
CODEC featuring Crystal Sound 2 • MemOK! • EZ XMP
- Separate layer for left and right track, ensuring both Workstation Exclusive • 7 PCIe x 16 slots • 12K hours Capacitors
sound deliver equal quality • ProCool Power Master! • Q-Code Logger
- Audio shielding ensures precision analog/digital • ASUS Dr.Power
separation and greatly reduced multi-lateral interference Back Panel I/O Ports • 1 x USB BIOS Flashback button Server & Workstation
- Audio Amplifier to enhance the highest quality • 1 x Q-Code Logger button
sound for headphone and speakers • 8 x USB 3.0/2.0 Ports (blue)
- Premium Japan-made audio capacitors provides • 2 x USB 3.1/3.0/2.0 Ports (teal blue)
warm, natural, and immersive sound with clarity • 10 x USB 3.0/2.0 ports (blue)
exceptional and fidelity • 2 x eSATA ports • 1 x Optical S/PDIF Out port
- High quality 109dB SNR stereo playback output (Line- • 2 x Intel LAN (RJ45) ports
out@back) & 104dB SNR recording input (Line-in) support • 8-channel Audio I/O ports
- Absolute Pitch 192khz/24bit true BD lossless sound Internal I/O Connectors • 2 x USB 3.0/2.0 connectors support additional
- BD audio layer content protection 4 USB ports (19-pin)
Server & Workstation
- DTS UltraPC II - DTS Connect • 2 x USB 2.0/1/1 connectors support additional 4 USB ports
- Supports jack-detection, multi-streaming, front • 1 x M.2 Socket 3 (for M Key, type 2260/2280 devices)
panel jack-retasking (MIC) • 2 x SATA Express connectors (gray)
- Optical S/PDIF out port at back I/O • 8 x SATA 6.0Gb/s connectors (4 x gray; 4 x black)
USB • Intel® X99 Express Chipset - supports ASUS USB 3.0 Boost • 2 x USB 3.0/2.0 connectors support additional
- 4 x USB 3.0/2.0 ports at rear IO 4 USB ports (19-pin)
- 4 x USB 2.0/1.1 ports (4 ports at mid-board) • 2 x USB 2.0/1/1 connectors support additional 4 USB ports
• ASMedia® USB 3.1 Controller- Supports ASUS USB 3.0 Boost • 1 x M.2 Socket 3 (for M Key, type 2260/2280 devices)
- 2 x USB 3.1/3.0/2.0 Ports at Back Panel(blue) • 2 x SATA Express connectors (black)
• ASMedia® USB 3.0 controller- supports ASUS USB 3.0 Boost • 8 x SATA 6.0Gb/s connectors (4 x gray)
- 2 x USB 3.0/2.0 ports at back panel(blue) • 1 x CPU Fan connector (4-pin) for both Mini / Stick PC
• ASMedia® USB 3.0 Hubs- supports ASUS USB 3.0 Boost 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers
- 8 x USB 3.0/2.0 ports (4 ports rear IO and 4 ports at control with auto detection support
mid-board for from panel support) • 1 x CPU OPT Fan connector (4-pin)
ASUS Exclusive <High Performance> • 4 x Chassis Fan connectors (4-pin) for both
Features • 5-Way Optimization by Dual Intelligent Processors 5 3-pin(DC mode) and 4-pin(PWM mode) coolers control
- Whole system optimization with a single click! 5-Way • Front panel audio connector (AAFP)
Optimization tuning key perfectly consolidates TPU, • 1 x S/PDIF out header
Mini / Stick PC
EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App • 1 x Thunderbolt header (5-pin) for
together, providing better CPU performance, efficient ASUS ThunderboltEX series support
power saving, precise digital power control, whole • 1 x TPM connector
system cooling and even tailor your own app usages. • 1 x 24-pin EATX Power connector
• DIGI+ Power Control • 2 x 8-pin EATX 12V Power connector
- CPU Power • 1 x 6-pin EATX 12V_1 Power connector
- Industry leading digital 8-phase power design • System Panel(Q-Connector)
- ASUS CPU power utility - DRAM Power • 1 x MemOK! button • 1 x Clear CMOS button
- Industry leading digital 4-phase DRAM power design • 1 x DRCT(Direct Key) connector
- ASUS DRAM power utility • 1 x Dr.Power switch Peripherals Peripherals
• TPU • 1 x TPU switch (advanced two-stage adjustments)
- Auto Tuning, TPU, GPU Boost, 2-level TPU switch • 1 x EPU switch • 1 x EZ XMP switch
• 1 x Power-on button
• EPU
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch. • 1 x Reset button

Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability. • 1 x 3-pin CHASSIS(Chassis intrution) connector

- EPU, EPU switch
• Fan Xpert 3 featuring Fan Auto Tuning function and Form Factor • CEB Form Factor, 12”x 10.5” (30.5cm x 26.7cm)
multiple thermistors selection for optimized system
ASUSWORLD
cooling control Note: The specifications are subject to changes without notice. 169
