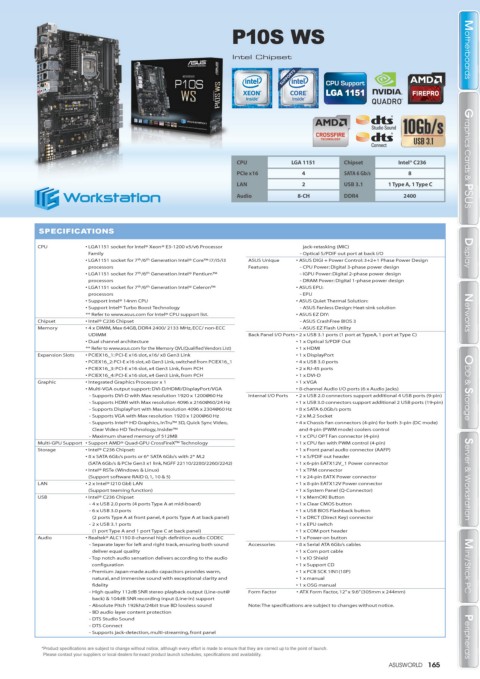

P10S WS

Intel Chipset Motherboards Motherboards

CPU LGA 1151 Chipset Intel® C236 Graphics Cards & PSUS
PCIe x16 4 SATA 6 Gb/s 8

LAN 2 USB 3.1 1 Type A, 1 Type C
Audio 8-CH DDR4 2400
Graphics Cards & PSUS

SPECIFICATIONS

CPU • LGA1151 socket for Intel® Xeon® E3-1200 v5/v6 Processor jack-retasking (MIC)

Family - Optical S/PDIF out port at back I/O Display
• LGA1151 socket for 7 th /6 th Generation Intel® Core™ i7/i5/i3 ASUS Unique • ASUS DIGI + Power Control: 3+2+1 Phase Power Design

processors Features - CPU Power: Digital 3-phase power design

Display

• LGA1151 socket for 7 th /6 th Generation Intel® Pentium™ - iGPU Power: Digital 2-phase power design

processors - DRAM Power: Digital 1-phase power design
• LGA1151 socket for 7 th /6 th Generation Intel® Celeron™ • ASUS EPU:

processors - EPU

• Support Intel® 14nm CPU • ASUS Quiet Thermal Solution:

• Support Intel® Turbo Boost Technology - ASUS Fanless Design: Heat-sink solution

** Refer to www.asus.com for Intel® CPU support list. • ASUS EZ DIY: Networks Networks
Chipset • Intel® C236 Chipset - ASUS CrashFree BIOS 3

Memory • 4 x DIMM, Max 64GB, DDR4 2400/ 2133 MHz, ECC/ non-ECC - ASUS EZ Flash Utility

UDIMM Back Panel I/O Ports • 2 x USB 3.1 ports (1 port at TypeA, 1 port at Type C)
• Dual channel architecture • 1 x Optical S/PDIF Out
** Refer to www.asus.com for the Memory QVL(Qualified Vendors List) • 1 x HDMI

Expansion Slots • PCIEX16_1: PCI-E x16 slot, x16/ x8 Gen3 Link • 1 x DisplayPort

• PCIEX16_2: PCI-E x16 slot, x8 Gen3 Link, switched from PCIEX16_1 • 4 x USB 3.0 ports

• PCIEX16_3: PCI-E x16 slot, x4 Gen3 Link, from PCH • 2 x RJ-45 ports

• PCIEX16_4: PCI-E x16 slot, x4 Gen3 Link, from PCH • 1 x DVI-D
Graphic • Integrated Graphics Processor x 1 • 1 x VGA
• Multi-VGA output support: DVI-D/HDMI/DisplayPort/VGA • 8-channel Audio I/O ports (6 x Audio jacks) ODD & Storage
- Supports DVI-D with Max resolution 1920 x 1200@60 Hz Internal I/O Ports • 2 x USB 2.0 connectors support additional 4 USB ports (9-pin)

- Supports HDMI with Max resolution 4096 x 2160@60/24 Hz • 1 x USB 3.0 connectors support additional 2 USB ports (19-pin)

- Supports DisplayPort with Max resolution 4096 x 2304@60 Hz • 8 x SATA 6.0Gb/s ports

- Supports VGA with Max resolution 1920 x 1200@60 Hz • 2 x M.2 Socket

- Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, • 4 x Chassis Fan connectors (4-pin) for both 3-pin (DC mode)

ODD & Storage
Clear Video HD Technology, Insider™ and 4-pin (PWM mode) coolers control

- Maximum shared memory of 512MB • 1 x CPU OPT Fan connector (4-pin)

Multi-GPU Support • Support AMD® Quad-GPU CrossFireX™ Technology • 1 x CPU fan with PWM control (4-pin)

Storage • Intel® C236 Chipset: • 1 x Front panel audio connector (AAFP)

• 8 x SATA 6Gb/s ports or 6* SATA 6Gb/s with 2* M.2 • 1 x S/PDIF out header

(SATA 6Gb/s & PCIe Gen3 x1 link, NGFF 22110/2280/2260/2242) • 1 x 6-pin EATX12V_1 Power connector

• Intel® RSTe (Windows & Linux) • 1 x TPM connector

(Support software RAID 0, 1, 10 & 5) • 1 x 24-pin EATX Power connector Server & Workstation

LAN • 2 x Intel® I210 GbE LAN • 1 x 8-pin EATX12V Power connector

(Support teaming function) • 1 x System Panel (Q-Connector)

USB • Intel® C236 Chipset • 1 x MemOK! Button

- 4 x USB 2.0 ports (4 ports Type A at mid-board) • 1 x Clear CMOS button

- 6 x USB 3.0 ports • 1 x USB BIOS Flashback button

(2 ports Type A at front panel, 4 ports Type A at back panel) • 1 x DRCT (Direct Key) connector
Server & Workstation
- 2 x USB 3.1 ports • 1 x EPU switch

(1 port Type A and 1 port Type C at back panel) • 1 x COM port header

Audio • Realtek® ALC1150 8-channel high definition audio CODEC • 1 x Power-on button

- Separate layer for left and right track, ensuring both sound Accessories • 8 x Serial ATA 6Gb/s cables

deliver equal quality • 1 x Com port cable

- Top notch audio sensation delivers according to the audio • 1 x IO Shield

configuration • 1 x Support CD Mini / Stick PC Mini / Stick PC
- Premium Japan-made audio capacitors provides warm, • 1 x PCB SCK 1IN1(18P)

natural, and immersive sound with exceptional clarity and • 1 x manual
fidelity • 1 x OSG manual

- High quality 112dB SNR stereo playback output (Line-out@ Form Factor • ATX Form Factor, 12” x 9.6” (305mm x 244mm)

back) & 104dB SNR recording input (Line-in) support
- Absolute Pitch 192khz/24bit true BD lossless sound Note: The specifications are subject to changes without notice.

- BD audio layer content protection

- DTS Studio Sound

- DTS Connect

- Supports jack-detection, multi-streaming, front panel Peripherals Peripherals

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
