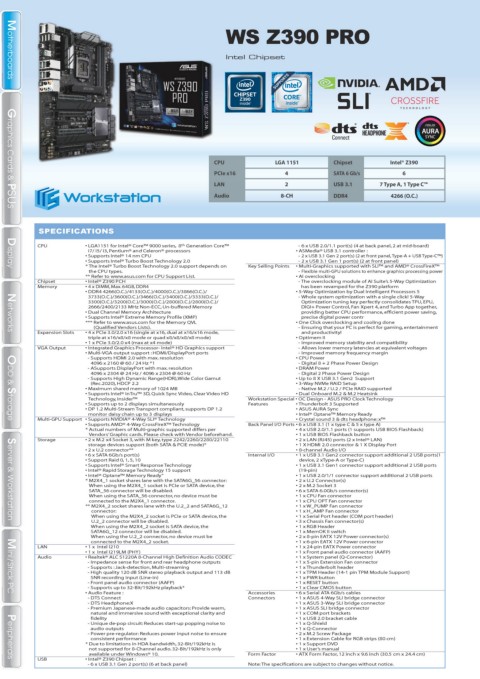

WS Z390 PRO

Intel Chipset

Motherboards
Motherboards

CPU LGA 1151 Chipset Intel® Z390
PCIe x16 4 SATA 6 Gb/s 6
LAN 2 USB 3.1 7 Type A, 1 Type C™
Audio 8-CH DDR4 4266 (O.C.)
Graphics Cards & PSUS
Graphics Cards & PSUS
SPECIFICATIONS
SPECIFICA
TIONS
CPU • LGA1151 for Intel® Core™ 9000 series, 8 th Generation Core™ - 6 x USB 2.0/1.1 port(s) (4 at back panel, 2 at mid-board)

i7/ i5/ i3, Pentium® and Celeron® processors • ASMedia® USB 3.1 controller :

• Supports Intel® 14 nm CPU - 2 x USB 3.1 Gen 2 port(s) (2 at front panel, Type-A + USB Type-C™)

• Supports Intel® Turbo Boost Technology 2.0 - 2 x USB 3.1 Gen 1 port(s) (2 at front panel)

* The Intel® Turbo Boost Technology 2.0 support depends on Key Selling Points • Multi-Graphics supported with SLI™ and AMD® CrossFireX™

Display
Display
the CPU types. - Flexible multi-GPU solutions to enhance graphics processing power

** Refer to www.asus.com for CPU Support List. • AI overclocking

Chipset • Intel® Z390 PCH - The overclocking module of AI Suite’s 5-Way Optimization

Memory • 4 x DIMM, Max. 64GB, DDR4 has been revamped for the Z390 platform
• DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ • 5-Way Optimization by Dual Intelligent Processors 5
3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/ - Whole system optimization with a single click! 5-Way

3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/ 2800(O.C.)/ Optimization tuning key perfectly consolidates TPU, EPU,
2666/2400/2133 MHz Non-ECC, Un-buffered Memory DIGI+ Power Control, Fan Xpert 4, and Turbo App together,

• Dual Channel Memory Architecture providing better CPU performance, efficient power saving,
• Supports Intel® Extreme Memory Profile (XMP) precise digital power contr

*** Refer to www.asus.com for the Memory QVL • One Click overclocking and cooling done

(Qualified Vendors Lists). - Ensuring that your PC is perfect for gaming, entertainment

Expansion Slots • 4 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x16 mode, and productivity!
Networks
Networks
triple at x16/x8/x8 mode or quad x8/x8/x8/x8 mode) • Optimem II
• 1 x PCIe 3.0/2.0 x4 (max at x4 mode) - Improved memory stability and compatibility

VGA Output • Integrated Graphics Processor- Intel® HD Graphics support - Allows lower memory latencies at equivalent voltages

• Multi-VGA output support : HDMI/DisplayPort ports - Improved memory frequency margin

- Supports HDMI 2.0 with max. resolution • CPU Power

4096 x 2160 @ 60 / 24 Hz *1 - Digital 8 + 2 Phase Power Design

- ASupports DisplayPort with max. resolution • DRAM Power

4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz - Digital 2 Phase Power Design

- Supports High Dynamic Range(HDR),Wide Color Gamut • Up to 8 X USB 3.1 Gen2 Support
(Rec.2020), HDCP 2.2 • 3-Way NVMe RAID Setup

• Maximum shared memory of 1024 MB - Native M.2 / U.2 / PCIe RAID supported

• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD • Dual Onboard M.2 & M.2 Heatsink
Technology, Insider™ Workstation Special • OC Design - ASUS PRO Clock Technology
• Supports up to 2 displays simultaneously Features • Thunderbolt 3 Supported

• DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 • ASUS AURA Sync

monitor daisy chain up to 3 displays • Intel® Optane™ Memory Ready

Multi-GPU Support • Supports NVIDIA® 4-Way SLI® Technology • Crystal sound 3 & dts headphone: x™

ODD & Storage
ODD & Storage
• Supports AMD® 4-Way CrossFireX™ Technology Back Panel I/O Ports • 6 x USB 3.1 (1 x type C & 5 x type A)

* Actual numbers of Multi-graphic supported differs per • 4 x USB 2.0/1.1 ports (1 supports USB BIOS Flashback)

Vendors’ Graphic cards. Please check with Vendor beforehand. • 1 x USB BIOS Flashback button

Storage • 2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 • 2 x LAN (RJ45) ports (2 x Intel® LAN)

storage devices support (both SATA & PCIE mode)* • 1 X HDMI 2.0 connector & 1 X Display Port
• 2 x U.2 connector** • 8-channel Audio I/O

• 6 x SATA 6Gb/s port(s) Internal I/O • 1 x USB 3.1 Gen2 connector support additional 2 USB ports(1
• Support Raid 0, 1, 5, 10 device, 2 xType-A or Type-C)
• Supports Intel® Smart Response Technology • 1 x USB 3.1 Gen1 connector support additional 2 USB ports

• Intel® Rapid Storage Technology 15 support (19-pin)

• Intel® Optane™ Memory Ready” • 1 x USB 2.0/1/1 connector support additional 2 USB ports

* M2X4_1 socket shares lane with the SATA6G_56 connector: • 2 x U.2 Connector(s)

When using the M2X4_1 socket is PCIe or SATA device, the • 2 x M.2 Socket 3

SATA_56 connector will be disabled. • 6 x SATA 6.0Gb/s connector(s)

When using the SATA_56 connector, no device must be • 1 x CPU Fan connector

connected to the M2X4_1 connector. • 1 x CPU OPT Fan connector

** M2X4_2 socket shares lane with the U.2_2 and SATA6G_12 • 1 x W_PUMP Fan connector

connector: • 1 x H_AMP Fan connector

When using the M2X4_2 socket is PCIe or SATA device, the • 1 x Serial Port header (COM port header)

U.2_2 connector will be disabled. • 3 x Chassis Fan connector(s)

Server & Workstation
Server & Workstation
When using the M2X4_2 socket is SATA device, the • 1 x RGB Header

SATA6G_12 connector will be disabled. • 1 x MemOK II switch

When using the U.2_2 connector, no device must be • 2 x 8-pin EATX 12V Power connector(s)

connected to the M2X4_2 socket. • 1 x 6-pin EATX 12V Power connector

LAN • 1 x Intel I210 • 1 x 24-pin EATX Power connector

• 1 x Intel I219LM (PHY) • 1 x Front panel audio connector (AAFP)

Audio • Realtek® ALC S1220A 8-Channel High Definition Audio CODEC • 1 x System panel (Q-Connector)

- Impedance sense for front and rear headphone outputs • 1 x 5-pin Extension Fan connector

- Supports : Jack-detection, Multi-streaming • 1 x Thunderbolt header

- High quality 120 dB SNR stereo playback output and 113 dB • 1 x TPM Header (14-1 pin TPM Module Support)

SNR recording input (Line-in) • 1 x PWR button

- Front panel audio connector (AAFP) • 1 x RESET button

- Supports up to 32-Bit/192kHz playback* • 1 x Clear CMOS button

• Audio Feature : Accessories • 6 x Serial ATA 6Gb/s cables
Mini / Stick PC
Mini / Stick PC
- DTS Connect Connectors • 1 x ASUS 4-Way SLI bridge connector

- DTS Headphone:X • 1 x ASUS 3-Way SLI bridge connector

- Premium Japanese-made audio capacitors: Provide warm, • 1 x ASUS SLI bridge connector

natural and immersive sound with exceptional clarity and • 1 x COM port brackets

fidelity • 1 x USB 2.0 bracket cable

- Unique de-pop circuit: Reduces start-up popping noise to • 1 x Q-Shield
audio outputs • 1 x Q-Connector

- Power pre-regulator: Reduces power input noise to ensure • 2 x M.2 Screw Package

consistent performance • 1 x Extension Cable for RGB strips (80 cm)

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is • 1 x Support DVD

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.

• 1 x User’s manual

not supported for 8-Channel audio. 32-Bit/192kHz is only
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability. • ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Form Factor
available under Windows® 10.
USB • Intel® Z390 Chipset :
Peripherals
Peripherals
160
ASUSWORLD Note: The specifications are subject to changes without notice.
- 6 x USB 3.1 Gen 2 port(s) (6 at back panel)
