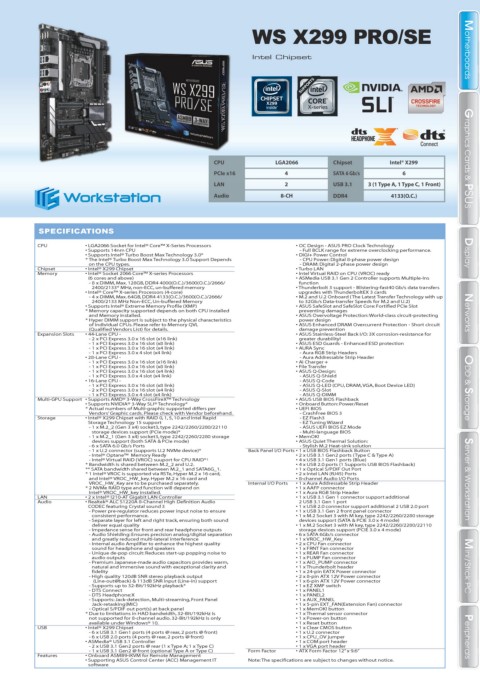

WS X299 PRO WS X299 PRO/SE

Intel Chipset Intel Chipset Motherboards Motherboards

CPU LGA2066 Chipset Intel® X299 Graphics Cards & PSUS
PCIe x16 4 SATA 6 Gb/s 6
LAN 2 USB 3.1 3 (1 Type A, 1 Type C, 1 Front)
Audio 8-CH DDR4 4133(O.C.)
Graphics Cards & PSUS

SPECIFICATIONS

CPU • LGA2066 Socket for Intel® Core™ X-Series Processors • OC Design - ASUS PRO Clock Technology

• Supports 14nm CPU - Full BCLK range for extreme overclocking performance.

• Supports Intel® Turbo Boost Max Technology 3.0* • DIGI+ Power Control Display Display

* The Intel® Turbo Boost Max Technology 3.0 Support Depends - CPU Power: Digital 8-phase power design

on the CPU types. - DRAM: Digital 2-phase power design

Chipset • Intel® X299 Chipset • Turbo LAN

Memory • Intel® Socket 2066 Core™ X-series Processors • Intel Virtual RAID on CPU (VROC) ready
(6 cores and above) • ASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins

- 8 x DIMM, Max. 128GB, DDR4 4000(O.C.)/3600(O.C.)/2666/ function

2400/2133* MHz, non-ECC, un-buffered memory • Thunderbolt 3 support - Blistering-fast40 Gb/s data transfers
• Intel® Core™ X-series Processors (4-core) upgrades with ThunderboltEX 3 cards

- 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/3600(O.C.)/2666/ • M.2 and U.2 Onboard (The Latest Transfer Technology with up
2400/2133 MHz Non-ECC, Un-buffered Memory to 32Gb/s Data-transfer Speeds for M.2 and U.2)

• Supports Intel® Extreme Memory Profile (XMP) • ASUS SafeSlot and SafeSlot Core: Fortified PCIe Slot

* Memory capacity supported depends on both CPU installed preventing damages Networks Networks
and Memory installed. • ASUS Overvoltage Protection: World-class circuit-protecting

* Hyper DIMM support is subject to the physical characteristics power design

of individual CPUs. Please refer to Memory QVL • ASUS Enhanced DRAM Overcurrent Protection - Short circuit
(Qualified Vendors List) for details. damage prevention

Expansion Slots • 44-Lane CPU - • ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for

- 2 x PCI Express 3.0 x 16 slot (x16 link) greater durability!

- 1 x PCI Express 3.0 x 16 slot (x8 link) • ASUS ESD Guards - Enhanced ESD protection

- 1 x PCI Express 3.0 x 16 slot (x4 link) • AURA Sync

- 1 x PCI Express 3.0 x 4 slot (x4 link)

• 28-Lane CPU - - Aura Addressable Strip Header

- 1 x PCI Express 3.0 x 16 slot (x16 link) • Ai Charger +

- 1 x PCI Express 3.0 x 16 slot (x8 link) • File Transfer
- 1 x PCI Express 3.0 x 16 slot (x4 link) • ASUS Q-Design:

- 1 x PCI Express 3.0 x 4 slot (x4 link) - ASUS Q-Shield

• 16-Lane CPU - - ASUS Q-Code

- 1 x PCI Express 3.0 x 16 slot (x8 link) - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- 2 x PCI Express 3.0 x 16 slot (x4 link) - ASUS Q-Slot ODD & Storage

- 1 x PCI Express 3.0 x 4 slot (x4 link) - ASUS Q-DIMM
Multi-GPU Support • Supports AMD® 3-Way CrossFireX™ Technology • ASUS USB BIOS Flashback
• Supports NVIDIA® 3-Way SLI® Technology* • Onboard Button: Power/Reset

* Actual numbers of Multi-graphic supported differs per • UEFI BIOS

Vendors’ Graphic cards. Please check with Vendor beforehand. - CrashFree BIOS 3

Storage • Intel® X299 Chipset with RAID 0, 1, 5, 10 and Intel Rapid - EZ Flash3

Storage Technology 15 support - EZ Tuning Wizard

- Aura RGB Strip Headers ODD & Storage

- 1 x M.2_2 (Gen 3 x4) socket3, type 2242/2260/2280/22110 - ASUS UEFI BIOS EZ Mode

storage devices support (PCIe mode)* - Multi-language BIOS

- 1 x M.2_1 (Gen 3 x4) socket3, type 2242/2260/2280 storage • MemOK!

devices support (both SATA & PCIe mode) • ASUS Quiet Thermal Solution:
- 6 x SATA 6.0 Gb/s Ports - Stylish M.2 Heat-sink solution

- 1 x U.2 connector (supports U.2 NVMe device)* Back Panel I/O Ports • 1 x USB BIOS Flashback Button
- Intel® Optane™ Memory Ready • 2 x USB 3.1 Gen2 ports (Type C & Type A)
- Intel® Virtual RAID (VROC) suuport for CPU RAID* 1 • 4 x USB 3.1 Gen1 ports (Blue)

* Bandwidth is shared between M.2_2 and U.2. • 4 x USB 2.0 ports (1 Supports USB BIOS Flashback)
** SATA bandwidth shared between M.2_1 and SATA6G_1. • 1 x Optical S/PDIF Out Port
* 1 Intel® VROC is supported via RSTe, Hyper M.2 x 16 card, • 2 x Intel LAN (RJ45) Ports

and Intel® VROC_HW_key. Hyper M.2 x 16 card and • 8-channel Audio I/O Ports Server & Workstation Server & Workstation
VROC_HW_Key are to be purchased separately. Internal I/O Ports • 1 x Aura Addressable Strip Header

* 2 NVMe RAID type and function will depend on • 1 x AAFP connector
Intel® VROC_HW_key installed. • 1 x Aura RGB Strip Header

LAN • 2 x Intel® I210-AT Gigabit LAN Controller • 1 x USB 3.1 Gen 1 connector support additional
Audio • Realtek® ALC S1220A 8-Channel High Definition Audio 2 USB 3.1 Gen 1 port

CODEC featuring Crystal sound 3 • 1 x USB 2.0 connector support additional 2 USB 2.0 port

- Power pre-regulator reduces power input noise to ensure • 1 x USB 3.1 Gen 2 front panel connector

consistent performance. • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage

- Separate layer for left and right track, ensuring both sound devices support (SATA & PCIE 3.0 x 4 mode)
deliver equal quality • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110

- Impedance sense for front and rear headphone outputs storage devices support (PCIE 3.0 x 4 mode)

- Audio Shielding: Ensures precision analog/digital separation • 6 x SATA 6Gb/s connector

and greatly reduced multi-lateral interference • 1 x VROC_HW_Key

- Internal audio Amplifier to enhance the highest quality • 2 x CPU Fan connector

sound for headphone and speakers • 1 x FRNT Fan connector
- Unique de-pop circuit: Reduces start-up popping noise to • 1 x REAR Fan connector

audio outputs • 1 x PUMP Fan connector

- Premium Japanese-made audio capacitors provides warm, • 1 x AIO_PUMP connector

natural and immersive sound with exceptional clarity and • 1 x Thunderbolt header Mini / Stick PC Mini / Stick PC

fidelity • 1 x 24-pin EATX Power connector

- High quality 120dB SNR stereo playback output • 2 x 8-pin ATX 12V Power connector

(Line-out@back) & 113dB SNR input (Line-in) support • 1 x 6-pin ATX 12V Power connector

- Supports up to 32-Bit/192kHz playback* • 1 x EZ XMP switch

- DTS Connect • 1 x PANEL1

- DTS Headphone:X • 1 x PANEL2

- Supports: Jack-detection, Multi-streaming, Front Panel • 1 x AUX_PANEL

Jack-retasking(MIC) • 1 x 5-pin EXT_FAN(Extension Fan) connector

- Optical S/PDIF out port(s) at back panel • 1 x MemOK! button

* Due to limitations in HAD bandwidth, 32-Bit/192kHz is
not supported for 8-channel audio. 32-Bit/192kHz is only • 1 x Power-on button

available under Windows® 10. • 1 x Reset button
USB • Intel® X299 Chipset • 1 x Clear CMOS button

- 6 x USB 3.1 Gen1 ports (4 ports @ rear, 2 ports @ front) • 1 x U.2 connector

- 6 x USB 2.0 ports (4 ports @ rear, 2 ports @ front) • 1 x CPU_OV jumper Peripherals

• ASMedia® USB 3.1 Controller • 1 x COM port header
