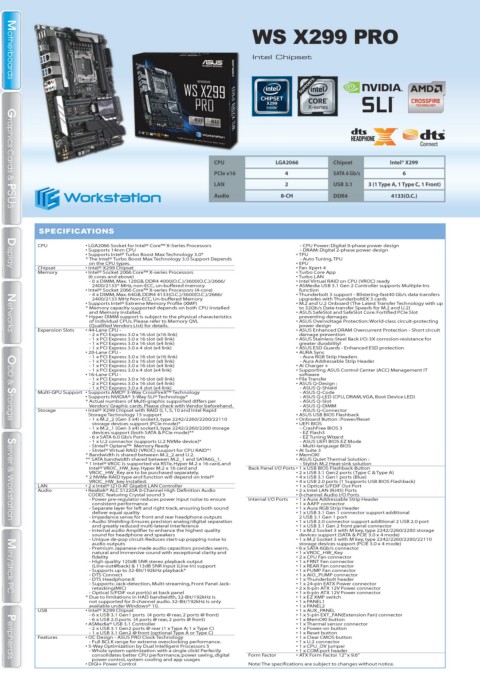

Page 156 - ASUS_WORLD_134_ebook

WS X299 PRO

Intel Chipset

Motherboards
Motherboards

CPU LGA2066 Chipset Intel® X299
PCIe x16 4 SATA 6 Gb/s 6
LAN 2 USB 3.1 3 (1 Type A, 1 Type C, 1 Front)
Audio 8-CH DDR4 4133(O.C.)
Graphics Cards & PSUS
Graphics Cards & PSUS
SPECIFICATIONS

CPU • LGA2066 Socket for Intel® Core™ X-Series Processors - CPU Power: Digital 8-phase power design

• Supports 14nm CPU - DRAM: Digital 2-phase power design

• Supports Intel® Turbo Boost Max Technology 3.0* • TPU

* The Intel® Turbo Boost Max Technology 3.0 Support Depends - Auto Tuning, TPU
on the CPU types. • EPU
Chipset • Intel® X299 Chipset • Fan Xpert 4
Display
Display

Memory • Intel® Socket 2066 Core™ X-series Processors • Turbo Core App

(6 cores and above) • Turbo LAN

- 8 x DIMM, Max. 128GB, DDR4 4000(O.C.)/3600(O.C.)/2666/ • Intel Virtual RAID on CPU (VROC) ready

2400/2133* MHz, non-ECC, un-buffered memory • ASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins
• Intel® Socket 2066 Core™ X-series Processors (4-core) function

- 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/3600(O.C.)/2666/ • Thunderbolt 3 support - Blistering-fast40 Gb/s data transfers

2400/2133 MHz Non-ECC, Un-buffered Memory upgrades with ThunderboltEX 3 cards

• Supports Intel® Extreme Memory Profile (XMP) • M.2 and U.2 Onboard (The Latest Transfer Technology with up
* Memory capacity supported depends on both CPU installed to 32Gb/s Data-transfer Speeds for M.2 and U.2)

and Memory installed. • ASUS SafeSlot and SafeSlot Core: Fortified PCIe Slot
* Hyper DIMM support is subject to the physical characteristics preventing damages

of individual CPUs. Please refer to Memory QVL • ASUS Overvoltage Protection: World-class circuit-protecting

(Qualified Vendors List) for details. power design

Expansion Slots • 44-Lane CPU - • ASUS Enhanced DRAM Overcurrent Protection - Short circuit

Networks
Networks
- 2 x PCI Express 3.0 x 16 slot (x16 link) damage prevention

- 1 x PCI Express 3.0 x 16 slot (x8 link) • ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for

- 1 x PCI Express 3.0 x 16 slot (x4 link) greater durability!

- 1 x PCI Express 3.0 x 4 slot (x4 link) • ASUS ESD Guards - Enhanced ESD protection

• 28-Lane CPU - • AURA Sync

- 1 x PCI Express 3.0 x 16 slot (x16 link) - Aura RGB Strip Headers

- 1 x PCI Express 3.0 x 16 slot (x8 link) - Aura Addressable Strip Header

- 1 x PCI Express 3.0 x 16 slot (x4 link) • Ai Charger +

- 1 x PCI Express 3.0 x 4 slot (x4 link) • Supporting ASUS Control Center (ACC) Management IT

• 16-Lane CPU - software

- 1 x PCI Express 3.0 x 16 slot (x8 link) • File Transfer
- 2 x PCI Express 3.0 x 16 slot (x4 link) • ASUS Q-Design :

- 1 x PCI Express 3.0 x 4 slot (x4 link) - ASUS Q-Shield

Multi-GPU Support • Supports AMD® 3-Way CrossFireX™ Technology - ASUS Q-Code

• Supports NVIDIA® 3-Way SLI® Technology* - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

* Actual numbers of Multi-graphic supported differs per - ASUS Q-Slot

Vendors’ Graphic cards. Please check with Vendor beforehand. - ASUS Q-DIMM

Storage • Intel® X299 Chipset with RAID 0, 1, 5, 10 and Intel Rapid - ASUS Q-Connector

Storage Technology 15 support • ASUS USB BIOS Flashback
- 1 x M.2_2 (Gen 3 x4) socket3, type 2242/2260/2280/22110 • Onboard Button : Power/Reset

storage devices support (PCIe mode)* • UEFI BIOS
ODD & Storage
ODD & Storage
- 1 x M.2_1 (Gen 3 x4) socket3, type 2242/2260/2280 storage - CrashFree BIOS 3

devices support (both SATA & PCIe mode)** - EZ Flash3

- 6 x SATA 6.0 Gb/s Ports - EZ Tuning Wizard

- 1 x U.2 connector (supports U.2 NVMe device)* - ASUS UEFI BIOS EZ Mode

- SIntel® Optane™ Memory Ready - Multi-language BIOS
- SIntel® Virtual RAID (VROC) suuport for CPU RAID* 1 • AI Suite 3

* Bandwidth is shared between M.2_2 and U.2. • MemOK!
** SATA bandwidth shared between M.2_1 and SATA6G_1. • ASUS Quiet Thermal Solution :

* 1 Intel® VROC is supported via RSTe, Hyper M.2 x 16 card, and - Stylish M.2 Heat-sink solution

Intel® VROC_HW_key. Hyper M.2 x 16 card and Back Panel I/O Ports • 1 x USB BIOS Flashback Button
VROC_HW_Key are to be purchased separately. • 2 x USB 3.1 Gen2 ports (Type C & Type A)

* 2 NVMe RAID type and function will depend on Intel® • 4 x USB 3.1 Gen1 ports (Blue)

VROC_HW_key installed. • 4 x USB 2.0 ports (1 Supports USB BIOS Flashback)

LAN • 2 x Intel® I210-AT Gigabit LAN Controller • 1 x Optical S/PDIF Out Port
Audio • Realtek® ALC S1220A 8-Channel High Definition Audio • 2 x Intel LAN (RJ45) Ports

CODEC featuring Crystal sound 3 • 8-channel Audio I/O Ports

- Power pre-regulator reduces power input noise to ensure Internal I/O Ports • 1 x Aura Addressable Strip Header
consistent performance • 1 x AAFP connector

- Separate layer for left and right track, ensuring both sound • 1 x Aura RGB Strip Header

deliver equal quality • 1 x USB 3.1 Gen 1 connector support additional

- Impedance sense for front and rear headphone outputs 2 USB 3.1 Gen 1 port
- Audio Shielding: Ensures precision analog/digital separation • 1 x USB 2.0 connector support additional 2 USB 2.0 port

Server & Workstation
Server & Workstation
and greatly reduced multi-lateral interference • 1 x USB 3.1 Gen 2 front panel connector

- Internal audio Amplifier to enhance the highest quality • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage

sound for headphone and speakers devices support (SATA & PCIE 3.0 x 4 mode)

- Unique de-pop circuit: Reduces start-up popping noise to • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110

audio outputs storage devices support (PCIE 3.0 x 4 mode)

- Premium Japanese-made audio capacitors provides warm, • 6 x SATA 6Gb/s connector

natural and immersive sound with exceptional clarity and • 1 x VROC_HW_Key

• 2 x CPU Fan connector
Mini

- High quality 120dB SNR stereo playback output • 1 x FRNT Fan connector
(Line-out@back) & 113dB SNR input (Line-in) support • 1 x REAR Fan connector

- Supports up to 32-Bit/192kHz playback* • 1 x PUMP Fan connector

- DTS Connect • 1 x AIO_PUMP connector

- DTS Headphone:X • 1 x Thunderbolt header

- Supports: Jack-detection, Multi-streaming, Front Panel Jack- • 1 x 24-pin EATX Power connector

retasking(MIC) • 2 x 8-pin ATX 12V Power connector

- Optical S/PDIF out port(s) at back panel • 1 x 6-pin ATX 12V Power connector

Mini / Stick PC
fidelity/ Stick PC

* Due to limitations in HAD bandwidth, 32-Bit/192kHz is • 1 x EZ XMP switch

not supported for 8-channel audio. 32-Bit/192kHz is only • 1 x PANEL1
available under Windows® 10. • 1 x PANEL2
USB • Intel® X299 Chipset • 1 x AUX_PANEL

- 6 x USB 3.1 Gen1 ports (4 ports @ rear, 2 ports @ front) • 1 x 5-pin EXT_FAN(Extension Fan) connector

- 6 x USB 2.0 ports (4 ports @ rear, 2 ports @ front) • 1 x MemOK! button

• ASMedia® USB 3.1 Controller • 1 x Thermal sensor connector

- 2 x USB 3.1 Gen2 ports @ rear (1 x Type A; 1 x Type C) • 1 x Power-on button

- 1 x USB 3.1 Gen2 @ front (optional Type A or Type C) • 1 x Reset button

Features • OC Design - ASUS PRO Clock Technology • 1 x Clear CMOS button

- Full BCLK range for extreme overclocking performance. • 1 x U.2 connector

• 5-Way Optimization by Dual Intelligent Processors 5 • 1 x CPU_OV jumper

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.

- Whole system optimization with a single click! Perfectly • 1 x COM port header
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability. • ATX Form Factor 12” x 9.6”
Form Factor
consolidates better CPU performance, power saving, digital
power control, system cooling and app usages
Peripherals
