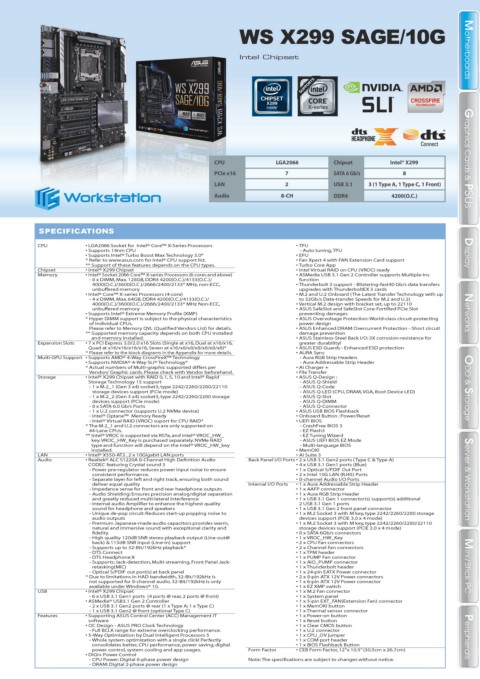

WS X299 SAGE/10G

Intel Chipset Motherboards Motherboards

CPU LGA2066 Chipset Intel® X299 Graphics Cards & PSUS
PCIe x16 7 SATA 6 Gb/s 8
LAN 2 USB 3.1 3 (1 Type A, 1 Type C, 1 Front)
Audio 8-CH DDR4 4200(O.C.)
Graphics Cards & PSUS

SPECIFICATIONS

CPU • LGA2066 Socket for Intel® Core™ X-Series Processors • TPU
• Supports 14nm CPU - Auto tuning, TPU

• Supports Intel® Turbo Boost Max Technology 3.0* • EPU Display Display

* Refer to www.asus.com for Intel® CPU support list. • Fan Xpert 4 with FAN Extension Card support
** Support of these features depends on the CPU types. • Turbo Core App
Chipset • Intel® X299 Chipset • Intel Virtual RAID on CPU (VROC) ready
Memory • Intel® Socket 2066 Core™ X-series Processors (6 cores and above) • ASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins

- 8 x DIMM, Max. 128GB, DDR4 4200(O.C.)/4133(O.C.)/ function

4000(O.C.)/3600(O.C.)/2666/2400/2133* MHz, non-ECC, • Thunderbolt 3 support - Blistering-fast40 Gb/s data transfers

unbuffered memory upgrades with ThunderboltEX 3 cards
• Intel® Core™ X-series Processors (4-core) • M.2 and U.2 Onboard (The Latest Transfer Technology with up

- 4 x DIMM, Max. 64GB, DDR4 4200(O.C.)/4133(O.C.)/ to 32Gb/s Data-transfer Speeds for M.2 and U.2)

4000(O.C.)/3600(O.C.)/2666/2400/2133* MHz Non-ECC, • Vertical M.2 design with bracket set, up to 22110

unbuffered memory • ASUS SafeSlot and SafeSlot Core: Fortified PCIe Slot

• Supports Intel® Extreme Memory Profile (XMP) preventing damages Networks Networks

* Hyper DIMM support is subject to the physical characteristics • ASUS Overvoltage Protection: World-class circuit-protecting

of individual CPUs. power design

Please refer to Memory QVL (Qualified Vendors List) for details. • ASUS Enhanced DRAM Overcurrent Protection - Short circuit

** Supported memory capacity depends on both CPU installed damage prevention

and memory installed. • ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for

Expansion Slots • 7 x PCI Express 3.0/2.0 x16 Slots (Single at x16, Dual at x16/x16, greater durability!

Quad at x16/x16/x16/x16, Seven at x16/x8/x8/x8/x8/x8/x8)* • ASUS ESD Guards - Enhanced ESD protection

* Please refer to the block diagrams in the Appendix for more details. • AURA Sync

Multi-GPU Support • Supports AMD® 4-Way CrossFireX™ Technology - Aura RGB Strip Headers
• Supports NVIDIA® 4-Way SLI® Technology* - Aura Addressable Strip Header

* Actual numbers of Multi-graphic supported differs per • Ai Charger +

Vendors’ Graphic cards. Please check with Vendor beforehand. • File Transfer

Storage • Intel® X299 Chipset with RAID 0, 1, 5, 10 and Intel® Rapid • ASUS Q-Design :

Storage Technology 15 support - ASUS Q-Shield

- 1 x M.2_1 (Gen 3 x4) socket3, type 2242/2260/2280/22110 - ASUS Q-Code ODD & Storage ODD & Storage

storage devices support (PCIe mode) - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- 1 x M.2_2 (Gen 3 x4) socket3, type 2242/2260/2280 storage - ASUS Q-Slot
devices support (PCIe mode) - ASUS Q-DIMM

- 8 x SATA 6.0 Gb/s Ports - ASUS Q-Connector

- 1 x U.2 connector (supports U.2 NVMe device) • ASUS USB BIOS Flashback

- Intel® Optane™ Memory Ready • Onboard Button : Power/Reset

- Intel® Virtual RAID (VROC) suport for CPU RAID* • UEFI BIOS

* The M.2_1 and U.2 connectors are only supported on - CrashFree BIOS 3

44-Lane CPUs. - EZ Flash3

** Intel® VROC is supported via RSTe, and Intel® VROC_HW_ - EZ Tuning Wizard

key. VROC_HW_Key is purchased separately. NVMe RAID - ASUS UEFI BIOS EZ Mode

type and function will depend on the Intel® VROC_HW_key - Multi-language BIOS

installed. • MemOK!

LAN • Intel® X550-AT2 , 2 x 10Gigabit LAN ports • AI Suite 3

Audio • Realtek® ALC S1220A 8-Channel High Definition Audio Back Panel I/O Ports • 2 x USB 3.1 Gen2 ports (Type C & Type A)
CODEC featuring Crystal sound 3 • 4 x USB 3.1 Gen1 ports (Blue)

- Power pre-regulator reduces power input noise to ensure • 1 x Optical S/PDIF Out Port

consistent performance. • 2 x Intel 10G LAN (RJ45) Ports

- Separate layer for left and right track, ensuring both sound • 8-channel Audio I/O Ports Server & Workstation Server & Workstation

deliver equal quality Internal I/O Ports • 1 x Aura Addressable Strip Header

- Impedance sense for front and rear headphone outputs • 1 x AAFP connector

- Audio Shielding: Ensures precision analog/digital separation • 1 x Aura RGB Strip Header
and greatly reduced multi-lateral interference • 1 x USB 3.1 Gen 1 connector(s) support(s) additional

- Internal audio Amplifier to enhance the highest quality 2 USB 3.1 Gen 1 ports

sound for headphone and speakers • 1 x USB 3.1 Gen 2 front panel connector

- Unique de-pop circuit: Reduces start-up popping noise to • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage

audio outputs devices support (PCIE 3.0 x 4 mode)

- Premium Japanese-made audio capacitors provides warm, • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110
natural and immersive sound with exceptional clarity and storage devices support (PCIE 3.0 x 4 mode)
fidelity • 8 x SATA 6Gb/s connectors

- High quality 120dB SNR stereo playback output (Line-out@ • 1 x VROC_HW_Key

back) & 113dB SNR input (Line-in) support • 2 x CPU Fan connectors

- Supports up to 32-Bit/192kHz playback* • 2 x Channel Fan connectors

- DTS Connect • 1 x TPM header

- DTS Headphone:X • 1 x PUMP Fan connector

- Supports: Jack-detection, Multi-streaming, Front Panel Jack- • 1 x AIO_PUMP connector
retasking(MIC) • 1 x Thunderbolt header Mini / Stick PC Mini / Stick PC

- Optical S/PDIF out port(s) at back panel • 1 x 24-pin EATX Power connector

* Due to limitations in HAD bandwidth, 32-Bit/192kHz is • 2 x 8-pin ATX 12V Power connectors

not supported for 8-channel audio. 32-Bit/192kHz is only • 1 x 6-pin ATX 12V Power connector
available under Windows® 10. • 1 x EZ XMP switch

USB • Intel® X299 Chipset • 1 x M.2 Fan connector

- 6 x USB 3.1 Gen1 ports (4 ports @ rear, 2 ports @ front) • 1 x System panel
• ASMedia® USB3.1 Gen 2 Controller • 1 x 5-pin EXT_FAN(Extension Fan) connector

- 2 x USB 3.1 Gen2 ports @ rear (1 x Type A; 1 x Type C) • 1 x MemOK! button

- 1 x USB 3.1 Gen2 @ front (optional Type C) • 1 x Thermal sensor connector

Features • Supporting ASUS Control Center (ACC) Management IT • 1 x Power-on button

software • 1 x Reset button

• OC Design - ASUS PRO Clock Technology • 1 x Clear CMOS button

- Full BCLK range for extreme overclocking performance. • 1 x U.2 connector

• 5-Way Optimization by Dual Intelligent Processors 5 • 1 x CPU_OV jumper Peripherals Peripherals
- Whole system optimization with a single click! Perfectly • 1 x COM port header

consolidates better, CPU performance, power saving, digital • 1 x BIOS Flashback Button

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
power control, system cooling and app usages.
• CEB Form Factor, 12”x 10.5” (30.5cm x 26.7cm)
Form Factor
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
• DIGI+ Power Control
- CPU Power: Digital 8-phase power design Note: The specifications are subject to changes without notice.

- DRAM: Digital 2-phase power design ASUSWORLD 151
