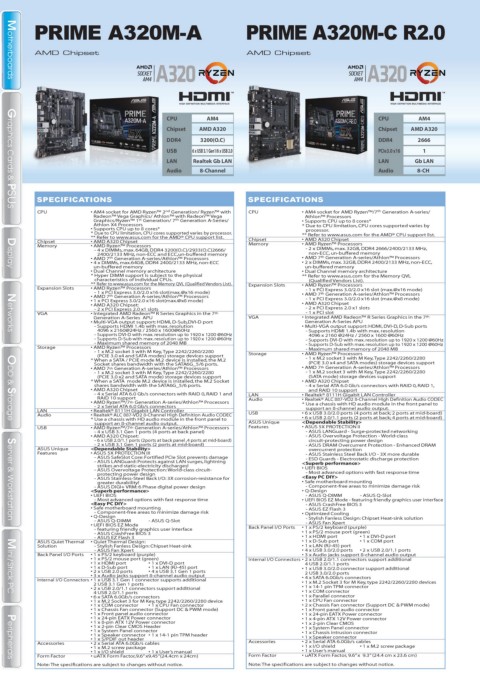

PRIME A320M-A PRIME A320M-C R2.0

AMD Chipset Motherboards AMD Chipset

Motherboards

CPU AM4 CPU AM4
Chipset AMD A320 Chipset AMD A320
DDR4 3200(O.C) DDR4 2666
USB 6 x USB 3.1 Gen1/6 x USB 2.0 PCIe3.0 x16 1
LAN Realtek Gb LAN LAN Gb LAN
Audio 8-Channel Audio 8-CH

SPECIFICATIONS SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AM4 socket for AMD Ryzen™ 2 nd Generation/ Ryzen™ with CPU • AM4 socket for AMD Ryzen™/7 th Generation A-series/
Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Athlon™ Processors
Graphics/Ryzen™ 1 st Generation/ 7 th Generation A-Series/ • Supports CPU up to 8 cores*
Athlon X4 Processors * Due to CPU limitation, CPU cores supported varies by
• Supports CPU up to 8 cores* processor.
* Due to CPU limitation, CPU cores supported varies by processor. ** Refer to www.asus.com for the AMD® CPU support list.
** Refer to www.asus.com for the AMD® CPU support list. Chipset • AMD A320 Chipset
Chipset • AMD A320 Chipset Memory • AMD Ryzen™ Processors
Memory • AMD Ryzen™ Processors
- 4 x DIMMs, max. 64GB, DDR4 3200(O.C)/2933(O.C)2666/ - 2 x DIMMs, max. 32GB, DDR4 2666/2400/2133 MHz,
2400/2133 MHz, non-ECC and ECC,un-buffered memory non-ECC, un-buffered memory
• AMD 7 th Generation A-series/Athlon™ Processors • AMD 7 th Generation A-series/Athlon™ Processors
• 4 x DIMMs, max.64GB, DDR4 2400/2133 MHz, non-ECC • 2 x DIMMs, max. 32GB, DDR4 2400/2133 MHz, non-ECC,
un-buffered memory un-buffered memory
Display
Display
• Dual Channel memory architecture • Dual Channel memory architecture
* Hyper DIMM support is subject to the physical ** Refer to www.asus.com for the Memory QVL
characteristics of individual CPUs. (Qualified Vendors List).
** Refer to www.asus.com for the Memory QVL (Qualified Vendors List). Expansion Slots • AMD Ryzen™ Processors
Expansion Slots • AMD Ryzen™ Processors - 1 x PCI Express 3.0/2.0 x16 slot (max.@x16 mode)
- 1 x PCI Express 3.0/2.0 x16 slot(max.@x16 mode) • AMD 7 th Generation A-series/Athlon™ Processors
• AMD 7 th Generation A-series/Athlon™ Processors
• 1 x PCI Express 3.0/2.0 x16 slot(max.@x8 mode) - 1 x PCI Express 3.0/2.0 x16 slot (max.@x8 mode)
• AMD A320 Chipset: • AMD A320 Chipset
- 2 x PCI Express 2.0 x1 slots - 2 x PCI Express 2.0 x1 slots
VGA • Integrated AMD Radeon™ R Series Graphics in the 7 th - 1 x PCI slot

Generation A-Series APU VGA • Integrated AMD Radeon™ R Series Graphics in the 7 th
• Multi-VGA output support: HDMI, D-Sub,DVI-D port Generation A-Series APU
- Supports HDMI 1.4b with max. resolution • Multi-VGA output support: HDMI, DVI-D, D-Sub ports

4096 x 2160@24Hz / 2560 x 1600@60Hz - Supports HDMI 1.4b with max. resolution
Networks
Networks
- Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz - Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz
- Maximum shared memory of 2048 MB - Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz
Storage • AMD Ryzen™ Processors - Maximum shared memory of 2048 MB

- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280
(PCIE 3.0 x4 and SATA modes) storage devices support Storage • AMD Ryzen™ Processors
* When a SATA / PCIE mode M.2 device is installed, the M.2 - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280
Socket shares bandwidth with the SATA6G_5/6 ports. (PCIE 3.0 x4 and SATA modes) storage devices support
• AMD 7th Generation A-series/Athlon™ Processors • AMD 7th Generation A-series/Athlon™ Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280 - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280
(PCIE 3.0 x2 and SATA mode) storage devices support (SATA mode) storage devices support
* When a SATA mode M.2 device is installed, the M.2 Socket • AMD A320 Chipset
shares bandwidth with the SATA6G_5/6 ports. - 4 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1,
• AMD A320 Chipset and RAID 10 support
- 4 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and LAN • Realtek® 8111H Gigabit LAN Controller
RAID 10 support Audio • Realtek® ALC 887-VD2 8-Channel High Definition Audio CODEC
• AMD Ryzen™/7th Generation A-series/Athlon™ Processors * Use a chassis with HD audio module in the front panel to
- 2 x Serial ATA 6.0 Gb/s connectors support an 8-channel audio output.
LAN • Realtek® 8111H Gigabit LAN Controller USB • 6 x USB 3.0/2.0 ports (4 ports at back; 2 ports at mid-board)
Audio • Realtek® ALC 887-VD2 8-Channel High Definition Audio CODEC

* Use a chassis with HD audio module in the front panel to • 6 x USB 2.0/1.1 ports (2 ports at back; 4 ports at mid-board)
ODD & Storage
support an 8-channel audio output. ASUS Unique <Dependable Stability>
ODD & Storage
USB • AMD Ryzen™/7th Generation A-series/Athlon™ Processors Features • ASUS 5X PROTECTION II
- 4 x USB 3.1 Gen 1 ports (4 ports at back panel) - ASUS LANGuard - Surge-protected networking
• AMD A320 Chipset: - ASUS Overvoltage Protection - World-class
- 6 x USB 2.0/1.1 ports (2ports at back panel ,4 ports at mid-board) circuit-protecting power design
- 2 x USB 3.1 Gen 1 ports (2 ports at mid-board) - ASUS DRAM Overcurrent Protection - Enhanced DRAM
ASUS Unique <Dependable Stability> overcurrent protection
Features • ASUS 5X PROTECTION III - ASUS Stainless Steel Back I/O - 3X more durable
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ESD Guards - Electrostatic discharge protection
- ASUS LANGuard: Protects against LAN surges, lightning <Superb performance>
strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit- • UEFI BIOS

protecting power design - Most advanced options with fast response time
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for <Easy PC DIY>
greater durability! • Safe motherboard mounting
- ASUS DIGI+ VRM: 6 Phase digital power design - Component-free areas to minimize damage risk
<Superb performance> • Q-Design
• UEFI BIOS - ASUS Q-DIMM - ASUS Q-Slot
- Most advanced options with fast response time • UEFI BIOS EZ Mode - featuring friendly graphics user interface
<Easy PC DIY> - ASUS CrashFree BIOS 3
• Safe motherboard mounting - ASUS EZ Flash 3
- Component-free areas to minimize damage risk • Optimized Cooling
• Q-Design - Stylish Fanless Design: Chipset Heat-sink solution
- ASUS Q-DIMM - ASUS Q-Slot
Server & Workstation
Server & Workstation
• UEFI BIOS EZ Mode - ASUS Fan Xpert
• 1 x PS/2 keyboard (purple)
Back Panel I/O Ports
- featuring friendly graphics user interface
- ASUS CrashFree BIOS 3 • 1 x PS/2 mouse port (green)
- ASUS EZ Flash 3 • 1 x HDMI port • 1 x DVI-D port
ASUS Quiet Thermal • Quiet Thermal Design: • 1 x D-Sub port • 1 x COM port
Solution - Stylish Fanless Design: Chipset Heat-sink • 1 x LAN (RJ-45) port
- ASUS Fan Xpert • 4 x USB 3.0/2.0 ports • 2 x USB 2.0/1.1 ports
Back Panel I/O Ports • 1 x PS/2 keyboard (purple) • 3 x Audio jacks support 8-channel audio output
• 1 x PS/2 mouse port (green) Internal I/O Connectors • 2 x USB 2.0/1.1 connectors support additional
• 1 x HDMI port • 1 x DVI-D port 4 USB 2.0/1.1 ports
• 1 x D-Sub port • 1 x LAN (RJ-45) port • 1 x USB 3.0/2.0 connector support additional
• 2 x USB 2.0 ports • 4 x USB 3.1 Gen 1 ports 2 USB 3.0/2.0 ports
• 3 x Audio jacks support 8-channel audio output • 4 x SATA 6.0Gb/s connectors
Internal I/O Connectors • 1 x USB 3.1 Gen 1 connector supports additional • 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
2 USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 connectors support additional • 1 x 14-1 pin TPM connector
4 USB 2.0/1.1 ports • 1 x COM connector
Mini / Stick PC
Mini / Stick PC
• 6 x SATA 6.0Gb/s connectors • 1 x Parallel connector
• 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 device • 1 x CPU Fan connector
• 1 x COM connector • 1 x CPU Fan connector • 2 x Chassis Fan connector (Support DC & PWM mode)
• 1 x Chassis Fan connector (Support DC & PWM mode) • 1 x Front panel audio connector
• 1 x Front panel audio connector • 1 x 24-pin EATX Power connector
• 1 x 24-pin EATX Power connector • 1 x 4-pin ATX 12V Power connector
• 1 x 8-pin ATX 12V Power connector • 1 x 2-pin Clear CMOS
• 1 x 2-pin Clear CMOS Header • 1 x System Panel connector
• 1 x System Panel connector • 1 x Chassis intrusion connector
• 1 x Speaker connector • 1 x 14-1 pin TPM header • 1 x Speaker connector
• 1 x S/PDIF out header
Accessories • 2 x Serial ATA 6.0Gb/s cables Accessories • 2 x Serial ATA 6.0Gb/s cables
• 1 x M.2 screw package • 1 x I/O shield • 1 x M.2 screw package
• 1 x I/O shield • 1 x User’s manual • 1 x User’s manual
Form Factor • uATX Form Factor,9.6’’ x9.45’’(24.4cm x 24cm) Form Factor • uATX Form Factor, 9.6” x 9.3” (24.4 cm x 23.6 cm)
Peripherals
Peripherals
Note: The specifications are subject to changes without notice. Note: The specifications are subject to changes without notice.
