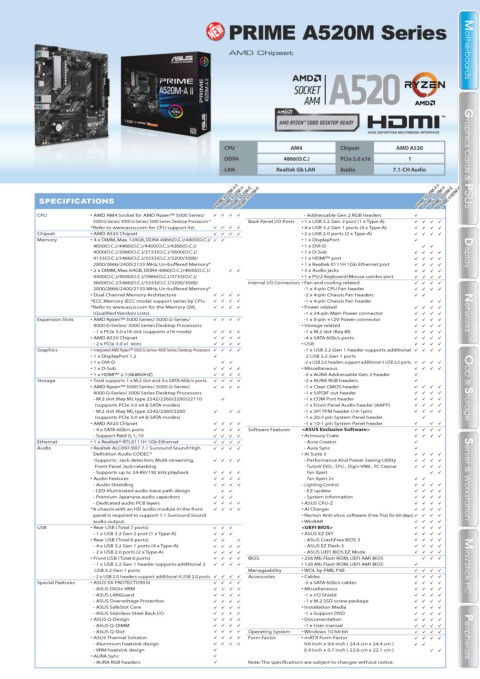

Page 147 - ASUS_WORLD_134_ebook

PRIME A520M Series

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD A520
DDR4 4866(O.C.) PCIe 3.0 x16 1 Graphics Cards & PSUS
LAN Realtek Gb LAN Audio 7.1-CH Audio

PRIME A520M-A
PRIME A520M-A
PRIME A520M-A II PRIME A520M-A II
PRIME A520M-K
PRIME A520M-K
SPECIFICATIONS PRIME A520M-E PRIME A520M-E
Graphics Cards & PSUS
CPU • AMD AM4 Socket for AMD Ryzen™ 5000 Series/ - Addressable Gen 2 RGB headers
5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors * Back Panel I/O Ports • 1 x USB 3.2 Gen 2 port (1 x Type-A)
*Refer to www.asus.com for CPU support list. • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
Chipset • AMD A520 Chipset • 2 x USB 2.0 ports (2 x Type-A)
Memory • 4 x DIMM, Max. 128GB, DDR4 4866(O.C.)/4800(O.C.)/ • 1 x DisplayPort
4600(O.C.)/4466(O.C.)/4400(O.C.)/4266(O.C.)/ • 1 x DVI-D
4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/ • 1 x D-Sub Display Display
4133(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/ • 1 x HDMI™ port
2800/2666/2400/2133 MHz, Un-buffered Memory* • 1 x Realtek 8111H 1Gb Ethernet port
• 2 x DIMM, Max. 64GB, DDR4 4866(O.C.)/4600(O.C.)/ • 3 x Audio jacks
4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ • 1 x PS/2 Keyboard/Mouse combo port
3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/ Internal I/O Connectors • Fan and cooling related
2800/2666/2400/2133 MHz, Un-buffered Memory* -1 x 4-pin CPU Fan header
• Dual Channel Memory Architecture -2 x 4-pin Chassis Fan headers
*ECC Memory (ECC mode) support varies by CPU. -1 x 4-pin Chassis Fan header
*Refer to www.asus.com for the Memory QVL • Power related
(Qualified Vendors Lists). -1 x 24-pin Main Power connector Networks
Expansion Slots • AMD Ryzen™ 5000 Series/ 5000 G-Series/ -1 x 8-pin +12V Power connector
4000 G-Series/ 3000 Series Desktop Processors • Storage related
- 1 x PCIe 3.0 x16 slot (supports x16 mode) -1 x M.2 slot (Key M)
Networks
• AMD A520 Chipset -4 x SATA 6Gb/s ports
- 2 x PCIe 3.0 x1 slots • USB
Graphics • Integrated AMD Ryzen™ 5000 G-Series/ 4000 Series/ Desktop Processors -1 x USB 3.2 Gen 1 header supports additional
• 1 x DisplayPort 1.2 2 USB 3.2 Gen 1 ports
• 1 x DVI-D -2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x D-Sub • Miscellaneous
• 1 x HDMI™ 2.1(4k@60HZ) -2 x AURA Addressable Gen 2 header
Storage • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports -2 x AURA RGB headers
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ ODD & Storage
ODD &
4000 G-Series/ 3000 Series Desktop Processors -1 x S/PDIF out header
- M.2 slot (Key M), type 2242/2260/2280/22110 -1 x COM Port header
(supports PCIe 3.0 x4 & SATA modes) -1 x Front Panel Audio header (AAFP)
- M.2 slot (Key M), type 2242/2260/2280 -1 x SPI TPM header (14-1pin)
(supports PCIe 3.0 x4 & SATA modes) -1 x 20-5 pin System Panel header
-1 x Clear CMOS header Storage
• AMD A520 Chipset -1 x 10-1 pin System Panel header
- 4 x SATA 6Gb/s ports Software Features <ASUS Exclusive Software>
- Support Raid 0, 1, 10 • Armoury Crate
Ethernet • 1 x Realtek® RTL8111H 1Gb Ethernet - Aura Creator
Audio • Realtek ALC897/887 7.1 Surround Sound High - Aura Sync
Definition Audio CODEC* • AI Suite 3
-Supports : Jack detection, Multi-streaming, - Performance And Power Saving Utility
Front Panel Jack-retasking TurboV EVO , EPU , Digi+ VRM , PC Cleaner
- Supports up to 24-Bit/192 kHz playback Fan Xpert
• Audio Features Fan Xpert 2+ Server & Workstation
- Audio Shielding - Lighting Control
- LED-illuminated audio trace path design - EZ update
- Premium Japanese audio capacitors - System Information
- Dedicated audio PCB layers • ASUS CPU-Z
*A chassis with an HD audio module in the front • AI Charger
panel is required to support 7.1 Surround Sound • Norton Anti-virus software (Free Trial for 60 days)
audio output. • WinRAR
Server & Workstation
USB • Rear USB (Total 7 ports) <UEFI BIOS>
- 1 x USB 3.2 Gen 2 port (1 x Type-A) • ASUS EZ DIY
• Rear USB (Total 6 ports) - ASUS CrashFree BIOS 3
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) - ASUS EZ Flash 3
- 2 x USB 2.0 ports (2 x Type-A) - ASUS UEFI BIOS EZ Mode
• Front USB (Total 6 ports) BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
- 1 x USB 3.2 Gen 1 header supports additional 2 • 128 Mb Flash ROM, UEFI AMI BIOS Mini / Stick PC
USB 3.2 Gen 1 ports Manageability • WOL by PME, PXE
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports Accessories • Cables
Special Features • ASUS 5X PROTECTION III -2 x SATA 6Gb/s cables
- ASUS DIGI+ VRM • Miscellaneous
- ASUS LANGuard -1 x I/O Shield
Mini / Stick PC
- ASUS Overvoltage Protection -1 x M.2 SSD screw package
- ASUS SafeSlot Core • Installation Media
- ASUS Stainless-Steel Back I/O -1 x Support DVD
• ASUS Q-Design • Documentation
- ASUS Q-DIMM -1 x User manual
- ASUS Q-Slot Operating System • Windows 10 64-bit
• ASUS Thermal Solution Form Factor • mATX Form Factor Peripherals
- Aluminum heatsink design 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- VRM heatsink design 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
• AURA Sync
Peripherals
- AURA RGB headers Note: The specifications are subject to changes without notice.
