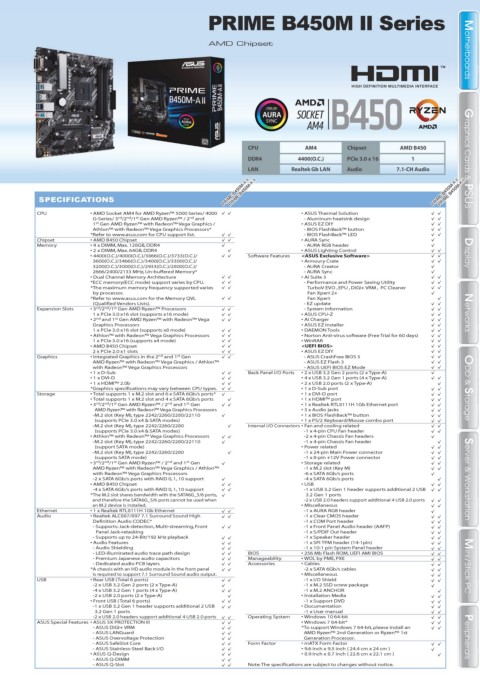

PRIME B450M II Series

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD B450
DDR4 4400(O.C.) PCIe 3.0 x 16 1 Graphics Cards & PSUS
LAN Realtek Gb LAN Audio 7.1-CH Audio
PRIME B550M-A (WI-FI) SPECIFICATIONS PRIME B450M-A II PRIME B450M-A II
PRIME B550M-A AC
PRIME B450M-K II
PRIME B450M-K II
PRIME B550M-K
Graphics Cards & PSUS
CPU

G-Series/ 3 rd /2 nd /1 st Gen AMD Ryzen™ / 2 nd and

- Aluminum heatsink design

• ASUS EZ DIY
• AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 4000 • ASUS Thermal Solution

1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics /
Athlon™ with Radeon™ Vega Graphics Processors* - BIOS FlashBack™ button
*Refer to www.asus.com for CPU support list. - BIOS FlashBack™ LED
Chipset • AMD B450 Chipset • AURA Sync
Memory • 4 x DIMM, Max. 128GB, DDR4 - AURA RGB header D
• 2 x DIMM, Max. 64GB, DDR4 • ASUS Lighting Control
• 4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ Software Features <ASUS Exclusive Software> Display
3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/ • Armoury Crate
3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/ - AURA Creator
isplay
2666/2400/2133 MHz, Un-buffered Memory* - AURA Sync
• Dual Channel Memory Architecture • AI Suite 3
*ECC memory(ECC mode) support varies by CPU. - Performance and Power Saving Utility
*The maximum memory frequency supported varies TurboV EVO , EPU , DIGI+ VRM , PC Cleaner
by processor. Fan Xpert 2+
*Refer to www.asus.com for the Memory QVL Fan Xpert
(Qualified Vendors Lists). - EZ update
Expansion Slots • 3 rd /2 nd /1 st Gen AMD Ryzen™ Processors - System Information
1 x PCIe 3.0 x16 slot (supports x16 mode) • ASUS CPU-Z Networks
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega • AI Charger
Graphics Processors • ASUS EZ Installer
1 x PCIe 3.0 x16 slot (supports x8 mode) • DAEMON Tools
Networks
• Athlon™ with Radeon™ Vega Graphics Processors • Norton Anti-virus software (Free Trial for 60 days)
1 x PCIe 3.0 x16 (supports x4 mode) • WinRAR
• AMD B450 Chipset <UEFI BIOS>
2 x PCIe 2.0 x1 slots • ASUS EZ DIY
Graphics • Integrated Graphics in the 2 nd and 1 st Gen - ASUS CrashFree BIOS 3
AMD Ryzen™ with Radeon™ Vega Graphics / Athlon™ - ASUS EZ Flash 3
with Radeon™ Vega Graphics Processors - ASUS UEFI BIOS EZ Mode
• 1 x D-Sub Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x DVI-D • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x HDMI™ 2.0b • 2 x USB 2.0 ports (2 x Type-A)
*Graphics specifications may vary between CPU types. • 1 x D-Sub port ODD & Storage ODD & Storage
Storage • Total supports 1 x M.2 slot and 6 x SATA 6Gb/s ports* • 1 x DVI-D port
• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports • 1 x HDMI™ port
• 3 rd /2 nd /1 st Gen AMD Ryzen™ / 2 nd and 1 st Gen • 1 x Realtek RTL8111H 1Gb Ethernet port
AMD Ryzen™ with Radeon™ Vega Graphics Processors • 3 x Audio jacks
-M.2 slot (Key M), type 2242/2260/2280/22110 • 1 x BIOS FlashBack™ button
(supports PCIe 3.0 x4 & SATA modes) • 1 x PS/2 Keyboard/Mouse combo port
-M.2 slot (Key M), type 2242/2260/2280 Internal I/O Connectors • Fan and cooling related
(supports PCIe 3.0 x4 & SATA modes) -1 x 4-pin CPU Fan header
• Athlon™ with Radeon™ Vega Graphics Processors
-M.2 slot (Key M), type 2242/2260/2280/22110 -1 x 4-pin Chassis Fan header
(support SATA mode) • Power related
-M.2 slot (Key M), type 2242/2260/2280 -1 x 24-pin Main Power connector
(supports SATA mode) -1 x 8-pin +12V Power connector
• 3 rd /2 nd /1 st Gen AMD Ryzen™ / 2 nd and 1 st Gen • Storage related
AMD Ryzen™ with Radeon™ Vega Graphics / Athlon™ -1 x M.2 slot (Key M)
with Radeon™ Vega Graphics Processors -6 x SATA 6Gb/s ports
-2 x SATA 6Gb/s ports with RAID 0, 1, 10 support -4 x SATA 6Gb/s ports Server & Workstation
• AMD B450 Chipset • USB
-4 x SATA 6Gb/s ports with RAID 0, 1, 10 support -1 x USB 3.2 Gen 1 header supports additional 2 USB
*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, 3.2 Gen 1 ports
and therefore the SATA6G_5/6 ports cannot be used when -2 x USB 2.0 headers support additional 4 USB 2.0 ports
an M.2 device is installed. • Miscellaneous
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet -1 x AURA RGB header
Audio • Realtek ALC887/897 7.1 Surround Sound High -1 x Clear CMOS header
Definition Audio CODEC* -1 x COM Port header
-2 x 4-pin Chassis Fan headers Server & Workstation
- Supports: Jack-detection, Multi-streaming, Front -1 x Front Panel Audio header (AAFP)
Panel Jack-retasking -1 x S/PDIF Out header
- Supports up to 24-Bit/192 kHz playback -1 x Speaker header
• Audio Features -1 x SPI TPM header (14-1pin)
- Audio Shielding -1 x 10-1 pin System Panel header
- LED-illuminated audio trace path design BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
- Premium Japanese audio capacitors Manageability • WOL by PME, PXE
- Dedicated audio PCB layers Accessories • Cables
*A chassis with an HD audio module in the front panel -2 x SATA 6Gb/s cables Mini / Stick PC
is required to support 7.1 Surround Sound audio output. • Miscellaneous
USB • Rear USB (Total 6 ports) -1 x I/O Shield
-2 x USB 3.2 Gen 2 ports (2 x Type-A) -1 x M.2 SSD screw package
-4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x M.2 ANCHOR
-2 x USB 2.0 ports (2 x Type-A) • Installation Media
Mini / Stick PC
• Front USB (Total 6 ports) -1 x Support DVD
-1 x USB 3.2 Gen 1 header supports additional 2 USB • Documentation
3.2 Gen 1 ports -1 x User manual
-2 x USB 2.0 headers support additional 4 USB 2.0 ports Operating System • Windows 10 64-bit
ASUS Special Features • ASUS 5X PROTECTION III • Windows 7 64-bit*
- ASUS DIGI+ VRM *To support Windows 7 64-bit, please install an
- ASUS LANGuard AMD Ryzen™ 2nd Generation or Ryzen™ 1st
- ASUS Overvoltage Protection Generation Processor. Peripherals Peripherals
- ASUS SafeSlot Core Form Factor • mATX Form Factor
- ASUS Stainless-Steel Back I/O • 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
• ASUS Q-Design • 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
- ASUS Q-DIMM
- ASUS Q-Slot Note: The specifications are subject to changes without notice.
