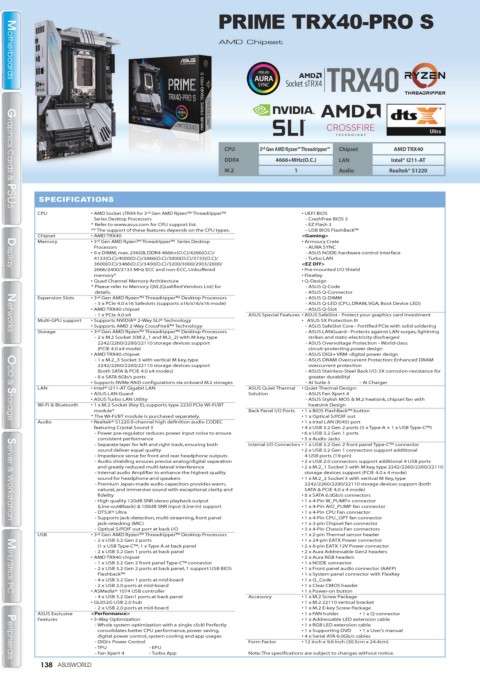

PRIME TRX40-PRO S

AMD Chipset

Motherboards
Motherboards

CPU 3 rd Gen AMD Ryzen™ Threadripper™ Chipset AMD TRX40
DDR4 4666+MHz(O.C.) LAN Intel® I211-AT
M.2 1 Audio Realtek® S1220

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AMD Socket sTRX4 for 3 rd Gen AMD Ryzen™ Threadripper™ • UEFI BIOS
Series Desktop Processors - CrashFree BIOS 3
* Refer to www.asus.com for CPU support list. - EZ Flash 3
** The support of these features depends on the CPU types. - USB BIOS FlashBack™
Chipset • AMD TRX40 <Gaming>
Memory • 3 rd Gen AMD Ryzen™ Threadripper™ Series Desktop • Armoury Crate
Processors - AURA SYNC
• 8 x DIMM, max. 256GB, DDR4 4666+(O.C)/4266(O.C)/ - ASUS NODE: hardware control interface
4133(O.C)/4000(O.C)/3866(O.C)/3800(O.C)/3733(O.C)/ - Turbo LAN
3600(O.C)/3466(O.C)/3400(O.C)/3200/3000/2933/2800/ <EZ DIY>
2666/2400/2133 MHz ECC and non-ECC, Unbuffered • Pre-mounted I/O Shield
Display
Display
memory* • FlexKey
• Quad Channel Memory Architecture • Q-Design
* Please refer to Memory QVL(Qualified Vendors List) for - ASUS Q-Code
- ASUS Q-Connector
Expansion Slots • 3 rd Gen AMD Ryzen™ Threadripper™ Desktop Processors - ASUS Q-DIMM
- 3 x PCIe 4.0 x16 Safeslots (supports x16/x16/x16 mode) - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• AMD TRX40 chipset - ASUS Q-Slot
- 1 x PCIe 4.0 x4 ASUS Special Features • ASUS SafeSlot - Protect your graphics card Investment
Multi-GPU support • Supports NVIDIA® 2-Way SLI® Technology • ASUS 5X Protection III

• Supports AMD 2-Way CrossFireX™ Technology - ASUS SafeSlot Core - Fortified PCIe with solid soldering
Storage • 3 rd Gen AMD Ryzen™ Threadripper™ Desktop Processors - ASUS LANGuard - Protects against LAN surges, lightning
details. Networks
Networks
- 2 x M.2 Socket 3(M.2_1 and M.2_2) with M key, type strikes and static-electricity discharges!
2242/2260/2280/22110 storage devices support - ASUS Overvoltage Protection - World-class
(PCIE 4.0 x4 mode) circuit-protecting power design
• AMD TRX40 chipset - ASUS DIGI+ VRM -digital power design
- 1 x M.2_3 Socket 3 with vertical M key, type - ASUS DRAM Overcurrent Protection: Enhanced DRAM
2242/2260/2280/22110 storage devices support overcurrent protection
(both SATA & PCIE 4.0 x4 modes) - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
- 8 x SATA 6Gb/s ports greater durability!
• Supports NVMe RAID configurations via onboard M.2 storages - AI Suite 3 - Ai Charger
LAN • Intel® I211-AT Gigabit LAN ASUS Quiet Thermal • Quiet Thermal Design:
• ASUS LAN Guard Solution - ASUS Fan Xpert 4
• ASUS Turbo LAN Utility - ASUS Stylish MOS & M.2 heatsink, chipset fan with
Wi-Fi & Bluetooth • 1 x M.2 Socket (Key E), supports type 2230 PCIe Wi-Fi/BT heatsink Design

module* Back Panel I/O Ports • 1 x BIOS FlashBack™ button
* The Wi-Fi/BT module is purchased separately. • 1 x Optical S/PDIF out
Audio • Realtek® S1220 8-channel high definition audio CODEC • 1 x Intel LAN (RJ45) port
ODD & Storage
ODD & Storage
featuring Crystal Sound 3 • 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C™)
- Power pre-regulator reduces power input noise to ensure • 6 x USB 3.2 Gen 1 ports
consistent performance • 5 x Audio Jacks
- Separate layer for left and right track, ensuring both Internal I/O Connectors • 1 x USB 3.2 Gen 2 front panel Type-C™ connector
sound deliver equal quality • 2 x USB 3.2 Gen 1 connectors support additional
- Impedance sense for front and rear headphone outputs 4 USB ports (19-pin)
- Audio shielding ensures precise analog/digital separation • 2 x USB 2.0 connectors support additional 4 USB ports
and greatly reduced multi-lateral interference • 2 x M.2_1 Socket 3 with M key, type 2242/2260/2280/22110
- Internal audio Amplifier to enhance the highest quality storage devices support (PCIE 4.0 x 4 mode)
sound for headphone and speakers • 1 x M.2_2 Socket 3 with vertical M Key, type
- Premium Japan-made audio capacitors provides warm, 2242/2260/2280/22110 storage devices support (both
natural, and immersive sound with exceptional clarity and SATA & PCIE 4.0 x 4 mode)
fidelity • 8 x SATA 6.0Gb/s connectors
- High quality 120dB SNR stereo playback output • 1 x 4-Pin W_PUMP+ connector
(Line-out@back) & 108dB SNR input (Line-in) support • 1 x 4-Pin AIO_PUMP fan connector
- DTS:X® Ultra • 1 x 4-Pin CPU Fan connector
- Supports jack-detection, multi-streaming, front panel • 1 x 4-Pin CPU_OPT fan connector
Server & Workstation
Server & Workstation
jack-retasking (MIC) • 1 x 3-pin Chipset fan connector
- Optical S/PDIF out port at back I/O • 3 x 4-Pin Chassis Fan connectors
USB • 3 rd Gen AMD Ryzen™ Threadripper™ Desktop Processors • 1 x 2-pin Thermal sensor header
- 2 x USB 3.2 Gen 2 ports • 1 x 24-pin EATX Power connector
(1 x USB Type-C™, 1 x Type A at back panel • 2 x 8-pin EATX 12V Power connector
- 2 x USB 3.2 Gen 1 ports at back panel • 2 x Aura Addressable Gen2 headers
• AMD TRX40 chipset • 2 x Aura RGB headers
- 1 x USB 3.2 Gen 2 front panel Type-C™ connector • 1 x NODE connector
- 2 x USB 3.2 Gen 2 ports at back panel, 1 support USB BIOS • 1 x Front panel audio connector (AAFP)
Flashback™ • 1 x System panel connector with FlexKey
- 4 x USB 3.2 Gen 1 ports at mid-board • 1 x Q_Code
- 2 x USB 2.0 ports at mid-board • 1 x Clear CMOS header
• ASMedia® 1074 USB controller • 1 x Power-on button
Mini / Stick PC
Mini / Stick PC
- 4 x USB 3.2 Gen1 ports at back panel Accessory • 1 x M.2 Screw Package
• GL852G USB 2.0 hub • 1 x M.2 22110 vertical bracket
- 2 x USB 2.0 ports at mid-board • 1 x M.2 E-key Screw Package
ASUS Exclusive <Performance> • 1 x FAN holder • 1 x Q-connector
Features • 5-Way Optimization • 1 x Addressable LED extension cable
- Whole system optimization with a single click! Perfectly • 1 x RGB LED extension cable
consolidates better CPU performance, power saving, • 1 x Supporting DVD • 1 x User’s manual
digital power control, system cooling and app usages • 4 x Serial ATA 6.0Gb/s cables
- DIGI+ Power Control Form Factor • 12 inch x 9.6 inch (30.5cm x 24.4cm)
- TPU - EPU
- Fan Xpert 4 - Turbo App Note: The specifications are subject to changes without notice.
