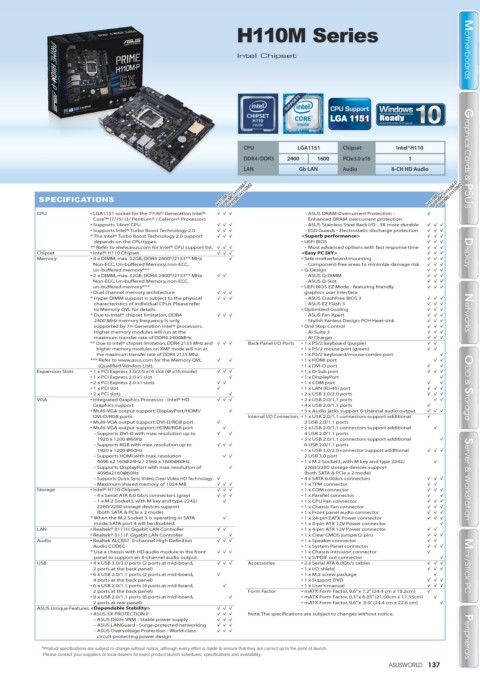

H110M Series

Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel®H110
DDR4 / DDR3 2400 1600 PCIe3.0 x16 1 Graphics Cards & PSUS
LAN Gb LAN Audio 8-CH HD Audio
PRIME H110M-P
PRIME H110M2
PRIME H110M2
H110M-K SPECIFICATIONS PRIME H110M-P H110M-C
• LGA1151 socket for the 7 th /6 th Generation Intel® H110M-C
H110M-F
Graphics Cards & PSUS
CPU - ASUS DRAM Overcurrent Protection -
Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors Enhanced DRAM overcurrent protection
• Supports 14nm CPU - ASUS Stainless Steel Back I/O - 3X more durable
• Supports Intel® Turbo Boost Technology 2.0 - ESD Guards - Electrostatic discharge protection
* The Intel® Turbo Boost Technology 2.0 support
depends on the CPU types. • UEFI BIOS
** Refer to www.asus.com for Intel® CPU support list. - Most advanced options with fast response time
Chipset • Intel® H110 Chipset <Easy PC DIY> Display
Memory • 4 x DIMM, max. 32GB, DDR4 2400*/2133** MHz • Safe motherboard mounting
Non-ECC, Un-buffered Memory, non-ECC, - Component-free areas to minimize damage risk
<Superb performance> Display
un-buffered memory*** • Q-Design
• 2 x DIMM, max. 32GB, DDR4 2400*/2133** MHz - ASUS Q-DIMM
Non-ECC, Un-buffered Memory, non-ECC, - ASUS Q-Slot
un-buffered memory*** • UEFI BIOS EZ Mode - featuring friendly
• Dual channel memory architecture
* Hyper DIMM support is subject to the physical - ASUS CrashFree BIOS 3
characteristics of individual CPUs. Please refer - ASUS EZ Flash 3
to Memory QVL for details. • Optimized Cooling
* Due to Intel® chipset limitation, DDR4 - ASUS Fan Xpert Networks
2400 MHz memory frequency is only - Stylish Fanless Design: PCH Heat-sink
supported by 7th Generation Intel® processors. • One Stop Control
Higher memory modules will run at the - AI Suite 3
graphics user interface Networks
maximum transfer rate of DDR4 2400MHz. - Ai Charger
** Due to Intel® chipset limitation, DDR4 2133 MHz and Back Panel I/O Ports • 1 x PS/2 keyboard (purple)
higher memory modules on XMP mode will run at • 1 x PS/2 mouse port (green)
the maximum transfer rate of DDR4 2133 Mhz. • 1 x PS/2 keyboard/mouse combo port
*** Refer to www.asus.com for the Memory QVL • 1 x HDMI port
(Qualified Vendors List). • 1 x DVI-D port
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode) • 1 x D-Sub port
• 1 x PCI Express 2.0 x1 slot • 1 x DisplayPort
• 2 x PCI Express 2.0 x1 slots • 1 x COM port
• 1 x PCI slot • 1 x LAN (RJ-45) port ODD & Storage ODD & Storage
• 2 x PCI slots • 2 x USB 3.0/2.0 ports
VGA • Integrated Graphics Processor - Intel® HD • 2 x USB 2.0/1.1 ports
Graphics support • 4 x USB 2.0/1.1 ports
• Multi-VGA output support: DisplayPort/HDMI/ • 3 x Audio jacks support 8-channel audio output
DVI-D/RGB ports Internal I/O Connectors • 1 x USB 2.0/1.1 connectors support additional
• Multi-VGA output support: DVI-D/RGB port 2 USB 2.0/1.1 ports
• Multi-VGA output support: HDMI/RGB port • 2 x USB 2.0/1.1 connectors support additional
- Supports DVI-D with max. resolution up to 4 USB 2.0/1.1 ports
1920 x 1200 @60Hz • 3 x USB 2.0/1.1 connectors support additional
- Supports RGB with max. resolution up to 6 USB 2.0/1.1 ports
1920 x 1200 @60Hz • 1 x USB 3.0/2.0 connector support additional
- Supports HDMI with max. resolution 2 USB 3.0 port
4096 x2 160@24Hz / 2560 x 1600@60Hz • 1 x M.2 Socket3, with M key and type 2242/
- Supports DisplayPort with max. resolution of 2260/2280 storage devices support
4096x2160@60Hz (both SATA & PCIe x 2 mode)
- Supports Quick Sync Video, Clear Video HD Technology • 4 x SATA 6.0Gb/s connectors Server & Workstation
- Maximum shared memory of 1024 MB • 1 x TPM connector
Storage • Intel® H110 Chipset: • 1 x COM connector
- 4 x Serial ATA 6.0 Gb/s connectors (gray) • 1 x Parallel connector
- 1 x M.2 Socket3, with M key and type 2242/ • 1 x CPU Fan connector
2260/2280 storage devices support • 1 x Chassis Fan connector
(both SATA & PCIe x 2 mode) • 1 x Front panel audio connector
* When the M.2 Socket 3 is operating in SATA • 1 x 24-pin EATX Power connector
Server & Workstation
mode, SATA port 4 will be disabled. • 1 x 8-pin ATX 12V Power connector
LAN • Realtek® 8111H Gigabit LAN Controller • 1 x 4-pin ATX 12V Power connector
• Realtek® 8111F Gigabit LAN Controller • 1 x Clear CMOS jumper(2 pin)
Audio • Realtek ALC887 8-channel High Definition • 1 x Speaker connector
Audio CODEC • 1 x System Panel connector
* Use a chassis with HD audio module in the front • 1 x Chassis intrusion connector
panel to support an 8-channel audio output. • 1 x S/PDIF out connector
USB • 4 x USB 3.0/2.0 ports (2 ports at mid-board, Accessories • 2 x Serial ATA 6.0Gb/s cables
2 ports at the back panel) • 1 x I/O shield Mini / Stick PC Mini / Stick PC
• 6 x USB 2.0/1.1 ports (2 ports at mid-board, • 1 x M.2 screw package
4 ports at the back panel) • 1 x Support DVD
• 6 x USB 2.0/1.1 ports (4 ports at mid-board, • 1 x User’s manual
2 ports at the back panel) Form Factor • mATX Form Factor, 9.6” x 7.2” (24.4 cm x 18.2cm)
• 8 x USB 2.0/1.1 ports (6 ports at mid-board, • mATX Form Factor, 8.3” x 6.85” (21.08cm x 17.35cm)
2 ports at rear panel) • mATX Form Factor, 9.6” x 8.9” (24.4 cm x 22.6 cm)
ASUS Unique Features <Dependable Stability>
• ASUS 5X PROTECTION II Note: The specifications are subject to changes without notice.
- ASUS DIGI+ VRM - Stable power supply
- ASUS LANGuard - Surge-protected networking
- ASUS Overvoltage Protection - World-class
circuit-protecting power design Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
