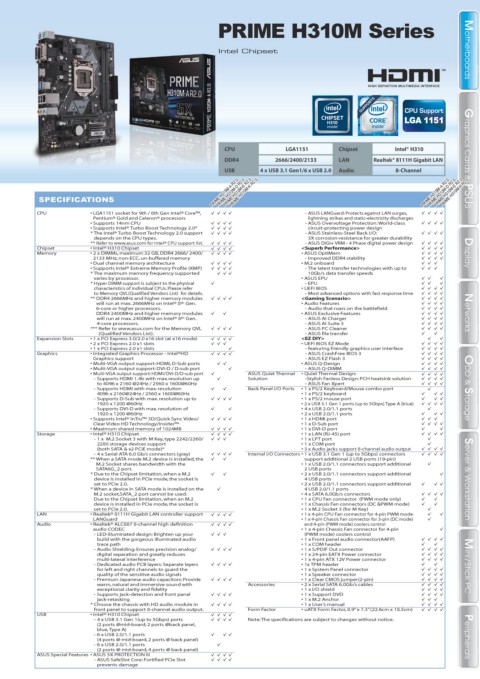

PRIME-H410I-PLUS PRIME H310M Series

Intel Chipset
Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel® H310
DDR4 2666/2400/2133 LAN Realtek® 8111H Gigabit LAN Graphics Cards & PSUS
USB 4 x USB 3.1 Gen1/6 x USB 2.0 Audio 8-Channel
PRIME H310M-K R2.0
PRIME H310M-D R2.0
PRIME H310M-A R2.0 PRIME H310M-A R2.0
PRIME H310M-D R2.0
PRIME H310M-K R2.0
SPECIFICATIONS PRIME H310M-E R2.0 PRIME H310M-E R2.0
Graphics Cards & PSUS
CPU • LGA1151 socket for 9th / 8th Gen Intel® Core™, - ASUS LANGuard: Protects against LAN surges,
Pentium® Gold and Celeron® processors lightning strikes and static-electricity discharges
• Supports 14nm CPU - ASUS Overvoltage Protection: World-class
• Supports Intel® Turbo Boost Technology 2.0* circuit-protecting power design
* The Intel® Turbo Boost Technology 2.0 support - ASUS Stainless-Steel Back I/O:
depends on the CPU types. 3X corrosion-resistance for greater durability
** Refer to www.asus.com for Intel® CPU support list. - ASUS DIGI+ VRM - 4 Phase digital power design
Chipset • Intel® H310 Chipset <Superb Performance>

Memory • 2 x DIMMs, maximum 32 GB, DDR4 2666/ 2400/ • ASUS OptiMem Display Display
2133 MHz, non-ECC, un-buffered memory - Improved DDR4 stability
• Dual channel memory architecture • M.2 onboard
• Supports Intel® Extreme Memory Profile (XMP) - The latest transfer technologies with up to
* The maximum memory frequency supported 10Gb/s data transfer speeds
varies by processor. • ASUS EPU
* Hyper DIMM support is subject to the physical - EPU
characteristics of individual CPUs. Please refer • UEFI BIOS
to Memory QVL(Qualified Vendors List) for details. - Most advanced options with fast response time
** DDR4 2666MHz and higher memory modules <Gaming Scenario>
will run at max. 2666MHz on Intel® 8 th Gen. • Audio Features
6-core or higher processors. - Audio that roars on the battlefield
DDR4 2400MHz and higher memory modules • ASUS Exclusive Features Networks Networks
will run at max. 2400MHz on Intel® 8 th Gen. - ASUS AI Charger
4-core processors. - ASUS AI Suite 3
*** Refer to www.asus.com for the Memory QVL - ASUS PC Cleaner
(Qualified Vendors List). - ASUS file transfer
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode) <EZ DIY>
• 2 x PCI Express 2.0 x1 slots • UEFI BIOS EZ Mode
• 1 x PCI Express 2.0 x1 slots - featuring friendly graphics user interface

Graphics • Integrated Graphics Processor - Intel®HD
Graphics support - ASUS EZ Flash 3
• Multi-VGA output support: HDMI, D-Sub ports • ASUS Q-Design
• Multi-VGA output support: DVI-D / D-sub port - ASUS Q-DIMM
• Multi-VGA output support: HDMI/DVI-D/D-sub port ASUS Quiet Thermal • Quiet Thermal Design:
- Supports HDMI 1.4b with max.resolution up Solution -Stylish Fanless Design: PCH heatsink solution
to 4096 x 2160 @24Hz / 2560 x 1600@60Hz - ASUS Fan Xpert
- Supports HDMI with max. resolution Back Panel I/O Ports • 1 x PS/2 Keyboard/Mouse combo port ODD & Storage
4096 x 2160@24Hz / 2560 x 1600@60Hz • 1 x PS/2 keyboard
- Supports D-Sub with max. resolution up to • 1 x PS/2 mouse port
1920 x 1200 @60Hz • 2 x USB 3.1 Gen 1 ports (up to 5Gbps) Type A (blue)
- Supports DVI-D with max. resolution of • 4 x USB 2.0/1.1 ports
1920 x 1200 @60Hz • 2 x USB 2.0/1.1 ports
• Supports Intel® InTru™ 3D/Quick Sync Video/ • 1 x HDMI port
- ASUS CrashFree BIOS 3 ODD & Storage
Clear Video HD Technology/Insider™ • 1 x D-Sub port
• Maximum shared memory of 1024MB • 1 x DVI-D port
Storage • Intel® H310 Chipset • 1 x LAN (RJ-45) port
- 1 x M.2 Socket 3 with M Key, type 2242/2260/ • 1 x LPT port
2280 storage devices support • 1 x COM port
(both SATA & x2 PCIE mode)* • 3 x Audio jacks support 8-channel audio output
- 4 x Serial ATA 6.0 Gb/s connectors (gray) Internal I/O Connectors • 1 x USB 3.1 Gen 1 (up to 5Gbps) connectors
** When a SATA mode M.2 device is installed, the support additional 2 USB ports (19-pin)
M.2 Socket shares bandwidth with the • 1 x USB 2.0/1.1 connectors support additional
SATA6G_2 port. 2 USB ports
* Due to the Chipset limitation, when a M.2 • 2 x USB 2.0/1.1 connectors support additional
device is installed in PCIe mode, the socket is 4 USB ports Server & Workstation Server & Workstation
set to PCIe 2.0. • 2 x USB 2.0/1.1 connectors support additional
* When a device in SATA mode is installed on the 4 USB 2.0/1.1 ports
M.2 socket,SATA_2 port cannot be used. • 4 x SATA 6.0Gb/s connectors
Due to the Chipset limitation, when an M.2 • 1 x CPU Fan connector (PWM mode only)
device is installed in PCIe mode, the socket is • 1 x Chassis Fan connectors (DC &PWM mode)
set to PCIe 2.0. • 1 x M.2 Socket 3 (for M Key)
LAN • Realtek® 8111H Gigabit LAN controller support • 1 x 4-pin CPU Fan connector for 4-pin PWM mode
LANGuard • 1 x 4-pin Chassis Fan connector for 3-pin (DC mode)
Audio • Realtek® ALC887 8-channel high definition and 4-pin (PWM mode) coolers control
audio CODEC • 1 x 4-pin Chassis Fan connector for 4-pin
- LED-illuminated design: Brighten up your (PWM mode) coolers control
build with the gorgeous illuminated audio • 1 x Front panel audio connector(AAFP)
trace path • 1 x COM header
- Audio Shielding: Ensures precision analog/ • 1 x S/PDIF Out connector
digital separation and greatly reduces • 1 x 24-pin EATX Power connector
multi-lateral interference • 1 x 4-pin ATX 12V Power connector
- Dedicated audio PCB layers: Separate layers • 1x TPM header Mini / Stick PC Mini / Stick PC
for left and right channels to guard the • 1 x System Panel connector
quality of the sensitive audio signals • 1 x Speaker connector
- Premium Japanese audio capacitors: Provide • 1 x Clear CMOS jumper(2-pin)
warm, natural and immersive sound with Accessories • 2 x Serial SATA 6.0Gb/s cables
exceptional clarity and fidelity • 1 x I/O shield
- Supports jack-detection and front panel • 1 x Support DVD
jack-retasking • 1 x M.2 Anchor
* Choose the chassis with HD audio module in • 1 x User’s manual
front panel to support 8-channel audio output. Form Factor • uATX Form Factor, 8.9” x 7.3” (22.6cm x 18.5cm)
USB • Intel® H310 Chipset
- 4 x USB 3.1 Gen 1(up to 5Gbps) ports Note: The specifications are subject to changes without notice.
(2 ports @mid-board; 2 ports @back panel,
blue, Type A)
- 6 x USB 2.0/1.1 ports Peripherals Peripherals
(4 ports @ mid-board, 2 ports @ back panel)
- 6 x USB 2.0/1.1 ports
(2 ports @ mid-board, 4 ports @ back panel)
ASUS Special Features • ASUS 5X PROTECTION III
- ASUS SafeSlot Core: Fortified PCIe Slot
prevents damage
