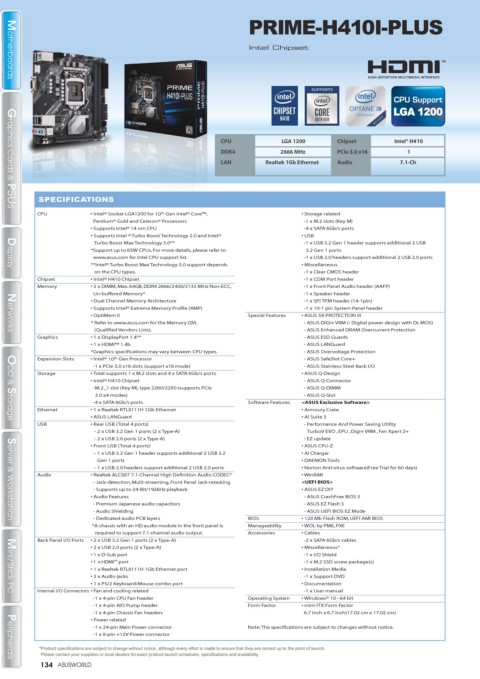

PRIME-H410I-PLUS

Intel Chipset

Motherboards
Motherboards

CPU LGA 1200 Chipset Intel® H410
DDR4 2666 MHz PCIe 3.0 x16 1
LAN Realtek 1Gb Ethernet Audio 7.1-Ch

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 10 th Gen Intel® Core™, • Storage related
Pentium® Gold and Celeron® Processors -1 x M.2 slots (Key M)
• Supports Intel® 14 nm CPU -4 x SATA 6Gb/s ports
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® • USB
Turbo Boost Max Technology 3.0** -1 x USB 3.2 Gen 1 header supports additional 2 USB
*Support up to 65W CPUs. For more details, please refer to 3.2 Gen 1 ports
www.asus.com for Intel CPU support list. -1 x USB 2.0 headers support additional 2 USB 2.0 ports
**Intel® Turbo Boost Max Technology 3.0 support depends • Miscellaneous
Display
Display
on the CPU types. -1 x Clear CMOS header
Chipset • Intel® H410 Chipset -1 x COM Port header
Memory • 2 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, -1 x Front Panel Audio header (AAFP)
Un-buffered Memory* -1 x Speaker header
• Dual Channel Memory Architecture -1 x SPI TPM header (14-1pin)
• Supports Intel® Extreme Memory Profile (XMP) -1 x 10-1 pin System Panel header
• OptiMem II Special Features • ASUS 5X PROTECTION III
* Refer to www.asus.com for the Memory QVL - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
(Qualified Vendors Lists). - ASUS Enhanced DRAM Overcurrent Protection
Networks
Networks
Graphics • 1 x DisplayPort 1.4** - ASUS ESD Guards
• 1 x HDMI™ 1.4b - ASUS LANGuard
*Graphics specifications may vary between CPU types. - ASUS Overvoltage Protection
Expansion Slots • Intel® 10 th Gen Processor - ASUS SafeSlot Core+
-1 x PCIe 3.0 x16 slots (support x16 mode) - ASUS Stainless-Steel Back I/O
Storage • Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports • ASUS Q-Design
• Intel® H410 Chipset - ASUS Q-Connector
-M.2_1 slot (Key M), type 2260/2280 (supports PCIe - ASUS Q-DIMM
3.0 x4 modes) - ASUS Q-Slot
-4 x SATA 6Gb/s ports Software Features <ASUS Exclusive Software>
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet • Armoury Crate
• ASUS LANGuard • AI Suite 3
ODD & Storage
ODD & Storage
USB • Rear USB (Total 4 ports) - Performance And Power Saving Utility
- 2 x USB 3.2 Gen 1 ports (2 x Type-A) TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
- 2 x USB 2.0 ports (2 x Type-A) - EZ update
• Front USB (Total 4 ports) • ASUS CPU-Z
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 • AI Charger
Gen 1 ports • DAEMON Tools
- 1 x USB 2.0 headers support additional 2 USB 2.0 ports • Norton Anti-virus software(Free Trial for 60 days)

Audio • Realtek ALC887 7.1-Channel High Definition Audio CODEC* • WinRAR
- Jack-detection, Multi-streaming, Front Panel Jack-retasking <UEFI BIOS>
- Supports up to 24-Bit/192kHz playback • ASUS EZ DIY
• Audio Features - ASUS CrashFree BIOS 3
- Premium Japanese audio capacitors - ASUS EZ Flash 3
- Audio Shielding - ASUS UEFI BIOS EZ Mode
- Dedicated audio PCB layers BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
Server & Workstation
Server & Workstation
*A chassis with an HD audio module in the front panel is Manageability • WOL by PME, PXE
required to support 7.1-channel audio output. Accessories • Cables
Back Panel I/O Ports • 2 x USB 3.2 Gen 1 ports (2 x Type-A) -2 x SATA 6Gb/s cables
• 2 x USB 2.0 ports (2 x Type-A) • Miscellaneous*
• 1 x D-Sub port -1 x I/O Shield
TM
• 1 x HDMI port -1 x M.2 SSD screw package(s)
• 1 x Realtek RTL8111H 1Gb Ethernet port • Installation Media
• 3 x Audio jacks -1 x Support DVD
• 1 x PS/2 Keyboard/Mouse combo port • Documentation
Internal I/O Connectors • Fan and cooling related -1 x User manual
Mini / Stick PC
Mini / Stick PC
-1 x 4-pin CPU Fan header Operating System • Windows® 10 - 64 bit
-1 x 4-pin AIO Pump header Form Factor • mini-ITX Form Factor
-1 x 4-pin Chassis Fan headers 6.7 inch x 6.7 inch(17.02 cm x 17.02 cm)
• Power related
-1 x 24-pin Main Power connector Note: The specifications are subject to changes without notice.
-1 x 8-pin +12V Power connector
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
