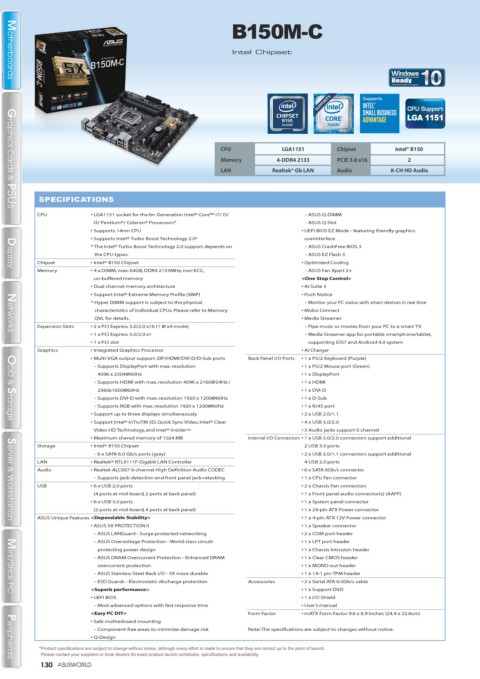

B150M-C

Intel Chipset

Motherboards
Motherboards

CPU LGA1151 Chipset Intel® B150
Memory 4-DDR4 2133 PCIE 3.0 x16 2

LAN Realtek® Gb LAN Audio 8-CH HD Audio

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • LGA1151 socket for the 6th Generation Intel® Core™ i7/ i5/ - ASUS Q-DIMM
i3/ Pentium®/ Celeron® Processors* - ASUS Q-Slot
• Supports 14nm CPU • UEFI BIOS EZ Mode - featuring friendly graphics
• Supports Intel® Turbo Boost Technology 2.0* userinterface
* The Intel® Turbo Boost Technology 2.0 support depends on - ASUS CrashFree BIOS 3
the CPU types. - ASUS EZ Flash 3
Chipset • Intel® B150 Chipset • Optimized Cooling
Display
Display
Memory • 4 x DIMM, max. 64GB, DDR4 2133MHz, non-ECC, - ASUS Fan Xpert 2+
un-buffered memory <One Stop Control>
• Dual channel memory architecture • AI Suite 3
• Support Intel® Extreme Memory Profile (XMP) • Push Notice
* Hyper DIMM support is subject to the physical - Monitor your PC status with smart devices in real time
characteristics of individual CPUs. Please refer to Memory • Mobo Connect
QVL for details. • Media Streamer
Expansion Slots • 2 x PCI Express 3.0/2.0 x16 (1 @ x4 mode) - Pipe music or movies from your PC to a smart TV
Networks
Networks
• 1 x PCI Express 3.0/2.0 x1 - Media Streamer app for portable smartphone/tablet,
• 1 x PCI slot supporting iOS7 and Android 4.0 system
Graphics • Integrated Graphics Processor • Ai Charger
• Multi-VGA output support :DP/HDMI/DVI-D/D-Sub ports Back Panel I/O Ports • 1 x PS/2 Keyboard (Purple)
- Supports DisplayPort with max. resolution • 1 x PS/2 Mouse port (Green)
4096 x 2304@60Hz • 1 x DisplayPort
- Supports HDMI with max. resolution 4096 x 2160@24Hz / • 1 x HDMI
2560x1600@60Hz • 1 x DVI-D
- Supports DVI-D with max. resolution 1920 x 1200@60Hz • 1 x D-Sub
- Supports RGB with max. resolution 1920 x 1200@60Hz • 1 x RJ45 port
• Support up to three displays simultaneously • 2 x USB 2.0/1.1
• Support Intel® InTruTM 3D, Quick Sync Video, Intel® Clear • 4 x USB 3.0/2.0
ODD & Storage
ODD & Storage
Video HD Technology, and Intel® Insider TM • 3 Audio jacks support 8 channel
• Maximum shared memory of 1024 MB Internal I/O Connectors • 1 x USB 3.0/2.0 connectors support additional
Storage • Intel® B150 Chipset 2 USB 3.0 ports
- 6 x SATA 6.0 Gb/s ports (gray) • 2 x USB 2.0/1.1 connectors support additional
LAN • Realtek® RTL8111F Gigabit LAN Controller 4 USB 2.0 ports
Audio • Realtek ALC887 8-channel High Definition Audio CODEC • 6 x SATA 6Gb/s connector
- Supports jack-detection and front panel jack-retasking • 1 x CPU Fan connector
USB • 6 x USB 2.0 ports • 2 x Chassis Fan connectors
(4 ports at mid-board, 2 ports at back panel) • 1 x Front panel audio connector(s) (AAFP)
• 6 x USB 3.0 ports • 1 x System panel connector
(2 ports at mid-board, 4 ports at back panel) • 1 x 24-pin ATX Power connector
ASUS Unique Features <Dependable Stability> • 1 x 4-pin ATX 12V Power connector
Server & Workstation
Server & Workstation
• ASUS 5X PROTECTION II • 1 x Speaker connector
- ASUS LANGuard - Surge-protected networking • 2 x COM port header
- ASUS Overvoltage Protection - World-class circuit- • 1 x LPT port header
protecting power design • 1 x Chassis Intrusion header
- ASUS DRAM Overcurrent Protection - Enhanced DRAM • 1 x Clear CMOS header
overcurrent protection • 1 x MONO-out header
- ASUS Stainless Steel Back I/O - 3X more durable • 1 x 14-1 pin TPM header
- ESD Guards - Electrostatic discharge protection Accessories • 2 x Serial ATA 6.0Gb/s cable
<Superb performance> • 1 x Support DVD
Mini / Stick PC
Mini / Stick PC
• UEFI BIOS • 1 x I/O Shield
- Most advanced options with fast response time • User’s manual
<Easy PC DIY> Form Factor • mATX Form Factor 9.6 x 8.9 inches (24.4 x 22.6cm)
• Safe motherboard mounting
- Component-free areas to minimize damage risk Note: The specifications are subject to changes without notice.
• Q-Design
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
