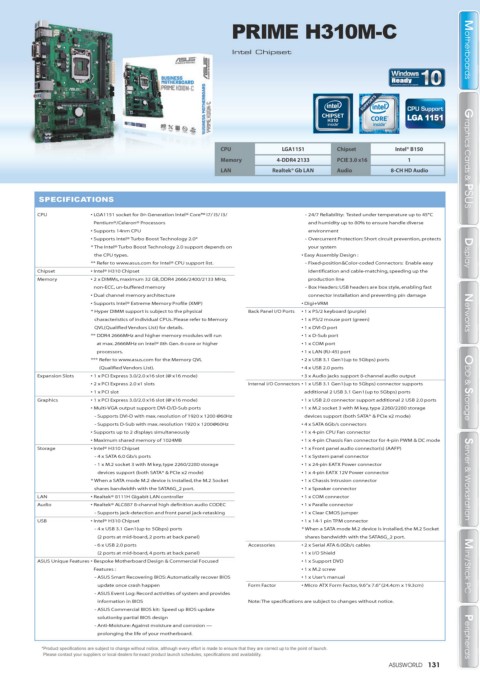

Page 133 - ASUS_WORLD_134_ebook

PRIME H310M-C

Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel® B150
Memory 4-DDR4 2133 PCIE 3.0 x16 1 Graphics Cards & PSUS

LAN Realtek® Gb LAN Audio 8-CH HD Audio

SPECIFICATIONS
Graphics Cards & PSUS

CPU • LGA1151 socket for 8th Generation Intel® Core™ i7/ i5/ i3/ - 24/7 Reliability: Tested under temperature up to 45°C
Pentium®/Celeron® Processors and humidity up to 80% to ensure handle diverse
• Supports 14nm CPU environment
• Supports Intel® Turbo Boost Technology 2.0* - Overcurrent Protection: Short circuit prevention, protects
* The Intel® Turbo Boost Technology 2.0 support depends on your system
the CPU types. • Easy Assembly Design : Display Display
** Refer to www.asus.com for Intel® CPU support list. - Fixed-position&Color-coded Connectors: Enable easy
Chipset • Intel® H310 Chipset identification and cable-matching, speeding up the

Memory • 2 x DIMMs, maximum 32 GB, DDR4 2666/2400/2133 MHz, production line
non-ECC, un-buffered memory - Box Headers: USB headers are box style, enabling fast
• Dual channel memory architecture connector installation and preventing pin damage
• Supports Intel® Extreme Memory Profile (XMP) • Digi+VRM
* Hyper DIMM support is subject to the physical Back Panel I/O Ports • 1 x PS/2 keyboard (purple) Networks Networks
characteristics of individual CPUs. Please refer to Memory • 1 x PS/2 mouse port (green)
QVL(Qualified Vendors List) for details. • 1 x DVI-D port
** DDR4 2666MHz and higher memory modules will run • 1 x D-Sub port
at max. 2666MHz on Intel® 8th Gen. 6-core or higher • 1 x COM port
processors. • 1 x LAN (RJ-45) port
*** Refer to www.asus.com for the Memory QVL • 2 x USB 3.1 Gen1(up to 5Gbps) ports
(Qualified Vendors List). • 4 x USB 2.0 ports
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode) • 3 x Audio jacks support 8-channel audio output
• 2 x PCI Express 2.0 x1 slots Internal I/O Connectors • 1 x USB 3.1 Gen1(up to 5Gbps) connector supports
• 1 x PCI slot additional 2 USB 3.1 Gen1(up to 5Gbps) ports ODD & Storage
Graphics • 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode) • 1 x USB 2.0 connector support additional 2 USB 2.0 ports
• Multi-VGA output support: DVI-D/D-Sub ports • 1 x M.2 socket 3 with M key, type 2260/2280 storage
- Supports DVI-D with max. resolution of 1920 x 1200 @60Hz devices support (both SATA* & PCIe x2 mode)
ODD & Storage
- Supports D-Sub with max. resolution 1920 x 1200@60Hz • 4 x SATA 6Gb/s connectors
• Supports up to 2 displays simultaneously • 1 x 4-pin CPU Fan connector
• Maximum shared memory of 1024MB • 1 x 4-pin Chassis Fan connector for 4-pin PWM & DC mode
Storage • Intel® H310 Chipset • 1 x Front panel audio connector(s) (AAFP)
- 4 x SATA 6.0 Gb/s ports • 1 x System panel connector
- 1 x M.2 socket 3 with M key, type 2260/2280 storage • 1 x 24-pin EATX Power connector
devices support (both SATA* & PCIe x2 mode) • 1 x 4-pin EATX 12V Power connector
* When a SATA mode M.2 device is installed, the M.2 Socket • 1 x Chassis Intrusion connector Server & Workstation
shares bandwidth with the SATA6G_2 port. • 1 x Speaker connector
LAN • Realtek® 8111H Gigabit LAN controller • 1 x COM connector
Audio • Realtek® ALC887 8-channel high definition audio CODEC • 1 x Paralle connector
- Supports jack-detection and front panel jack-retasking • 1 x Clear CMOS jumper
USB • Intel® H310 Chipset • 1 x 14-1 pin TPM connector
Server & Workstation
- 4 x USB 3.1 Gen1(up to 5Gbps) ports * When a SATA mode M.2 device is installed, the M.2 Socket
(2 ports at mid-board, 2 ports at back panel) shares bandwidth with the SATA6G_2 port.
- 6 x USB 2.0 ports Accessories • 2 x Serial ATA 6.0Gb/s cables
(2 ports at mid-board, 4 ports at back panel) • 1 x I/O Shield
ASUS Unique Features • Bespoke Motherboard Design & Commercial Focused • 1 x Support DVD
Features : • 1 x M.2 screw Mini / Stick PC Mini / Stick PC
- ASUS Smart Recovering BIOS: Automatically recover BIOS • 1 x User’s manual
update once crash happen Form Factor • Micro ATX Form Factor, 9.6”x 7.6” (24.4cm x 19.3cm)
- ASUS Event Log: Record activities of system and provides
information in BIOS Note: The specifications are subject to changes without notice.
- ASUS Commercial BIOS kit: Speed up BIOS update
solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion —
prolonging the life of your motherboard. Peripherals Peripherals
