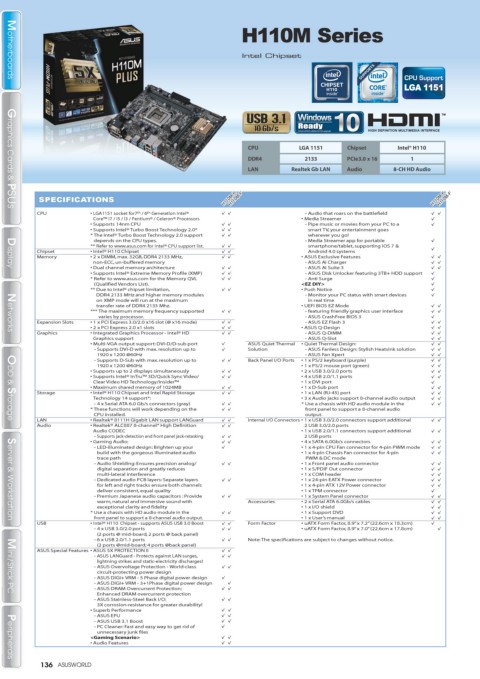

H110M Series
0
11
e
s
Intel Chipset
Intel Chipset
Motherboards
Motherboards

CPU LGA 1151 Chipset Intel® H110
DDR4 2133 PCIe3.0 x 16 1
LAN Realtek Gb LAN Audio 8-CH HD Audio

H110M-K H110M-K
H110M-F
H110M-F
SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • LGA1151 socket for7 th / 6 th Generation Intel® - Audio that roars on the battlefield
Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors • Media Streamer
• Supports 14nm CPU - Pipe music or movies from your PC to a
• Supports Intel® Turbo Boost Technology 2.0* smart TV, your entertainment goes
* The Intel® Turbo Boost Technology 2.0 support wherever you go!
depends on the CPU types. - Media Streamer app for portable
** Refer to www.asus.com for Intel® CPU support list. smartphone/tablet, supporting iOS 7 &
Chipset • Intel® H110 Chipset Android 4.0 systems
Memory • 2 x DIMM, max. 32GB, DDR4 2133 MHz, • ASUS Exclusive Features
non-ECC, un-buffered memory - ASUS Ai Charger
• Dual channel memory architecture - ASUS AI Suite 3
Display
Display
• Supports Intel® Extreme Memory Profile (XMP) - ASUS Disk Unlocker featuring 3TB+ HDD support
* Refer to www.asus.com for the Memory QVL - Anti Surge
(Qualified Vendors List). <EZ DIY>
** Due to Intel® chipset limitation, • Push Notice
DDR4 2133 MHz and higher memory modules - Monitor your PC status with smart devices
on XMP mode will run at the maximum in real time
transfer rate of DDR4 2133 Mhz. • UEFI BIOS EZ Mode
*** The maximum memory frequency supported - featuring friendly graphics user interface
varies by processor. - ASUS CrashFree BIOS 3
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode) - ASUS EZ Flash 3
• 2 x PCI Express 2.0 x1 slots • ASUS Q-Design
Graphics • Integrated Graphics Processor - Intel® HD - ASUS Q-DIMM

Networks
Networks
Graphics support - ASUS Q-Slot

• Multi-VGA output support: DVI-D/D-sub port ASUS Quiet Thermal • Quiet Thermal Design:

- Supports DVI-D with max. resolution up to Solution - ASUS Fanless Design: Stylish Heatsink solution
1920 x 1200 @60Hz - ASUS Fan Xpert
- Supports D-Sub with max. resolution up to Back Panel I/O Ports • 1 x PS/2 keyboard (purple)
1920 x 1200 @60Hz • 1 x PS/2 mouse port (green)
• Supports up to 2 displays simultaneously • 2 x USB 3.0/2.0 ports
• Supports Intel® InTru™ 3D/Quick Sync Video/ • 4 x USB 2.0/1.1 ports
Clear Video HD Technology/Insider™ • 1 x DVI port
• Maximum shared memory of 1024MB • 1 x D-Sub port
Storage • Intel® H110 Chipset and Intel Rapid Storage • 1 x LAN (RJ-45) port

Technology 14 support*: • 3 x Audio jacks support 8-channel audio output
- 4 x Serial ATA 6.0 Gb/s connectors (gray) * Use a chassis with HD audio module in the
* These functions will work depending on the front panel to support a 8-channel audio
CPU installed. output.

LAN • Realtek® 8111H Gigabit LAN support LANGuard Internal I/O Connectors • 1 x USB 3.0/2.0 connectors support additional
ODD & Storage
ODD & Storage

Audio • Realtek® ALC887 8-channel* High Definition 2 USB 3.0/2.0 ports
Audio CODEC • 1 x USB 2.0/1.1 connectors support additional
- Supports jack-detection and front panel jack-retasking 2 USB ports
• Gaming Audio: • 4 x SATA 6.0Gb/s connectors
- LED-illuminated design: Brighten up your • 1 x 4-pin CPU Fan connector for 4-pin PWM mode
build with the gorgeous illuminated audio • 1 x 4-pin Chassis Fan connector for 4-pin
trace path PWM & DC mode
- Audio Shielding: Ensures precision analog/ • 1 x Front panel audio connector
digital separation and greatly reduces • 1 x S/PDIF Out connector
multi-lateral interference • 1 x COM header
- Dedicated audio PCB layers: Separate layers • 1 x 24-pin EATX Power connector
for left and right tracks ensure both channels • 1 x 4-pin ATX 12V Power connector
deliver consistent, equal quality • 1 x TPM connector
- Premium Japanese audio capacitors : Provide • 1 x System Panel connector

warm, natural and immersive sound with Accessories • 2 x Serial ATA 6.0Gb/s cables
exceptional clarity and fidelity • 1 x I/O shield
* Use a chassis with HD audio module in the • 1 x Support DVD
front panel to support a 8-channel audio output. • 1 x User’s manual
Server & Workstation
Server & Workstation
USB • Intel® H110 Chipset - supports ASUS USB 3.0 Boost Form Factor • uATX Form Factor, 8.9” x 7.2” (22.6cm x 18.3cm)
- 4 x USB 3.0/2.0 ports • uATX Form Factor, 8.9” x 7.0” (22.6cm x 17.8cm)
(2 ports @ mid-board, 2 ports @ back panel)
- 6 x USB 2.0/1.1 ports Note: The specifications are subject to changes without notice.
(2 ports @mid-board; 4 ports @back panel)
ASUS Special Features • ASUS 5X PROTECTION II
- ASUS LANGuard - Protects against LAN surges,
lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection - World-class
circuit-protecting power design
- ASUS DIGI+ VRM - 5 Phase digital power design

- ASUS DIGI+ VRM - 3+1Phase digital power design

- ASUS DRAM Overcurrent Protection:

Enhanced DRAM overcurrent protection
Mini / Stick PC
Mini / Stick PC

- ASUS Stainless-Steel Back I/O:

3X corrosion-resistance for greater durability!
• Superb Performance
- ASUS EPU

- ASUS USB 3.1 Boost
- PC Cleaner: Fast and easy way to get rid of

unnecessary junk files
<Gaming Scenario>
• Audio Features
Peripherals
Peripherals
136 ASUSWORLD
