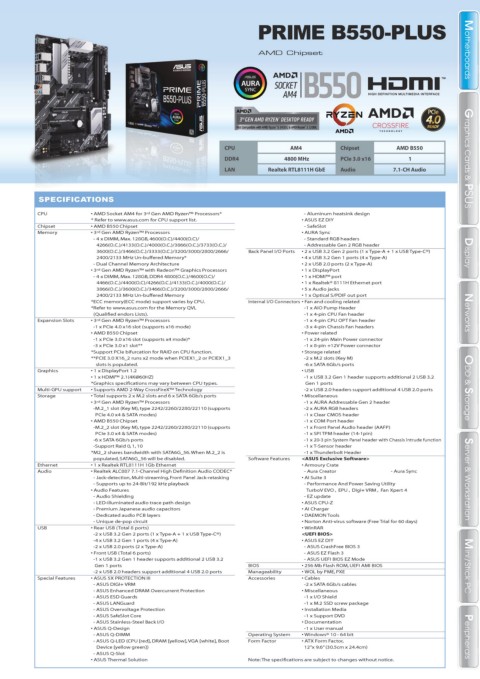

PRIME B550-PLUS

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD B550
DDR4 4800 MHz PCIe 3.0 x16 1 Graphics Cards & PSUS
LAN Realtek RTL8111H GbE Audio 7.1-CH Audio

SPECIFICATIONS
Graphics Cards & PSUS
CPU • AMD Socket AM4 for 3 rd Gen AMD Ryzen™ Processors* - Aluminum heatsink design
* Refer to www.asus.com for CPU support list. • ASUS EZ DIY
Chipset • AMD B550 Chipset - SafeSlot
Memory • 3 rd Gen AMD Ryzen™ Processors • AURA Sync
- 4 x DIMM, Max. 128GB, 4600(O.C)/4400(O.C)/ - Standard RGB headers
4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ - Addressable Gen 2 RGB header
3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/ Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) Display
2400/2133 MHz Un-buffered Memory* • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- Dual Channel Memory Architecture • 2 x USB 2.0 ports (2 x Type-A)
• 3 rd Gen AMD Ryzen™ with Radeon™ Graphics Processors • 1 x DisplayPort
Display
- 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/ • 1 x HDMI™ port
4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/ • 1 x Realtek® 8111H Ethernet port
3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/ • 5 x Audio jacks
2400/2133 MHz Un-buffered Memory • 1 x Optical S/PDIF out port
*ECC memory(ECC mode) support varies by CPU. Internal I/O Connectors • Fan and cooling related
*Refer to www.asus.com for the Memory QVL -1 x AIO Pump Header
(Qualified endors Lists). -1 x 4-pin CPU Fan header Networks Networks
Expansion Slots • 3 rd Gen AMD Ryzen™ Processors -1 x 4-pin CPU OPT Fan header
-1 x PCIe 4.0 x16 slot (supports x16 mode) -3 x 4-pin Chassis Fan headers
• AMD B550 Chipset • Power related
-1 x PCIe 3.0 x16 slot (supports x4 mode)* -1 x 24-pin Main Power connector
-3 x PCIe 3.0 x1 slot** -1 x 8-pin +12V Power connector
*Support PCIe bifurcation for RAID on CPU function. • Storage related
**PCIE 3.0 X16_2 runs x2 mode when PCIEX1_2 or PCIEX1_3 -2 x M.2 slots (Key M)
slots is populated. -6 x SATA 6Gb/s ports
Graphics • 1 x DisplayPort 1.2 • USB
• 1 x HDMI™ 2.1(4K@60HZ) -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
*Graphics specifications may vary between CPU types. Gen 1 ports
Multi-GPU support • Supports AMD 2-Way CrossFireX™ Technology -2 x USB 2.0 headers support additional 4 USB 2.0 ports ODD & Storage
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports • Miscellaneous
• 3 rd Gen AMD Ryzen™ Processors -1 x AURA Addressable Gen 2 header
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports -2 x AURA RGB headers
PCIe 4.0 x4 & SATA modes) -1 x Clear CMOS header
• AMD B550 Chipset -1 x COM Port header
ODD & Storage
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports -1 x Front Panel Audio header (AAFP)
PCIe 3.0 x4 & SATA modes) -1 x SPI TPM header (14-1pin)
-6 x SATA 6Gb/s ports -1 x 20-3 pin System Panel header with Chassis intrude function
-Support Raid 0, 1, 10 -1 x T-Sensor header
*M2_2 shares bandwidth with SATA6G_56. When M.2_2 is -1 x Thunderbolt Header
populated, SATA6G_56 will be disabled. Software Features <ASUS Exclusive Software>
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet • Armoury Crate
Audio • Realtek ALC887 7.1-Channel High Definition Audio CODEC* - Aura Creator - Aura Sync
- Jack-detection, Multi-streaming, Front Panel Jack-retasking • AI Suite 3 Server & Workstation Server & Workstation
- Supports up to 24-Bit/192 kHz playback - Performance And Power Saving Utility
• Audio Features TurboV EVO , EPU , Digi+ VRM , Fan Xpert 4
- Audio Shielding - EZ update
- LED-illuminated audio trace path design • ASUS CPU-Z
- Premium Japanese audio capacitors • AI Charger
- Dedicated audio PCB layers • DAEMON Tools
- Unique de-pop circuit • Norton Anti-virus software (Free Trial for 60 days)
USB • Rear USB (Total 8 ports) • WinRAR
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) <UEFI BIOS>
-4 x USB 3.2 Gen 1 ports (4 x Type-A) • ASUS EZ DIY
-2 x USB 2.0 ports (2 x Type-A) - ASUS CrashFree BIOS 3
• Front USB (Total 6 ports) - ASUS EZ Flash 3
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 - ASUS UEFI BIOS EZ Mode
Gen 1 ports BIOS • 256 Mb Flash ROM, UEFI AMI BIOS Mini / Stick PC
-2 x USB 2.0 headers support additional 4 USB 2.0 ports Manageability • WOL by PME, PXE
Special Features • ASUS 5X PROTECTION III Accessories • Cables
- ASUS DIGI+ VRM -2 x SATA 6Gb/s cables
- ASUS Enhanced DRAM Overcurrent Protection • Miscellaneous
Mini / Stick PC
- ASUS ESD Guards -1 x I/O Shield
- ASUS LANGuard -1 x M.2 SSD screw package
- ASUS Overvoltage Protection • Installation Media
- ASUS SafeSlot Core -1 x Support DVD
- ASUS Stainless-Steel Back I/O • Documentation
• ASUS Q-Design -1 x User manual
- ASUS Q-DIMM Operating System • Windows® 10 - 64 bit Peripherals Peripherals
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Form Factor • ATX Form Factor,
Device [yellow green]) 12”x 9.6” (30.5cm x 24.4cm)
- ASUS Q-Slot
• ASUS Thermal Solution Note: The specifications are subject to changes without notice.
