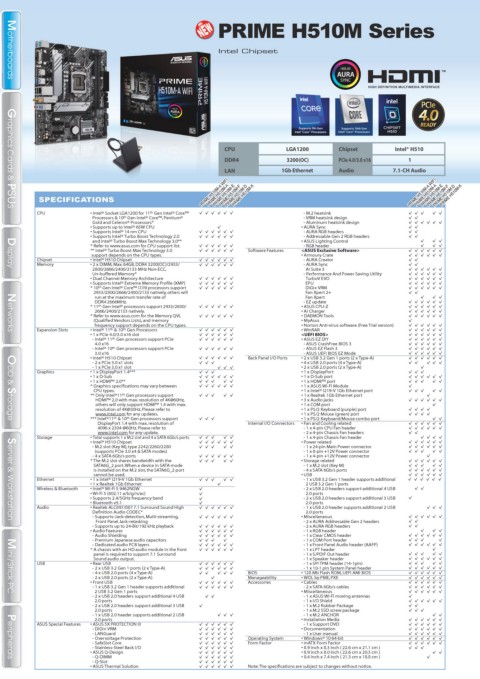

Page 134 - ASUS_WORLD_134_ebook

PRIME H510M Series

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel® H510
DDR4 3200(OC) PCIe 4.0/3.0 x16 1
LAN 1Gb Ethernet Audio 7.1-CH Audio
PRIME H510M-A
PRIME H510M-A
PRIME H510M-A WIFI PRIME H510M-A WIFI
PRIME H510M-D
PRIME H510M-D
PRIME H510M-K
PRIME H510M-F
PRIME H510M-F
PRIME H510M-K
SPECIFICATIONS PRIME H510M-E PRIME H510M-E
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 11 th Gen Intel® Core™ - M.2 heatsink
Processors & 10 th Gen Intel® Core™, Pentium® - VRM heatsink design
Gold and Celeron® Processors* - Aluminum heatsink design
• Supports up to Intel® 65W CPU • AURA Sync
• Supports Intel® 14 nm CPU - AURA RGB headers
• Supports Intel® Turbo Boost Technology 2.0 - Addressable Gen 2 RGB headers
and Intel® Turbo Boost Max Technology 3.0** • ASUS Lighting Control
* Refer to www.asus.com for CPU support list. - RGB header
** Intel® Turbo Boost Max Technology 3.0 Software Features <ASUS Exclusive Software>
support depends on the CPU types. • Armoury Crate
Chipset • Intel® H510 Chipset - AURA Creator
Memory • 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/ - AURA Sync
2800/2666/2400/2133 MHz Non-ECC, AI Suite 3
Display
Display
Un-buffered Memory* - Performance And Power Saving Utility
• Dual Channel Memory Architecture TurboV EVO
• Supports Intel® Extreme Memory Profile (XMP) EPU
* 10 th Gen Intel® Core™ i7/i9 processors support DIGI+ VRM
2933/2800/2666/2400/2133 natively, others will Fan Xpert 2+
run at the maximum transfer rate of Fan Xpert
DDR4 2666MHz. - EZ update
* 11 th Gen Intel® processors support 2933/2800/ • ASUS CPU-Z
2666/2400/2133 natively. • AI Charger
* Refer to www.asus.com for the Memory QVL • DAEMON Tools
(Qualified Vendors Lists), and memory • MyAsus
frequency support depends on the CPU types. • Norton Anti-virus software (Free Trial version)
Expansion Slots • Intel® 11 th & 10 th Gen Processors • WinRAR
Networks
Networks
• 1 x PCIe 4.0/3.0 x16 slot <UEFI BIOS>
- Intel® 11 th Gen processors support PCIe • ASUS EZ DIY
4.0 x16 - ASUS CrashFree BIOS 3
- Intel® 10 th Gen processors support PCIe - ASUS EZ Flash 3
3.0 x16 - ASUS UEFI BIOS EZ Mode
• Intel® H510 Chipset Back Panel I/O Ports • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x PCIe 3.0 x1 slots • 4 x USB 2.0 ports (4 x Type-A)
- 1 x PCIe 3.0 x1 slot • 2 x USB 2.0 ports (2 x Type-A)
Graphics • 1 x DisplayPort 1.4*** • 1 x DisplayPort
• 1 x D-Sub • 1 x D-Sub port
• 1 x HDMI™ 2.0** • 1 x HDMI™ port
* Graphics specifications may vary between • 1 x ASUS Wi-Fi Module
CPU types. • 1 x Intel® I219-V 1Gb Ethernet port
** Only Intel®11 th Gen processors support • 1 x Realtek 1Gb Ethernet port
HDMI™ 2.0 with max. resolution of 4K@60Hz, • 3 x Audio jacks
others will only support HDMI™ 1.4 with max. • 1 x COM port
resolution of 4K@30Hz. Please refer to • 1 x PS/2 Keyboard (purple) port
www.intel.com for any updates. • 1 x PS/2 Mouse (green) port
*** Intel®11 th & 10 th Gen processors support • 1 x PS/2 Keyboard/Mouse combo port
ODD & Storage
ODD & Storage
DisplayPort 1.4 with max. resolution of Internal I/O Connectors • Fan and Cooling related
4096 x 2304 @60Hz. Please refer to - 1 x 4-pin CPU Fan header
www.intel.com for any update. - 2 x 4-pin Chassis Fan headers
Storage • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports - 1 x 4-pin Chassis Fan header
• Intel® H510 Chipset • Power related
- M.2 slot (Key M), type 2242/2260/2280 - 1 x 24-pin Main Power connector
(supports PCIe 3.0 x4 & SATA modes) - 1 x 8-pin +12V Power connector
- 4 x SATA 6Gb/s ports - 1 x 4-pin +12V Power connector
* The M.2 slot shares bandwidth with the • Storage related
SATA6G_2 port. When a device in SATA mode - 1 x M.2 slot (Key M)
is installed on the M.2 slot, the SATA6G_2 port - 4 x SATA 6Gb/s ports
cannot be used. • USB
Ethernet • 1 x Intel® I219-V 1Gb Ethernet - 1 x USB 3.2 Gen 1 header supports additional
• 1 x Realtek 1Gb Ethernet 2 USB 3.2 Gen 1 ports
Wireless & Bluetooth • Intel® Wi-Fi 5 9462NGW - 2 x USB 2.0 headers support additional 4 USB
• Wi-Fi 5 (802.11 a/b/g/n/ac) 2.0 ports
• Supports 2.4/5GHz frequency band - 2 x USB 2.0 headers support additional 3 USB
• Bluetooth v5.1 2.0 ports
Audio • Realtek ALC897/887 7.1 Surround Sound High - 1 x USB 2.0 header supports additional 2 USB
Definition Audio CODEC* 2.0 ports
- Supports: Jack-detection, Multi-streaming, • Miscellaneous
Front Panel Jack-retasking - 2 x AURA Addressable Gen 2 headers
Server & Workstation
Server & Workstation
- Supports up to 24-Bit/192 kHz playback - 2 x AURA RGB headers
• Audio Features - 1 x RGB header
- Audio Shielding - 1 x Clear CMOS header
- Premium Japanese audio capacitors - 1 x COM Port header
- Dedicated audio PCB layers - 1 x Front Panel Audio header (AAFP)
* A chassis with an HD audio module in the front - 1 x LPT header
panel is required to support 7.1 Surround - 1 x S/PDIF Out header
Sound audio output. - 1 x Speaker header
USB • Rear USB - 1 x SPI TPM header (14-1pin)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A) - 1 x 10-1 pin System Panel header
- 4 x USB 2.0 ports (4 x Type-A) BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
- 2 x USB 2.0 ports (2 x Type-A) Manageability • WOL by PME, PXE
• Front USB Accessories • Cables
- 1 x USB 3.2 Gen 1 header supports additional - 2 x SATA 6Gb/s cables
2 USB 3.2 Gen 1 ports • Miscellaneous
Mini / Stick PC
Mini / Stick PC
- 2 x USB 2.0 headers support additional 4 USB - 1 x ASUS Wi-Fi moving antennas
2.0 ports - 1 x I/O Shield
- 2 x USB 2.0 headers support additional 3 USB - 1 x M.2 Rubber Package
2.0 ports - 1 x M.2 SSD screw package
- 1 x USB 2.0 header supports additional 2 USB - 1 x M.2 ANCHOR
2.0 ports • Installation Media
ASUS Special Features • ASUS 5X PROTECTION III - 1 x Support DVD
- DIGI+ VRM • Documentation
- LANGuard - 1 x User manual
- Overvoltage Protection Operating System • Windows® 10 64-bit
- SafeSlot Core Form Factor • mATX Form Factor
- Stainless-Steel Back I/O • 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
• ASUS Q-Design • 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
- Q-DIMM • 8.4 inch x 7.4 inch ( 21.3 cm x 18.8 cm )
Peripherals
Peripherals
- Q-Slot
• ASUS Thermal Solution Note: The specifications are subject to changes without notice.
