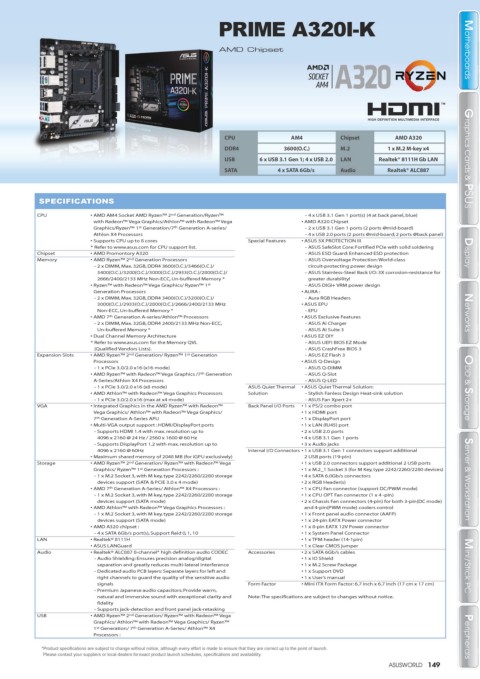

PRIME A320I-K

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD A320
DDR4 3600(O.C.) M.2 1 x M.2 M-key x4
USB 6 x USB 3.1 Gen 1; 4 x USB 2.0 LAN Realtek® 8111H Gb LAN Graphics Cards & PSUS
SATA 4 x SATA 6Gb/s Audio Realtek® ALC887

SPECIFICATIONS
Graphics Cards & PSUS
CPU • AMD AM4 Socket AMD Ryzen™ 2 nd Generation/Ryzen™ - 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega • AMD A320 Chipset
Graphics/Ryzen™ 1 st Generation/7 th Generation A-series/ - 2 x USB 3.1 Gen 1 ports (2 ports @mid-board)
Athlon X4 Processors - 4 x USB 2.0 ports (2 ports @mid-board; 2 ports @back panel)
• Supports CPU up to 8 cores Special Features • ASUS 5X PROTECTION III
* Refer to www.asus.com for CPU support list. - ASUS SafeSlot Core: Fortified PCIe with solid soldering
Chipset • AMD Promontory A320 - ASUS ESD Guard: Enhanced ESD protection Display
Memory • AMD Ryzen™ 2 nd Generation Processors - ASUS Overvoltage Protection: World-class
- 2 x DIMM, Max. 32GB, DDR4 3600(O.C.)/3466(O.C.)/ circuit-protecting power design
Display
3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/ - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
2666/2400/2133 MHz Non-ECC, Un-buffered Memory * greater durability!
• Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1 st - ASUS DIGI+ VRM power design
Generation Processors • AURA :
- 2 x DIMM, Max. 32GB, DDR4 3400(O.C.)/3200(O.C.)/ - Aura RGB Headers
3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz • ASUS EPU
Non-ECC, Un-buffered Memory * - EPU Networks Networks
• AMD 7 th Generation A-series/Athlon™ Processors • ASUS Exclusive Features
- 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, - ASUS Ai Charger
Un-buffered Memory * - ASUS AI Suite 3
• Dual Channel Memory Architecture • ASUS EZ DIY
* Refer to www.asus.com for the Memory QVL - ASUS UEFI BIOS EZ Mode
(Qualified Vendors Lists). - ASUS CrashFree BIOS 3
Expansion Slots • AMD Ryzen™ 2 nd Generation/ Ryzen™ 1 st Generation - ASUS EZ Flash 3
Processors • ASUS Q-Design
- 1 x PCIe 3.0/2.0 x16 (x16 mode) - ASUS Q-DIMM
• AMD Ryzen™ with Radeon™ Vega Graphics /7 th Generation - ASUS Q-Slot
A-Series/Athlon X4 Processors - ASUS Q-LED
- 1 x PCIe 3.0/2.0 x16 (x8 mode) ASUS Quiet Thermal • ASUS Quiet Thermal Solution: ODD & Storage
• AMD Athlon™ with Radeon™ Vega Graphics Processors Solution - Stylish Fanless Design Heat-sink solution
- 1 x PCIe 3.0/2.0 x16 (max at x4 mode) - ASUS Fan Xpert 2+
VGA • Integrated Graphics in the AMD Ryzen™ with Radeon™ Back Panel I/O Ports • 1 x PS/2 combo port

Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ • 1 x HDMI port
7 th Generation A-Series APU • 1 x DisplayPort port
ODD & Storage
• Multi-VGA output support : HDMI/DisplayPort ports • 1 x LAN (RJ45) port
- Supports HDMI 1.4 with max. resolution up to • 2 x USB 2.0 ports
4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution up to • 3 x Audio jacks
4096 x 2160 @ 60Hz Internal I/O Connectors • 1 x USB 3.1 Gen 1 connectors support additional
• Maximum shared memory of 2048 MB (for iGPU exclusively) 2 USB ports (19-pin)
Storage • AMD Ryzen™ 2 nd Generation/ Ryzen™ with Radeon™ Vega • 1 x USB 2.0 connectors support additional 2 USB ports
Graphics/ Ryzen™ 1 st Generation Processors : • 1 x M.2_1 Socket 3 (for M Key, type 2242/2260/2280 devices)
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage • 4 x SATA 6.0Gb/s connectors
devices support (SATA & PCIE 3.0 x 4 mode) • 2 x RGB Header(s) Server & Workstation
• AMD 7 th Generation A-Series/ Athlon™ X4 Processors : • 1 x CPU Fan connector (support DC/PWM mode)
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage • 1 x CPU OPT Fan connector (1 x 4 -pin)
devices support (SATA mode) • 2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode)
• AMD Athlon™ with Radeon™ Vega Graphics Processors : and 4-pin(PWM mode) coolers control
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage • 1 x Front panel audio connector (AAFP)
devices support (SATA mode) • 1 x 24-pin EATX Power connector
• 4 x USB 3.1 Gen 1 ports Server & Workstation
• AMD A320 chipset : • 1 x 8-pin EATX 12V Power connector
- 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 • 1 x System Panel Connector
LAN • Realtek® 8111H • 1 x TPM header (14-1pin)
• ASUS LANGuard • 1 x Clear CMOS jumper
Audio • Realtek® ALC887 8-channel* high definition audio CODEC Accessories • 2 x SATA 6Gb/s cables
- Audio Shielding: Ensures precision analog/digital • 1 x IO Shield
separation and greatly reduces multi-lateral interference • 1 x M.2 Screw Package Mini / Stick PC Mini / Stick PC
- Dedicated audio PCB layers: Separate layers for left and • 1 x Support DVD
right channels to guard the quality of the sensitive audio • 1 x User’s manual
signals Form Factor • Mini ITX Form Factor: 6.7 inch x 6.7 inch (17 cm x 17 cm)
- Premium Japanese audio capacitors: Provide warm,
natural and immersive sound with exceptional clarity and Note: The specifications are subject to changes without notice.
fidelity
- Supports jack-detection and front panel jack-retasking
USB • AMD Ryzen™ 2 nd Generation/ Ryzen™ with Radeon™ Vega
Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™
1 st Generation/ 7 th Generation A-Series/ Athlon™ X4
Processors : Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
