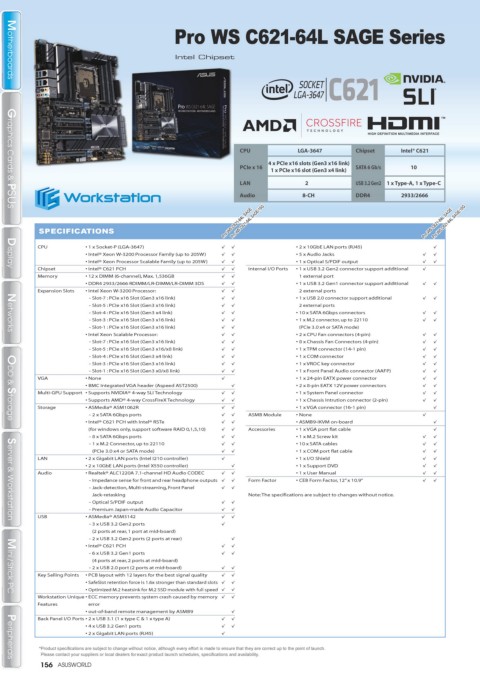

Pro WS C621-64L SAGE Series
Intel Chipset
Motherboards
Motherboards
CPU LGA-3647 Chipset Intel® C621
4 x PCIe x16 slots (Gen3 x16 link)
PCIe x 16 SATA 6 Gb/s 10
1 x PCIe x16 slot (Gen3 x4 link)
LAN 2 USB 3.2 Gen2 1 x Type-A, 1 x Type-C
Audio 8-CH DDR4 2933/2666
Pro WS C621-64L SAGE/10G
Pro WS C621-64L SAGE/10G
Pro WS C621-64L SAGE Pro WS C621-64L SAGE
Graphics Cards & PSUS
Graphics Cards & PSUS
SPECIFICATIONS
CPU • 1 x Socket-P (LGA-3647) • 2 x 10GbE LAN ports (RJ45)
• Intel® Xeon W-3200 Processor Family (up to 205W) • 5 x Audio Jacks
• Intel® Xeon Processor Scalable Family (up to 205W) • 1 x Optical S/PDIF output
Chipset • Intel® C621 PCH Internal I/O Ports • 1 x USB 3.2 Gen2 connector support additional
Display
Display
Memory • 12 x DIMM (6-channel), Max. 1,536GB 1 external port
• DDR4 2933/2666 RDIMM/LR-DIMM/LR-DIMM 3DS • 1 x USB 3.2 Gen1 connector support additional
Expansion Slots • Intel Xeon W-3200 Processor: 2 external ports
- Slot-7 : PCIe x16 Slot (Gen3 x16 link) • 1 x USB 2.0 connector support additional
- Slot-5 : PCIe x16 Slot (Gen3 x16 link) 2 external ports
- Slot-4 : PCIe x16 Slot (Gen3 x4 link) • 10 x SATA 6Gbps connectors
- Slot-3 : PCIe x16 Slot (Gen3 x16 link) • 1 x M.2 connector, up to 22110
- Slot-1 : PCIe x16 Slot (Gen3 x16 link) (PCIe 3.0 x4 or SATA mode)
Networks
Networks
• Intel Xeon Scalable Processor: • 2 x CPU Fan connectors (4-pin)
- Slot-7 : PCIe x16 Slot (Gen3 x16 link) • 8 x Chassis Fan Connectors (4-pin)
- Slot-5 : PCIe x16 Slot (Gen3 x16/x8 link) • 1 x TPM connector (14-1 pin)
- Slot-4 : PCIe x16 Slot (Gen3 x4 link) • 1 x COM connector
- Slot-3 : PCIe x16 Slot (Gen3 x16 link) • 1 x VROC key connector
- Slot-1 : PCIe x16 Slot (Gen3 x0/x8 link) • 1 x Front Panel Audio connector (AAFP)
VGA • None • 1 x 24-pin EATX power connector
• BMC Integrated VGA header (Aspeed AST2500) • 2 x 8-pin EATX 12V power connectors
Multi-GPU Support • Supports NVIDIA® 4-way SLI Technology • 1 x System Panel connector
• Supports AMD® 4-way CrossFireX Technology • 1 x Chassis Intrution connector (2-pin)
Storage • ASMedia® ASM1062R • 1 x VGA connector (16-1 pin)
- 2 x SATA 6Gbps ports ASMB Module • None
• Intel® C621 PCH with Intel® RSTe • ASMB9-iKVM on-board
ODD & Storage
ODD & Storage
(for windows only, support software RAID 0,1,5,10) Accessories • 1 x VGA port flat cable
- 8 x SATA 6Gbps ports • 1 x M.2 Screw kit
- 1 x M.2 Connector, up to 22110 • 10 x SATA cables
(PCIe 3.0 x4 or SATA mode) • 1 x COM port flat cable
LAN • 2 x Gigabit LAN ports (Intel I210 controller) • 1 x I/O Shield
• 2 x 10GbE LAN ports (Intel X550 controller) • 1 x Support DVD
Audio • Realtek® ALC1220A 7.1-channel HD Audio CODEC • 1 x User Manual
- Impedance sense for front and rear headphone outputs Form Factor • CEB Form Factor, 12” x 10.9”
- Jack-detection, Multi-streaming, Front Panel
Jack-retasking Note: The specifications are subject to changes without notice.
- Optical S/PDIF output
- Premium Japan-made Audio Capacitor
USB • ASMedia® ASM3142
Server & Workstation
Server & Workstation
- 3 x USB 3.2 Gen2 ports
(2 ports at rear, 1 port at mid-board)
- 2 x USB 3.2 Gen2 ports (2 ports at rear)
• Intel® C621 PCH
- 6 x USB 3.2 Gen1 ports
(4 ports at rear, 2 ports at mid-board)
- 2 x USB 2.0 port (2 ports at mid-board)
Key Selling Points • PCB layout with 12 layers for the best signal quality
• SafeSlot retention force is 1.6x stronger than standard slots
• Optimized M.2 heatsink for M.2 SSD module with full speed
Mini / Stick PC
Mini / Stick PC
Workstation Unique • ECC memory prevents system crash caused by memory
Features error
• out-of-band remote management by ASMB9
Back Panel I/O Ports • 2 x USB 3.1 (1 x type C & 1 x type A)
• 4 x USB 3.2 Gen1 ports
• 2 x Gigabit LAN ports (RJ45)
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
