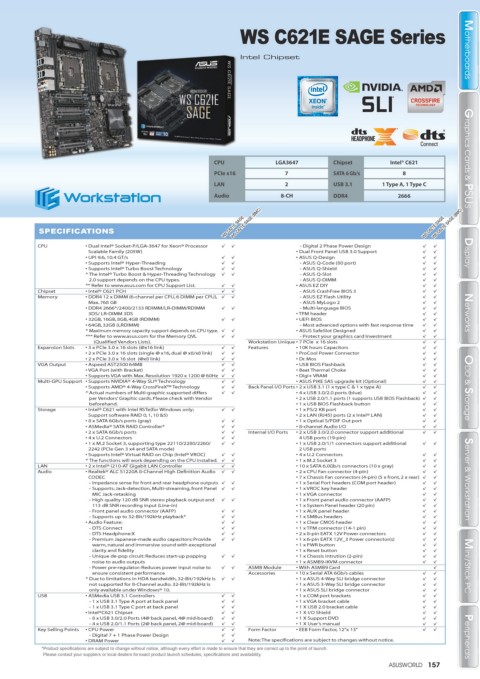

WS C621E SAGE Series

Intel Chipset Motherboards Motherboards

CPU LGA3647 Chipset Intel® C621 Graphics Cards & PSUS
PCIe x16 7 SATA 6 Gb/s 8
LAN 2 USB 3.1 1 Type A, 1 Type C
Audio 8-CH DDR4 2666
WS C621E SAGE (BMC)
WS C621E SAGE (BMC)
Graphics Cards & PSUS
WS C621E SAGE WS C621E SAGE
SPECIFICATIONS

CPU • Dual Intel® Socket-P/LGA-3647 for Xeon® Processor - Digital 2 Phase Power Design

Scalable Family (205W) • Dual Front Panel USB 3.0 Support Display

• UPI 9.6, 10.4 GT/s • ASUS Q-Design

• Supports Intel® Hyper-Threading - ASUS Q-Code (80 port)

• Supports Intel® Turbo Boost Technology - ASUS Q-Shield

Display

* The Intel® Turbo Boost & Hyper-Threading Technology - ASUS Q-Slot

2.0 support depends on the CPU types. - ASUS Q-DIMM
** Refer to www.asus.com for CPU Support List. • ASUS EZ DIY
Chipset • Intel® C621 PCH

Memory • DDR4 12 x DIMM (6-channel per CPU, 6 DIMM per CPU), - ASUS EZ Flash Utility

Max. 768 GB - ASUS MyLogo 2

• DDR4 2666*/2400/2133 RDIMM/LR-DIMM/RDIMM - Multi-language BIOS

3DS/ LR-DIMM 3DS • TPM header Networks

• 32GB, 16GB, 8GB, 4GB (RDIMM) • UEFI BIOS

• 64GB, 32GB (LRDIMM) - Most advanced options with fast response time

* Maximum memory capacity support depends on CPU type. • ASUS SafeSlot Designed
- ASUS CrashFree BIOS 3 Networks

*** Refer to www.asus.com for the Memory QVL - Protect your graphics card Investment
(Qualified Vendors Lists). Workstation Unique • 7 PCIe x 16 slots

Expansion Slots • 3 x PCIe 3.0 x 16 slots (@x16 link) Features • 10K hours Capacitors

• 2 x PCIe 3.0 x 16 slots (single @ x16, dual @ x8/x8 link)

• 2 x PCIe 3.0 x 16 slot (@x8 link) • Dr. Mos
VGA Output • Aspeed AST2500 64MB • USB BIOS Flashback
• VGA Port (with Bracket) • Beat Thermal Choke
• Supports VGA with Max. Resolution 1920 x 1200 @ 60Hz • Digi+ VRAM

Multi-GPU Support • Supports NVIDIA® 4-Way SLI® Technology • ASUS PIKE SAS upgrade kit (Optional)

• Supports AMD® 4-Way CrossFireX™ Technology Back Panel I/O Ports • 2 x USB 3.1 (1 x type C & 1 x type A) ODD & Storage
* Actual numbers of Multi-graphic supported differs • 4 x USB 3.0/2.0 ports (blue)

per Vendors’ Graphic cards. Please check with Vendor • 2 x USB 2.0/1.1 ports (1 supports USB BIOS Flashback)
beforehand. • 1 x USB BIOS Flashback button

Storage • Intel® C621 with Intel RSTe(for Windows only; • 1 x PS/2 KB port
Support software RAID 0, 1, 10 &5) • 2 x LAN (RJ45) ports (2 x Intel® LAN)
• 8 x SATA 6Gb/s ports (gray) • 1 x Optical S/PDIF Out port
• ProCool Power Connector ODD & Storage
• ASMedia® SATA RAID Controller* • 8-channel Audio I/O
• 2 x SATA 6Gb/s ports Internal I/O Ports • 2 x USB 3.0/2.0 connector support additional

• 4 x U.2 Connectors 4 USB ports (19-pin)

• 1 x M.2 Socket 3, supporting type 22110/2280/2260/ • 1 x USB 2.0/1/1 connectors support additional

2242 (PCIe Gen 3 x4 and SATA mode) 2 USB ports
• Supports Intel® Virtual RAID on Chip (Intel® VROC) • 4 x U.2 Connectors

* The functions will work depending on the CPU installed. • 1 x M.2 Socket 3

LAN • 2 x Intel® i210-AT Gigabit LAN Controller • 10 x SATA 6.0Gb/s connectors (10 x gray)

Audio • Realtek® ALC S1220A 8-Channel High Definition Audio • 2 x CPU Fan connector (4-pin)
CODEC • 7 x Chassis Fan connectors (4-pin) (5 x front, 2 x rear) Server & Workstation

- Impedance sense for front and rear headphone outputs • 1 x Serial Port headers (COM port header)
- Supports: Jack-detection, Multi-streaming, front Panel • 1 x VROC key header

MIC Jack-retasking • 1 x VGA connector

- High quality 120 dB SNR stereo playback output and • 1 x Front panel audio connector (AAFP)

113 dB SNR recording input (Line-in) • 1 x System Panel header (20 pin)

- Front panel audio connector (AAFP) • 1 x AUX panel header

- Supports up to 32-Bit/192kHz playback* • 1 x SMBus headers
• Audio Feature: • 1 x Clear CMOS header
Server & Workstation
- DTS Connect • 1 x TPM connector (14-1 pin)

- DTS Headphone:X • 2 x 8-pin EATX 12V Power connectors

- Premium Japanese-made audio capacitors: Provide • 1 x 6-pin EATX 12V_3 Power connector(s)
warm, natural and immersive sound with exceptional • 1 x PWR button
clarity and fidelity • 1 x Reset button
- Unique de-pop circuit: Reduces start-up popping • 1 x Chassis intrution (2-pin)

noise to audio outputs • 1 x ASMB9-iKVM connector

- Power pre-regulator: Reduces power input noise to ASMB Module • With ASMB9 Card Mini / Stick PC Mini / Stick PC
ensure consistent performance Accessories • 10 x Serial ATA 6Gb/s cables
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is • 1 x ASUS 4-Way SLI bridge connector

not supported for 8-Channel audio. 32-Bit/192kHz is • 1 x ASUS 3-Way SLI bridge connector
only available under Windows® 10. • 1 x ASUS SLI bridge connector
USB • ASMedia USB 3.1 Controllers • 1 x COM port brackets

- 1 x USB 3.1 Type A port at back panel • 1 x VGA bracket cable

- 1 x USB 3.1 Type C port at back panel • 1 X USB 2.0 bracket cable

• Intel®C621 Chipset • 1 X I/O Shield

- 8 x USB 3.0/2.0 Ports (4@ back panel, 4@ mid-board) • 1 X Support DVD

- 4 x USB 2.0/1.1 Ports (2@ back panel, 2@ mid-board) • 1 X User’s manual

Key Selling Points • CPU Power Form Factor • EEB Form Factor, 12”x 13”

- Digital 7 + 1 Phase Power Design Peripherals Peripherals

• DRAM Power Note: The specifications are subject to changes without notice.
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
