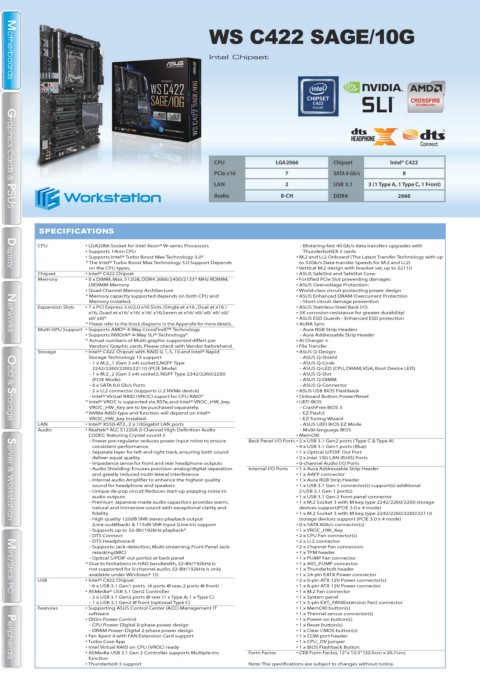

WS C422 SAGE/10G
Intel Chipset
Motherboards
Motherboards
CPU LGA2066 Chipset Intel® C422
PCIe x16 7 SATA 6 Gb/s 8
LAN 2 USB 3.1 3 (1 Type A, 1 Type C, 1 Front)
Audio 8-CH DDR4 2666
Graphics Cards & PSUS
Graphics Cards & PSUS
SPECIFICATIONS
CPU • LGA2066 Socket for Intel Xeon® W-series Processors - Blistering-fast 40 Gb/s data transfers upgrades with
• Supports 14nm CPU ThunderboltEX 3 cards
• Supports Intel® Turbo Boost Max Technology 3.0* • M.2 and U.2 Onboard (The Latest Transfer Technology with up
* The Intel® Turbo Boost Max Technology 3.0 Support Depends to 32Gb/s Data-transfer Speeds for M.2 and U.2)
on the CPU types. • Vertical M.2 design with bracket set, up to 22110
Display
Display
Chipset • Intel® C422 Chipset • ASUS SafeSlot and SafeSlot Core:
Memory • 8 x DIMM, Max. 512GB, DDR4 2666/2400/2133* MHz RDIMM, • Fortified PCIe Slot preventing damages
LRDIMM Memory • ASUS Overvoltage Protection:
• Quad Channel Memory Architecture • World-class circuit-protecting power design
* Memory capacity supported depends on both CPU and • ASUS Enhanced DRAM Overcurrent Protection
Memory installed. - Short circuit damage prevention
Expansion Slots • 7 x PCI Express 3.0/2.0 x16 Slots (Single at x16 , Dual at x16 / • ASUS Stainless-Steel Back I/O:
x16, Quad at x16/ x16/ x16/ x16,Seven at x16/ x8/ x8/ x8/ x8/ • 3X corrosion-resistance for greater durability!
x8/ x8)* • ASUS ESD Guards - Enhanced ESD protection
* Please refer to the block diagrams in the Appendix for more details. • AURA Sync
Multi-GPU Support • Supports AMD® 4-Way CrossFireX™ Technology - Aura RGB Strip Headers
Networks
Networks
• Supports NVIDIA® 4-Way SLI® Technology* - Aura Addressable Strip Header
* Actual numbers of Multi-graphic supported differs per • Ai Charger +
Vendors’ Graphic cards. Please check with Vendor beforehand. • File Transfer
Storage • Intel® C422 Chipset with RAID 0, 1, 5, 10 and Intel® Rapid • ASUS Q-Design:
Storage Technology 15 support - ASUS Q-Shield
- 1 x M.2_1 (Gen 3 x4) socket3,NGFF Type - ASUS Q-Code
2242/2260/2280/22110 (PCIE Mode) - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- 1 x M.2_2 (Gen 3 x4) socket3, NGFF Type 2242/2260/2280 - ASUS Q-Slot
(PCIE Mode) - ASUS Q-DIMM
- 8 x SATA 6.0 Gb/s Ports - ASUS Q-Connector
- 2 x U.2 connector (supports U.2 NVMe device) • ASUS USB BIOS Flashback
- Intel® Virtual RAID (VROC) suport for CPU RAID* • Onboard Button: Power/Reset
* Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. • UEFI BIOS
VROC_HW_Key are to be purchased separately. - CrashFree BIOS 3
* NVMe RAID type and function will depend on Intel® - EZ Flash3
VROC_HW_key installed. - EZ Tuning Wizard
ODD & Storage
ODD & Storage
LAN • Intel® X550-AT2 , 2 x 10Gigabit LAN ports - ASUS UEFI BIOS EZ Mode
Audio • Realtek® ALC S1220A 8-Channel High Definition Audio - Multi-language BIOS
CODEC featuring Crystal sound 3 • MemOK!
- Power pre-regulator reduces power input noise to ensure Back Panel I/O Ports • 2 x USB 3.1 Gen2 ports (Type C & Type A)
consistent performance. • 4 x USB 3.1 Gen1 ports (Blue)
- Separate layer for left and right track, ensuring both sound • 1 x Optical S/PDIF Out Port
deliver equal quality • 2 x Intel 10G LAN (RJ45) Ports
- Impedance sense for front and rear headphone outputs • 8-channel Audio I/O Ports
- Audio Shielding: Ensures precision analog/digital separation Internal I/O Ports • 1 x Aura Addressable Strip Header
and greatly reduced multi-lateral interference • 1 x AAFP connector
- Internal audio Amplifier to enhance the highest quality • 1 x Aura RGB Strip Header
sound for headphone and speakers • 1 x USB 3.1 Gen 1 connector(s) support(s) additional
- Unique de-pop circuit: Reduces start-up popping noise to 2 USB 3.1 Gen 1 port(s)
audio outputs • 1 x USB 3.1 Gen 2 front panel connector
- Premium Japanese-made audio capacitors provides warm, • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage
natural and immersive sound with exceptional clarity and devices support(PCIE 3.0 x 4 mode)
fidelity • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110
- High quality 120dB SNR stereo playback output storage devices support (PCIE 3.0 x 4 mode)
Server & Workstation
Server & Workstation
(Line-out@back) & 113dB SNR input (Line-in) support • 8 x SATA 6Gb/s connector(s)
- Supports up to 32-Bit/192kHz playback* • 1 x VROC_HW_Key
- DTS Connect • 2 x CPU Fan connector(s)
- DTS Headphone:X • 2 x U.2 connector
- Supports: Jack-detection, Multi-streaming, Front Panel Jack- • 2 x Channel Fan connectors
retasking(MIC) • 1 x TPM header
- Optical S/PDIF out port(s) at back panel • 1 x PUMP Fan connector
* Due to limitations in HAD bandwidth, 32-Bit/192kHz is • 1 x AIO_PUMP connector
not supported for 8-channel audio. 32-Bit/192kHz is only • 1 x Thunderbolt header
available under Windows® 10. • 1 x 24-pin EATX Power connector
USB • Intel® C422 Chipset • 2 x 8-pin ATX 12V Power connector(s)
- 6 x USB 3.1 Gen1 ports (4 ports @ rear, 2 ports @ front) • 1 x 6-pin ATX 12V Power connector
• ASMedia® USB 3.1 Gen2 Controller • 1 x M.2 Fan connector
Mini / Stick PC
Mini / Stick PC
- 2 x USB 3.1 Gen2 ports @ rear (1 x Type A; 1 x Type C) • 1 x System panel
- 1 x USB 3.1 Gen2 @ front (optional Type C) • 1 x 5-pin EXT_FAN(Extension Fan) connector
Features • Supporting ASUS Control Center (ACC) Management IT • 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• DIGI+ Power Control • 1 x Power-on button(s)
- CPU Power: Digital 8-phase power design • 1 x Reset button(s)
- DRAM Power: Digital 2-phase power design • 1 x Clear CMOS button(s)
• Fan Xpert 4 with FAN Extension Card support • 1 x COM port header
• Turbo Core App • 1 x CPU_OV jumper
• Intel Virtual RAID on CPU (VROC) ready • 1 x BIOS Flashback Button
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
• ASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins Form Factor • CEB Form Factor, 12”x 10.5” (30.5cm x 26.7cm)
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
function
Peripherals
software Peripherals
158
ASUSWORLD Note: The specifications are subject to changes without notice.
• Thunderbolt 3 support
