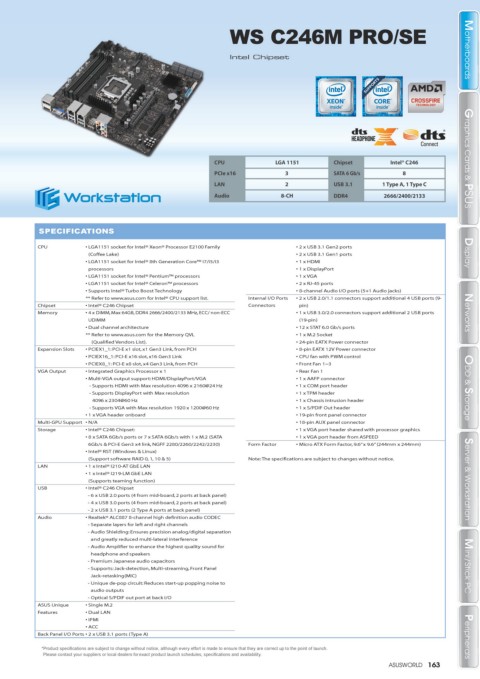

WS C246M PRO/SE

Intel Chipset Motherboards Motherboards

CPU LGA 1151 Chipset Intel® C246 Graphics Cards & PSUS
PCIe x16 3 SATA 6 Gb/s 8
LAN 2 USB 3.1 1 Type A, 1 Type C
Audio 8-CH DDR4 2666/2400/2133
Graphics Cards & PSUS

SPECIFICATIONS

CPU • LGA1151 socket for Intel® Xeon® Processor E2100 Family • 2 x USB 3.1 Gen2 ports

(Coffee Lake) • 2 x USB 3.1 Gen1 ports Display Display

• LGA1151 socket for Intel® 8th Generation Core™ i7/i5/i3 • 1 x HDMI
processors • 1 x DisplayPort
• LGA1151 socket for Intel® Pentium™ processors • 1 x VGA
• LGA1151 socket for Intel® Celeron™ processors • 2 x RJ-45 ports
• Supports Intel® Turbo Boost Technology • 8-channel Audio I/O ports (5+1 Audio jacks)

** Refer to www.asus.com for Intel® CPU support list. Internal I/O Ports • 2 x USB 2.0/1.1 connectors support additional 4 USB ports (9-

Chipset • Intel® C246 Chipset Connectors pin)

Memory • 4 x DIMM, Max 64GB, DDR4 2666/2400/2133 MHz, ECC/ non-ECC • 1 x USB 3.0/2.0 connectors support additional 2 USB ports Networks

UDIMM (19-pin)
• Dual channel architecture • 12 x STAT 6.0 Gb/s ports

Networks

** Refer to www.asus.com for the Memory QVL • 1 x M.2 Socket

(Qualified Vendors List). • 24-pin EATX Power connector

Expansion Slots • PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH • 8-pin EATX 12V Power connector

• PCIEX16_1: PCI-E x16 slot, x16 Gen3 Link • CPU fan with PWM control
• PCIEX8_1: PCI-E x8 slot, x4 Gen3 Link, from PCH • Front Fan 1~3

VGA Output • Integrated Graphics Processor x 1 • Rear Fan 1

• Multi-VGA output support: HDMI/DisplayPort/VGA • 1 x AAFP connector

- Supports HDMI with Max resolution 4096 x 2160@24 Hz • 1 x COM port header ODD & Storage ODD & Storage

- Supports DisplayPort with Max resolution • 1 x TPM header

4096 x 2304@60 Hz • 1 x Chassis intrusion header

- Supports VGA with Max resolution 1920 x 1200@60 Hz • 1 x S/PDIF Out header

• 1 x VGA header onboard • 19-pin front panel connector

Multi-GPU Support • N/A • 18-pin AUX panel connector

Storage • Intel® C246 Chipset: • 1 x VGA port header shared with processor graphics

• 8 x SATA 6Gb/s ports or 7 x SATA 6Gb/s with 1 x M.2 (SATA • 1 x VGA port header from ASPEED

6Gb/s & PCI-E Gen3 x4 link, NGFF 2280/2260/2242/2230) Form Factor • Micro ATX Form Factor, 9.6” x 9.6” (244mm x 244mm)

• Intel® RST (Windows & Linux)

(Support software RAID 0, 1, 10 & 5) Note: The specifications are subject to changes without notice.
LAN • 1 x Intel® I210-AT GbE LAN
• 1 x Intel® I219-LM GbE LAN

(Supports teaming function) Server & Workstation Server & Workstation
USB • Intel® C246 Chipset
- 6 x USB 2.0 ports (4 from mid-board, 2 ports at back panel)

- 4 x USB 3.0 ports (4 from mid-board, 2 ports at back panel)

- 2 x USB 3.1 ports (2 Type A ports at back panel)

Audio • Realtek® ALC887 8-channel high definition audio CODEC

- Separate layers for left and right channels

- Audio Shielding: Ensures precision analog/digital separation

and greatly reduced multi-lateral interference

- Audio Amplifier to enhance the highest quality sound for

headphone and speakers
- Premium Japanese audio capacitors

- Supports: Jack-detection, Multi-streaming, Front Panel Mini / Stick PC Mini / Stick PC
Jack-retasking(MIC)

- Unique de-pop circuit: Reduces start-up popping noise to
audio outputs

- Optical S/PDIF out port at back I/O

ASUS Unique • Single M.2

Features • Dual LAN
• IPMI
• ACC
Back Panel I/O Ports • 2 x USB 3.1 ports (Type A) Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
ASUSWORLD 163
