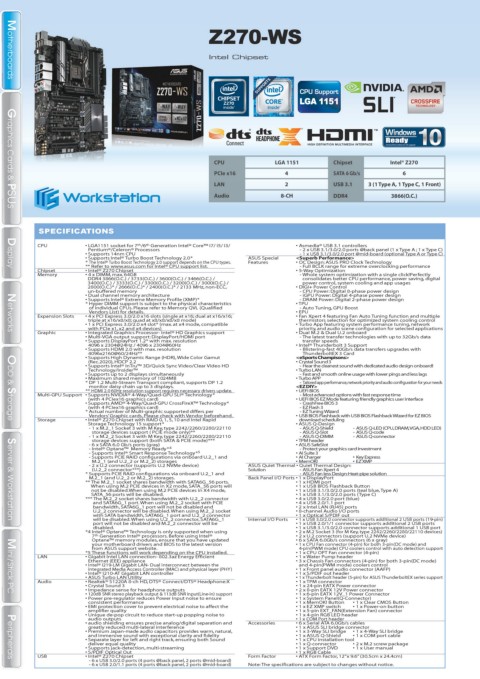

Z270-WS

Intel Chipset

Motherboards
Motherboards

CPU LGA 1151 Chipset Intel® Z270
PCIe x16 4 SATA 6 Gb/s 6
LAN 2 USB 3.1 3 (1 Type A, 1 Type C, 1 Front)
Audio 8-CH DDR4 3866(O.C.)
Graphics Cards & PSUS
Graphics Cards & PSUS
SPECIFICATIONS

CPU • LGA1151 socket for 7 th /6 th Generation Intel® Core™ i7/ i5/ i3/ • Asmedia® USB 3.1 controllers

Pentium®/Celeron® Processors - 2 x USB 3.1/3.0/2.0 ports @back panel (1 x Type A ; 1 x Type C)

• Supports 14nm CPU - 1 x USB 3.1/3.0/2.0 port @mid-board (optional Type A or Type C)

• Supports Intel® Turbo Boost Technology 2.0 * ASUS Special <Superb Performance>

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Features • OC Design: ASUS PRO Clock Technology

** Refer to www.asus.com for Intel® CPU support list. - Full BCLK range for extreme overclocking performance

Display
Display
Chipset • Intel® Z270 Chipset • 5-Way Optimization

Memory • 4 x DIMM, max. 64GB - Whole system optimization with a single click!Perfectly
DDR4 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / consolidates better CPU performance, power saving, digital
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / power control, system cooling and app usages

2800(O.C.)* / 2666(O.C.)* / 2400(O.C.)* / 2133 MHz, non-ECC, • DIGI+ Power Control
un-buffered memory - CPU Power: Digital 8-phase power design
• Dual channel memory architecture - iGPU Power: Digital 4-phase power design

• Supports Intel® Extreme Memory Profile (XMP)* - DRAM Power: Digital 2-phase power design

* Hyper DIMM support is subject to the physical characteristics • TPU

of individual CPUs. Please refer to Memory QVL (Qualified - Auto Tuning, GPU Boost

Vendors List) for details. • EPU

Expansion Slots • 4 x PCI Express 3.0/2.0 x16 slots (single at x16; dual at x16/x16; • Fan Xpert 4 featuring Fan Auto Tuning function and multiple

triple at x16/x8/x8; quad at x8/x8/x8/x8 mode) thermistors selection for optimized system cooling control

• 1 x PCI Express 3.0/2.0 x4 slot* (max. at x4 mode, compatible • Turbo App featuring system performance tuning, network

with PCIe x1, x2 and x4 devices) priority, and audio scene configuration for selected applications

Graphic • Integrated Graphics Processor- Intel® HD Graphics support • Dual M.2 & Dual U.2 onboard

Networks
Networks

• Multi-VGA output support: DisplayPort/HDMI port - The latest transfer technologies with up to 32Gb/s data

• Supports DisplayPort 1.2* with max. resolution transfer speeds

4096 x 2304@24Hz / 4096 x 2304@60Hz • Intel® Thunderbolt 3 Support

• Supports HDMI 2.0 with max. resolution - Blistering-fast 40Gb/s data transfers upgrades with
4096x2160@60/24Hz** ThunderboltEX 3 Card

• Supports High Dynamic Range (HDR), Wide Color Gamut <eSports Champisons>
(Rec.2020), HDCP 2.2 • Crystal Sound 3

• Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD - Hear the cleanest sound with dedicated audio design onboard!
Technology/Insider™ • Turbo LAN

• Supports up to 2 displays simultaneously - Fast and smooth online usage with lower pings and less lags
• Maximum shared memory of 1024MB • Turbo APP

* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 - Tailored app performance, network priority and audio conifrguration for your needs
monitor daisy chain up to 3 displays. <EZ DIY>
** HDMI 2.0 60Hz resolution support requires necessary drivers update. • UEFI BIOS
Multi-GPU Support • Supports NVIDIA® 4-Way/Quad-GPU SLI® Technology * - Most advanced options with fast response time

(with 4 PCIex16 graphics card) • UEFI BIOS EZ Mode featuring friendly graphics user interface

• Supports AMD® 4-Way/Quad-GPU CrossFireX™ Technology * - CrashFree BIOS 3

(with 4 PCIex16 graphics card) - EZ Flash 3

* Actual number of Multi-graphic supported differs per - EZ Tuning Wizard

Vendors’ Graphic cards. Please check with Vendor beforehand. • USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS

Storage • Intel® Z270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid download scheduling
ODD & Storage
ODD & Storage
Storage Technology 15 support * • ASUS Q-Design

- 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110 - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, HDD LED)

storage devices support ( PCIE mode only)** - ASUS Q-Slot - ASUS Q-code

- 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 - ASUS Q-DIMM - ASUS Q-connector

storage devices support (both SATA & PCIE mode)*** • TPM header

- 6 x SATA 6.0 Gb/s ports (gray) • ASUS SafeSlot

- Intel® Optane™ Memory Ready * 4 - Protect your graphics card Investment

- Supports Intel® Smart Response Technology * 5 • AI Suite 3

- Supports PCIE RAID configurations via onboard U.2_1 and • AI Charger • Key Express
M.2_1 (and U.2_2 or M.2_2) storages • MemOK! • EZ XMP

- 2 x U.2 connector (supports U.2 NVMe device) ASUS Quiet Thermal • Quiet Thermal Design:

(U.2_2 connector***) Solution - ASUS Fan Xpert 4

* Supports PCIE RAID configurations via onboard U.2_1 and - ASUS Fan less Design: Heat-pipe solution
M.2_1 (and U.2_2 or M.2_2) storages. Back Panel I/O Ports • 1 x DisplayPort
** The M.2_1 socket shares bandwidth with SATA6G_56 ports. • 1 x HDMI port
When using M.2 PCIE devices in X2 mode, SATA_56 ports will • 1 x USB BIOS Flashback Button
not be disabled.When using M.2 PCIE devices in X4 mode, • 1 x USB 3.1/3.0/2.0 ports (teal blue, Type A)
SATA_56 ports will be disabled. • 1 x USB 3.1/3.0/2.0 ports (Type C)
*** The M.2_2 socket shares bandwidth with U.2_2 connector • 4 x USB 3.0/2.0 port (blue)
and SATA6G_1 port. When using M.2_2 socket with PCIE • 4 x USB 2.0/1.1 port
bandwidth, SATA6G_1 port will not be disabled and • 2 x Intel LAN (RJ45) ports
U.2_2 connector will be disabled. When using M.2_2 socket • 8-channel Audio I/O ports
with SATA bandwidth, SATA6G_1 port and U.2_2 connector • 1 x Optical S/PDIF out
will be disabled. When using U.2_2 connector, SATA6G_1 Internal I/O Ports • 1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin)
Server & Workstation
Server & Workstation
port will not be disabled and M.2_2 connector will be • 1 x USB 2.0/1/1 connector supports additional 2 USB ports
disabled. • 1 x USB 3.1/3.0/2.0 connector supports additional 1 USB port

*4 Intel® Optane™ Technology is only supported when using • 2 x M.2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices)

7 th Generation Intel® processors. Before using Intel® • 2 x U.2 connectors (support U.2 NVMe device)
Optane™ memory modules, ensure that you have updated • 6 x SATA 6.0Gb/s connectors (6 x gray)
your motherboard drivers and BIOS to the latest version • 1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and
from ASUS support website. 4-pin(PWM mode) CPU coolers control with auto detection support
*5 These functions will work depending on the CPU installed. • 1 x CPU OPT Fan connector (4-pin)

LAN • Gigabit Intel LAN connection- 802.3az Energy Efficient • 1 x Water Pump header
Ethernet (EEE) appliance • 3 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode)
• Intel® I219-LM Gigabit LAN- Dual interconnect between the and 4-pin(PWM mode) coolers control

integrated Media Access Controller (MAC) and physical layer (PHY) • 1 x Front panel audio connector (AAFP)

• Intel® I210-AT Gigabit LAN controller • 1 x S/PDIF out header

• ASUS Turbo LAN Utility • 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support

Audio • Realtek® S1220A 8-ch HD, DTS® Connect/DTS® Headphone:X • 1 x TPM connector

• Crystal Sound 3 • 1 x 24-pin EATX Power connector

• Impedance sense for headphone outputs • 2 x 8-pin EATX 12V Power connector

• 120dB SNR stereo playback output & 113dB SNR input (Line-in) support • 1 x 6-pin EATX 12V_1 Power Connector
Mini / Stick PC
Mini / Stick PC

• Power pre-regulator reduces Power input noise to ensure • 1 x System Panel(Q-Connector)
consistent performance • 1 x MemOK! Button • 1 x Clear CMOS Button

• EMI protection cover to prevent electrical noise to affect the • 1 x EZ XMP switch • 1 x Power-on button
amplifier quality • 1 x 5-pin EXT_FAN(Extension Fan) connector

• Unique de-pop circuit to reduce start-up popping noise to • 1 x 4-pin RGB LED header

audio outputs • 1 x COM Port header

• audio shielding ensures precise analog/digital separation and Accessories • 6 x Serial ATA 6.0Gb/s cables

greatly reduced multi-lateral interference • 1 x ASUS SLI bridge connector

• Premium Japan-made audio capacitors provides warm, natural, • 1 x 3-Way SLI bridge • 1 x 4-Way SLI bridge

and immersive sound with exceptional clarity and fidelity • 1 x ASUS Q-Shield • 1 x COM port cable

• Separate layer for left and right track, ensuring both Sound • 1 x CPU installation tool
deliver equal quality • 1 x Q-connector • 2 x M.2 screw package
• Supports jack-detection, multi-streaming • 1 x Support DVD • 1 x User manual

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.

• S/PDIF Optical Out • 1 x RGB Cable

Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
USB • Intel® Z270 Chipset Form Factor • ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)

- 6 x USB 3.0/2.0 ports (4 ports @back panel, 2 ports @mid-board)

Peripherals
Peripherals
164
- 6 x USB 2.0/1.1 ports (4 ports @back panel, 2 ports @mid-board)
ASUSWORLD Note: The specifications are subject to changes without notice.
