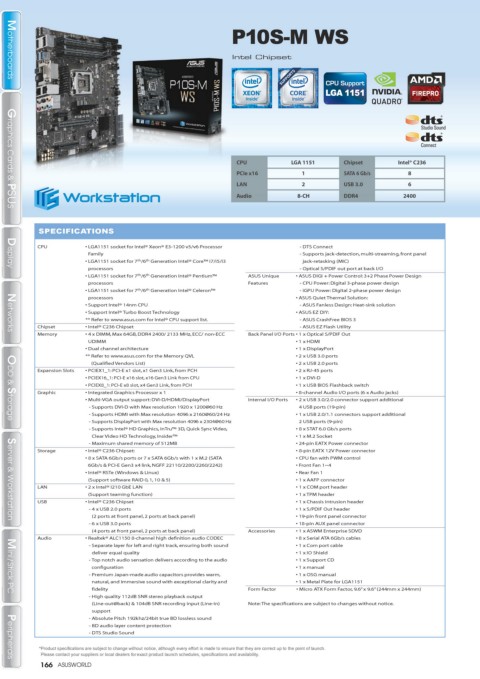

P10S-M WS

Intel Chipset

Motherboards
Motherboards

CPU LGA 1151 Chipset Intel® C236
PCIe x16 1 SATA 6 Gb/s 8
LAN 2 USB 3.0 6
Audio 8-CH DDR4 2400
Graphics Cards & PSUS
Graphics Cards & PSUS
SPECIFICATIONS

CPU • LGA1151 socket for Intel® Xeon® E3-1200 v5/v6 Processor - DTS Connect
Family Display - Supports jack-detection, multi-streaming, front panel

• LGA1151 socket for 7 th /6 th Generation Intel® Core™ i7/i5/i3 jack-retasking (MIC)

processors - Optical S/PDIF out port at back I/O

Display

• LGA1151 socket for 7 th /6 th Generation Intel® Pentium™ ASUS Unique • ASUS DIGI + Power Control: 3+2 Phase Power Design

processors Features - CPU Power: Digital 3-phase power design

• LGA1151 socket for 7 th /6 th Generation Intel® Celeron™ - iGPU Power: Digital 2-phase power design

processors • ASUS Quiet Thermal Solution:
• Support Intel® 14nm CPU - ASUS Fanless Design: Heat-sink solution

• Support Intel® Turbo Boost Technology • ASUS EZ DIY:

** Refer to www.asus.com for Intel® CPU support list. - ASUS CrashFree BIOS 3

Chipset • Intel® C236 Chipset - ASUS EZ Flash Utility

Memory • 4 x DIMM, Max 64GB, DDR4 2400/ 2133 MHz, ECC/ non-ECC Back Panel I/O Ports • 1 x Optical S/PDIF Out
Networks
Networks

UDIMM • 1 x HDMI
• Dual channel architecture • 1 x DisplayPort
** Refer to www.asus.com for the Memory QVL • 2 x USB 3.0 ports
(Qualified Vendors List) • 2 x USB 2.0 ports
Expansion Slots • PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH • 2 x RJ-45 ports

• PCIEX16_1: PCI-E x16 slot, x16 Gen3 Link from CPU • 1 x DVI-D
• PCIEX8_1: PCI-E x8 slot, x4 Gen3 Link, from PCH • 1 x USB BIOS Flashback switch

Graphic • Integrated Graphics Processor x 1 • 8-channel Audio I/O ports (6 x Audio jacks)

• Multi-VGA output support: DVI-D/HDMI/DisplayPort Internal I/O Ports • 2 x USB 3.0/2.0 connector support additional

- Supports DVI-D with Max resolution 1920 x 1200@60 Hz 4 USB ports (19-pin)

- Supports HDMI with Max resolution 4096 x 2160@60/24 Hz • 1 x USB 2.0/1.1 connectors support additional

- Supports DisplayPort with Max resolution 4096 x 2304@60 Hz 2 USB ports (9-pin)
ODD & Storage
ODD & Storage

- Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, • 8 x STAT 6.0 Gb/s ports

Clear Video HD Technology, Insider™ • 1 x M.2 Socket

- Maximum shared memory of 512MB • 24-pin EATX Power connector

Storage • Intel® C236 Chipset: • 8-pin EATX 12V Power connector

• 8 x SATA 6Gb/s ports or 7 x SATA 6Gb/s with 1 x M.2 (SATA • CPU fan with PWM control

6Gb/s & PCI-E Gen3 x4 link, NGFF 22110/2280/2260/2242) • Front Fan 1~4
• Intel® RSTe (Windows & Linux) • Rear Fan 1

(Support software RAID 0, 1, 10 & 5) • 1 x AAFP connector
LAN • 2 x Intel® I210 GbE LAN • 1 x COM port header

(Support teaming function) • 1 x TPM header

USB • Intel® C236 Chipset • 1 x Chassis intrusion header

- 4 x USB 2.0 ports • 1 x S/PDIF Out header

(2 ports at front panel, 2 ports at back panel) • 19-pin front panel connector
Server & Workstation
Server & Workstation

- 6 x USB 3.0 ports • 18-pin AUX panel connector

(4 ports at front panel, 2 ports at back panel) Accessories • 1 x ASWM Enterprise SDVD

Audio • Realtek® ALC1150 8-channel high definition audio CODEC • 8 x Serial ATA 6Gb/s cables

- Separate layer for left and right track, ensuring both sound • 1 x Com port cable

deliver equal quality • 1 x IO Shield
- Top notch audio sensation delivers according to the audio • 1 x Support CD

configuration • 1 x manual
- Premium Japan-made audio capacitors provides warm, • 1 x OSG manual

natural, and immersive sound with exceptional clarity and • 1 x Metal Plate for LGA1151
fidelity Form Factor • Micro ATX Form Factor, 9.6” x 9.6” (244mm x 244mm)
Mini / Stick PC
Mini / Stick PC
- High quality 112dB SNR stereo playback output

(Line-out@back) & 104dB SNR recording input (Line-in) Note: The specifications are subject to changes without notice.
support

- Absolute Pitch 192khz/24bit true BD lossless sound

- BD audio layer content protection

- DTS Studio Sound
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
