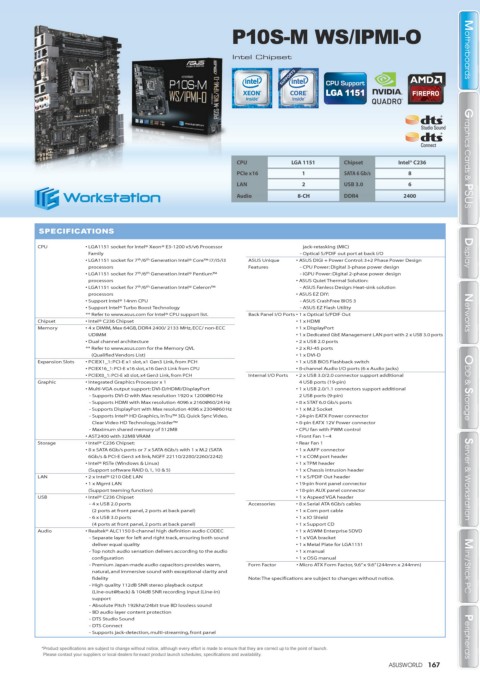

P10S-M WS/IPMI-O

Intel Chipset Motherboards Motherboards

CPU LGA 1151 Chipset Intel® C236 Graphics Cards & PSUS
PCIe x16 1 SATA 6 Gb/s 8
LAN 2 USB 3.0 6
Audio 8-CH DDR4 2400
Graphics Cards & PSUS

SPECIFICATIONS

CPU • LGA1151 socket for Intel® Xeon® E3-1200 v5/v6 Processor jack-retasking (MIC)
Family - Optical S/PDIF out port at back I/O Display

• LGA1151 socket for 7 th /6 th Generation Intel® Core™ i7/i5/i3 ASUS Unique • ASUS DIGI + Power Control: 3+2 Phase Power Design

processors Features - CPU Power: Digital 3-phase power design
Display

• LGA1151 socket for 7 th /6 th Generation Intel® Pentium™ - iGPU Power: Digital 2-phase power design

processors • ASUS Quiet Thermal Solution:
• LGA1151 socket for 7 th /6 th Generation Intel® Celeron™ - ASUS Fanless Design: Heat-sink solution

processors • ASUS EZ DIY:

• Support Intel® 14nm CPU - ASUS CrashFree BIOS 3

• Support Intel® Turbo Boost Technology - ASUS EZ Flash Utility

** Refer to www.asus.com for Intel® CPU support list. Back Panel I/O Ports • 1 x Optical S/PDIF Out Networks Networks
Chipset • Intel® C236 Chipset • 1 x HDMI
Memory • 4 x DIMM, Max 64GB, DDR4 2400/ 2133 MHz, ECC/ non-ECC • 1 x DisplayPort

UDIMM • 1 x Dedicated GbE Management LAN port with 2 x USB 3.0 ports
• Dual channel architecture • 2 x USB 2.0 ports
** Refer to www.asus.com for the Memory QVL • 2 x RJ-45 ports
(Qualified Vendors List) • 1 x DVI-D
Expansion Slots • PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH • 1 x USB BIOS Flashback switch

• PCIEX16_1: PCI-E x16 slot, x16 Gen3 Link from CPU • 8-channel Audio I/O ports (6 x Audio jacks)

• PCIEX8_1: PCI-E x8 slot, x4 Gen3 Link, from PCH Internal I/O Ports • 2 x USB 3.0/2.0 connector support additional

Graphic • Integrated Graphics Processor x 1 4 USB ports (19-pin)

• Multi-VGA output support: DVI-D/HDMI/DisplayPort • 1 x USB 2.0/1.1 connectors support additional ODD & Storage

- Supports DVI-D with Max resolution 1920 x 1200@60 Hz 2 USB ports (9-pin)

- Supports HDMI with Max resolution 4096 x 2160@60/24 Hz • 8 x STAT 6.0 Gb/s ports

- Supports DisplayPort with Max resolution 4096 x 2304@60 Hz • 1 x M.2 Socket

- Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, • 24-pin EATX Power connector

Clear Video HD Technology, Insider™ • 8-pin EATX 12V Power connector
ODD & Storage

- Maximum shared memory of 512MB • CPU fan with PWM control

• AST2400 with 32MB VRAM • Front Fan 1~4
Storage • Intel® C236 Chipset: • Rear Fan 1

• 8 x SATA 6Gb/s ports or 7 x SATA 6Gb/s with 1 x M.2 (SATA • 1 x AAFP connector

6Gb/s & PCI-E Gen3 x4 link, NGFF 22110/2280/2260/2242) • 1 x COM port header

• Intel® RSTe (Windows & Linux) • 1 x TPM header

(Support software RAID 0, 1, 10 & 5) • 1 x Chassis intrusion header

LAN • 2 x Intel® I210 GbE LAN • 1 x S/PDIF Out header Server & Workstation Server & Workstation

• 1 x Mgmt LAN • 19-pin front panel connector

(Support teaming function) • 18-pin AUX panel connector

USB • Intel® C236 Chipset • 1 x Aspeed VGA header

- 4 x USB 2.0 ports Accessories • 8 x Serial ATA 6Gb/s cables

(2 ports at front panel, 2 ports at back panel) • 1 x Com port cable

- 6 x USB 3.0 ports • 1 x IO Shield

(4 ports at front panel, 2 ports at back panel) • 1 x Support CD
Audio • Realtek® ALC1150 8-channel high definition audio CODEC • 1 x ASWM Enterprise SDVD

- Separate layer for left and right track, ensuring both sound • 1 x VGA bracket

deliver equal quality • 1 x Metal Plate for LGA1151

- Top notch audio sensation delivers according to the audio • 1 x manual
configuration • 1 x OSG manual

- Premium Japan-made audio capacitors provides warm, Form Factor • Micro ATX Form Factor, 9.6” x 9.6” (244mm x 244mm) Mini / Stick PC
natural, and immersive sound with exceptional clarity and
fidelity Note: The specifications are subject to changes without notice.

- High quality 112dB SNR stereo playback output
(Line-out@back) & 104dB SNR recording input (Line-in)
Mini / Stick PC
support
- Absolute Pitch 192khz/24bit true BD lossless sound

- BD audio layer content protection

- DTS Studio Sound
- DTS Connect

- Supports jack-detection, multi-streaming, front panel Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
ASUSWORLD 167
