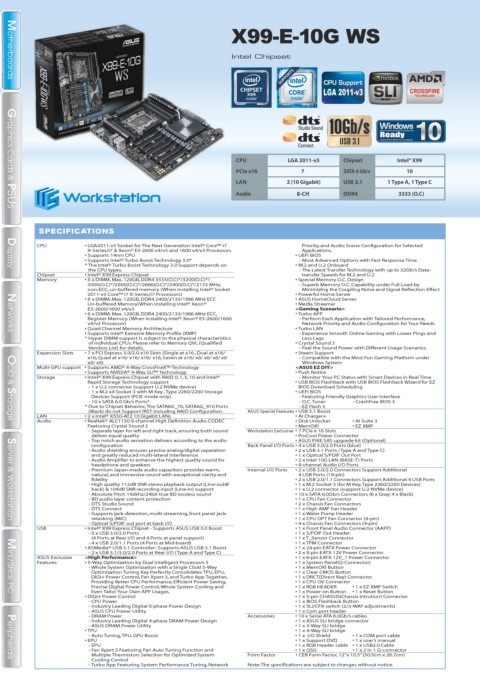

Page 170 - ASUS_WORLD_134_ebook

X99-E-10G WS

Intel Chipset

Motherboards
Motherboards

CPU LGA 2011-v3 Chipset Intel® X99
PCIe x16 7 SATA 6 Gb/s 10
LAN 2 (10 Gigabit) USB 3.1 1 Type A, 1 Type C

Audio 8-CH DDR4 3333 (O.C)
