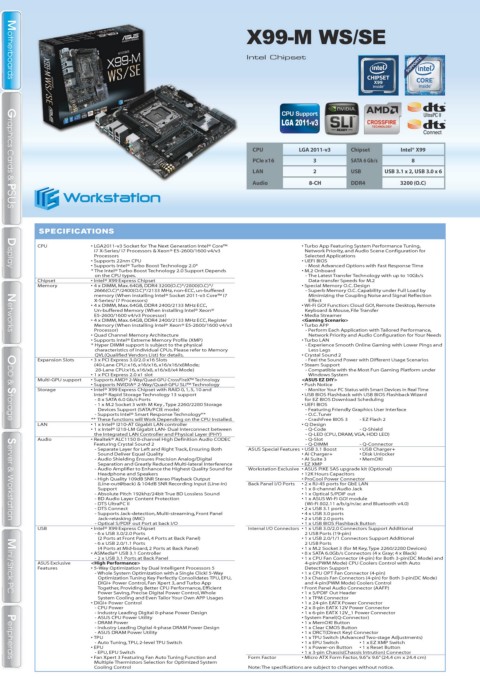

X99-M WS/SE

Intel Chipset

Motherboards
Motherboards

CPU LGA 2011-v3 Chipset Intel® X99
PCIe x16 3 SATA 6 Gb/s 8
LAN 2 USB USB 3.1 x 2, USB 3.0 x 6
Audio 8-CH DDR4 3200 (O.C)

Graphics Cards & PSUS
Graphics Cards & PSUS
SPECIFICATIONS

CPU • LGA2011-v3 Socket for The Next Generation Intel® Core™ • Turbo App Featuring System Performance Tuning,
i7 X-Series/ i7 Processors & Xeon® E5-2600/1600 v4/v3 Network Priority, and Audio Scene Configuration for
Processors Selected Applications
• Supports 22nm CPU • UEFI BIOS
• Supports Intel® Turbo Boost Technology 2.0* - Most Advanced Options with Fast Response Time
Display
Display
* The Intel® Turbo Boost Technology 2.0 Support Depends • M.2 Onboard
on the CPU types. - The Latest Transfer Technology with up to 10Gb/s
Chipset • Intel® X99 Express Chipset Data-transfer Speeds for M.2
Memory • 4 x DIMM, Max. 64GB, DDR4 3200(O.C)*/2800(O.C)*/ • Special Memory O.C. Design

2666(O.C)*/2400(O.C)*/2133 MHz, non-ECC, un-buffered - Superb Memory O.C. Capability under Full Load by
memory (When installing Intel® Socket 2011-v3 Core™ i7 Minimizing the Coupling Noise and Signal Reflection
X-Series/ i7 Processors) Effect
• 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, • Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote
Un-buffered Memory (When installing Intel® Xeon® Keyboard & Mouse, File Transfer
E5-2600/1600 v4/v3 Processor) • Media Streamer
• 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, Register <Gaming Scenario>
Memory (When installing Intel® Xeon® E5-2600/1600 v4/v3 • Turbo APP
Processor) - Perform Each Application with Tailored Performance,
Networks
Networks
• Quad Channel Memory Architecture Network Priority and Audio Configuration for Your Needs
• Supports Intel® Extreme Memory Profile (XMP) • Turbo LAN
* Hyper DIMM support is subject to the physical - Experience Smooth Online Gaming with Lower Pings and
characteristics of individual CPUs. Please refer to Memory Less Lags
QVL(Qualified Vendors List) for details. • Crystal Sound 2
Expansion Slots • 3 x PCI Express 3.0/2.0 x16 Slots - Feel the Sound Power with Different Usage Scenarios
(40-Lane CPU: x16, x16/x16, x16/x16/x8Mode; • Steam Support
28-Lane CPU:x16, x16/x8, x16/x8/x4 Mode) - Compatible with the Most Fun Gaming Platform under
• 1 x PCI Express 2.0 x1 slot Windows System
Multi-GPU support • Supports AMD® 2-Way/Quad-GPU CrossFireX™ Technology <ASUS EZ DIY>
• Supports NVIDIA® 2-Way/Quad-GPU SLI™ Technology • Push Notice
Storage • Intel® X99 Express Chipset with RAID 0, 1, 5, 10 and - Monitor Your PC Status with Smart Devices in Real Time
Intel® Rapid Storage Technology 13 support • USB BIOS Flashback with USB BIOS Flashback Wizard
- 8 x SATA 6.0 Gb/s Ports for EZ BIOS Download Scheduling
- 1 x M.2 Socket 3 with M Key , Type 2260/2280 Storage • UEFI BIOS
Devices Support (SATA/PCIE mode) - Featuring Friendly Graphics User Interface
- Supports Intel® Smart Response Technology** - O.C. Tuner
** These functions will Work Depending on the CPU Installed. - CrashFree BIOS 3 - EZ Flash 2
ODD & Storage
ODD & Storage
LAN • 1 x Intel® I210-AT Gigabit LAN controller • Q Design
• 1 x Intel® I218-LM Gigabit LAN- Dual Interconnect between - Q-Code - Q-Shield
the Integrated LAN Controller and Physical Layer (PHY) - Q-LED (CPU, DRAM, VGA, HDD LED)
Audio • Realtek® ALC1150 8-channel High Definition Audio CODEC - Q-Slot
Featuring Crystal Sound 2 - Q-DIMM - Q-Connector
- Separate Layer for Left and Right Track, Ensuring Both ASUS Special Features • USB 3.1 Boost • USB Charger+
Sound Deliver Equal Quality • Ai Charger+ • Disk Unlocker
- Audio Shielding Ensures Precision Analog/Digital • AI Suite 3 • MemOK!
Separation and Greatly Reduced Multi-lateral Interference • EZ XMP
- Audio Amplifier to Enhance the Highest Quality Sound for Workstation Exclusive • ASUS PIKE SAS upgrade kit (Optional)
Headphone and Speakers • 12K Hours Capacitors
- High Quality 109dB SNR Stereo Playback Output • ProCool Power Connector
(Line-out@back) & 104dB SNR Recording Input (Line-in) Back Panel I/O Ports • 2 x RJ-45 ports for GbE LAN
Support • 1 x 8-channel Audio Jack
- Absolute Pitch 192khz/24bit True BD Lossless Sound • 1 x Optical S/PDIF out
- BD Audio Layer Content Protection • 1 x ASUS Wi-Fi GO! module
- DTS UltraPC II (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0)
- DTS Connect • 2 x USB 3.1 ports
- Supports Jack-detection, Multi-streaming, Front Panel • 4 x USB 3.0 ports
Jack-retasking (MIC) • 2 x USB 2.0 ports
Server & Workstation
Server & Workstation
- Optical S/PDIF out Port at back I/O • 1 x USB BIOS Flashback Button
USB • Intel® X99 Express Chipset Internal I/O Connectors • 1 x USB 3.0/2.0 Connectors Support Additional
- 6 x USB 3.0/2.0 Ports 2 USB Ports (19-pin)
(2 Ports at Front Panel, 4 Ports at Back Panel) • 1 x USB 2.0/1/1 Connectors Support Additional
- 6 x USB 2.0/1.1 Ports 2 USB Ports
(4 Ports at Mid-board, 2 Ports at Back Panel) • 1 x M.2 Socket 3 (for M Key, Type 2260/2280 Devices)
• ASMedia® USB 3.1 Controller • 8 x SATA 6.0Gb/s Connectors (4 x Gray; 4 x Black)
- 2 x USB 3.1 Ports at Back Panel • 1 x CPU Fan Connector (4-pin) for Both 3-pin(DC Mode) and
ASUS Exclusive <High Performance> 4-pin(PWM Mode) CPU Coolers Control with Auto
Features • 5-Way Optimization by Dual Intelligent Processors 5 Detection Support
- Whole System Optimization with a Single Click! 5-Way • 1 x CPU OPT Fan Connector (4-pin)
Optimization Tuning Key Perfectly Consolidates TPU, EPU, • 3 x Chassis Fan Connectors (4-pin) for Both 3-pin(DC Mode)
DIGI+ Power Control, Fan Xpert 3, and Turbo App and 4-pin(PWM Mode) Coolers Control
Together, Providing Better CPU Performance, Efficient • Front Panel Audio Connector (AAFP)
Power Saving, Precise Digital Power Control, Whole • 1 x S/PDIF Out Header
Mini / Stick PC
Mini / Stick PC
System Cooling and Even Tailor Your Own APP Usages • 1 x TPM Connector
• DIGI+ Power Control • 1 x 24-pin EATX Power Connector
- CPU Power • 2 x 8-pin EATX 12V Power Connector
- Industry Leading Digital 8-phase Power Design • 1 x 6-pin EATX 12V_1 Power Connector
- ASUS CPU Power Utility • System Panel(Q-Connector)
- DRAM Power • 1 x MemOK! Button
- Industry Leading Digital 4-phase DRAM Power Design • 1 x Clear CMOS Button
- ASUS DRAM Power Utility • 1 x DRCT(Direct Key) Connector
• TPU Peripherals • 1 x TPU Switch (Advanced Two-stage Adjustments)
- Auto Tuning, TPU, 2-level TPU Switch • 1 x EPU Switch • 1 x EZ XMP Switch
• EPU • 1 x Power-on Button • 1 x Reset Button
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
- EPU, EPU Switch • 1 x 3-pin Chassis(Chassis Intrution) Connector
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
• Fan Xpert 3 Featuring Fan Auto Tuning Function and Form Factor • Micro ATX Form Factor, 9.6”x 9.6” (24.4 cm x 24.4 cm)
Peripherals
170
ASUSWORLD Multiple Thermistors Selection for Optimized System
Cooling Control Note: The specifications are subject to changes without notice.
